Throttle Adjustment | Bracket Assembly

Discussion in 'Motorized Bicycle General Discussion' started by reg454, Jun 23, 2009.

  1. reg454

    reg454 New Member

    Joined:
    Jan 11, 2009
    Messages:
    269
    Likes Received:
    0
    Link to video showing movement - YouTube - Motorized Bicycle Throttle Adjuster Bracket

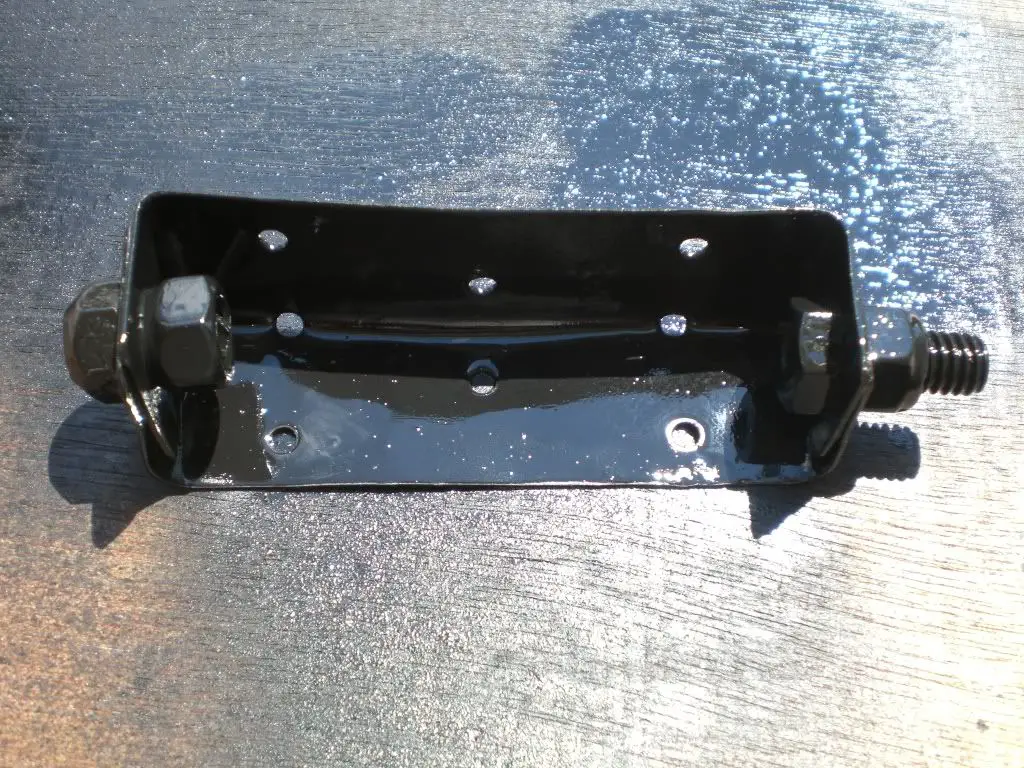

    I built this Throttle adjustment Bracket today after getting back from work it is going to help with all the slack it the line. Plus if my idle screw falls out i can adjust it from the bracket.
    [​IMG]

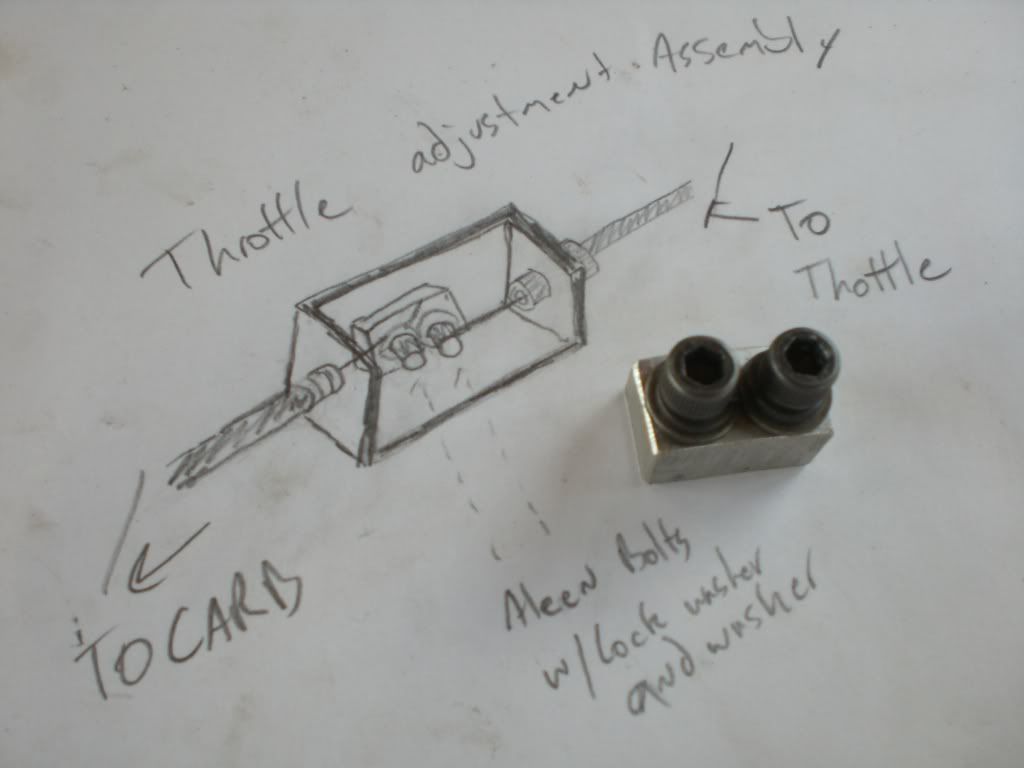

    I can mount it with 2 sheet metal screws directly in the frame of the bike. I will have to cut the cable casing to allow for play in the cable and adjustment, and cut the cable itself then I can use 2 allen bolts with lock washers and washers to secure the cable on the adapter I made to go with it. Also i drilled holes through the bolts on the bracket so the cable can go through it.Their is plenty of room inside the bracket for movement of the throttle cable. I made the whole setup in about 1.5 hours.
    [​IMG]

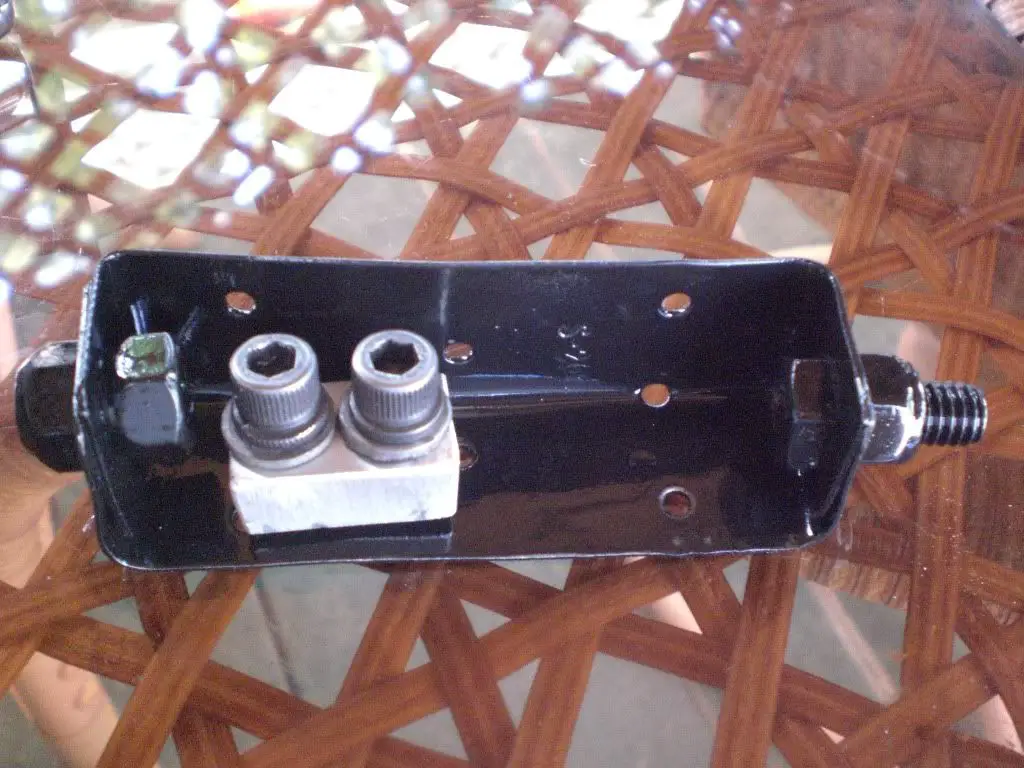

    I will probably make a better housing when I cut up some 1/8" sheet metal I have laying around but that is a project in it self.

    [​IMG]

    #1 reg454, Jun 23, 2009
    Last edited: Jun 23, 2009
  2. FileStyle

    FileStyle New Member

    Joined:
    May 27, 2008
    Messages:
    724
    Likes Received:
    1
    I dont get it! why do you need that?

  3. Cabinfever1977

    Cabinfever1977 New Member

    Joined:
    Mar 23, 2009
    Messages:
    2,290
    Likes Received:
    1
    some of the new engines kits already come with a simular bracket like that on the throttle cable.

    and its so you can adjust the length of your throttle cable.
