Thread for alternative engines

Discussion in 'DIY Home Built Motorized Bicycle (non kit)' started by Ludwig II, Oct 1, 2014.

  1. Ludwig II

    Ludwig II Active Member

    Joined:
    Jul 17, 2012
    Messages:
    4,602
    Likes Received:
    9
    I'm starting this for people who either don't want a kit engine, or who want to experiment with other engines.

    I've been looking around, inspired by mistaking a naked Bike Bug for a concrete /rescue cutter, at cutters like that.

    Most easily available engines are bulky along the like of the crankshaft, but some of the disc cutters aren't. This means a drive roller direct to a wheel can be added in place of the cutter, or a sprocket or pulley can be fitted. They're also usually above 50cc, powerful, and engineered for long reliable service under conditions of poor care or maintenance. My Mk2 may well get one of these.

    I also found there are petrol driven angle grinders with 90 degree bevel drive gearboxes. Although you'd have to work out your own drive from the disc mount, at least it can be a handy unit to experiment with in different locations. The down side, if it is one, is the low cc of the engine, but since they appear to have a standard 4 bolt mounting pattern, a bigger engine is possible.

  2. lowracer

    lowracer New Member

    Joined:
    Oct 17, 2008
    Messages:
    1,319
    Likes Received:
    1
    Ludwig,
    I'm watching this thread!
    -Low-

  3. Ludwig II

    Ludwig II Active Member

    Joined:
    Jul 17, 2012
    Messages:
    4,602
    Likes Received:
    9
    Well, I've taken the plunge with a minimoto and 3:1 box, but we're bitten by the bug, and kits are too easy.

    Tillers/cultivators often have a 90 degree reduction box, and I've seen numbers like 90:1 stated. That might just be a little too low geared even for me.

    #3 Ludwig II, Oct 1, 2014
    Last edited: Oct 1, 2014
  4. silverbear

    silverbear The Boy Who Never Grew Up

    Joined:
    Jul 9, 2009
    Messages:
    8,172
    Likes Received:
    1
    Different engines from different eras keep it interesting. Signing on...
    SB

  5. Ludwig II

    Ludwig II Active Member

    Joined:
    Jul 17, 2012
    Messages:
    4,602
    Likes Received:
    9
  6. cannonball2

    cannonball2 Active Member

    Joined:
    Oct 28, 2010
    Messages:
    3,472
    Likes Received:
    0
    The twin engine kart reminded me of the twin and even triple Mac and West Bend engine karts of my youth. Direct drive even! Chainsaw derived of course!
    Im kicking around a build based on a twin R/C engine. They have become relatively cheap and pretty reliable in the last few years.

  7. Ludwig II

    Ludwig II Active Member

    Joined:
    Jul 17, 2012
    Messages:
    4,602
    Likes Received:
    9
    In searching for info on the Norman engines, I ran across the Stuart Turners, and also an odd one I'd never known about. Royal Enfield made a flat twin 350 2 stroke genny engine.

    Surely, in all the production of America, there must have been a flat twin 4 stroke by somebody?

  8. Ludwig II

    Ludwig II Active Member

    Joined:
    Jul 17, 2012
    Messages:
    4,602
    Likes Received:
    9
    Interesting sideshift, Onan did a widely available flat twin.

    [​IMG]

  9. Ludwig II

    Ludwig II Active Member

    Joined:
    Jul 17, 2012
    Messages:
    4,602
    Likes Received:
    9

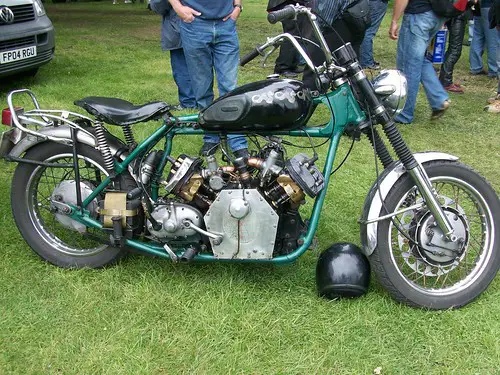

    The "Albion", by a character called Bodger. Steel plate crankcases are just one solution to the problems in his way, but it works. I don't have those skills, but you don't need to be constrained by convention, when what you're doing is so far from mainstream anyway.
    [​IMG]

  10. msrfan

    msrfan Active Member

    Joined:
    Sep 17, 2010
    Messages:
    1,671
    Likes Received:
    1
    Good thread Ludwig. I like alternate engines also. This 24'' Schwinn has a Stihl 4hp backpack blower motor which was a challenge to mount, but shows promise. It is a 4Mix engine that is a 4 stroke running on mixed fuel. The Comet drive didn't work so I installed a Cobra gokart clutch and will be experimenting with a larger carb soon.


    [​IMG]


    [​IMG]


    I also have some water pump motors that are really compact and deliver 3-4 hp.
    Alternate drives interest me. Like using an outboard boat motor lower section for a shaft drive bike.

  11. curtisfox

    curtisfox Active Member

    Joined:
    Dec 29, 2008
    Messages:
    3,776
    Likes Received:
    1
    Onan,Kohler, and Briggs all had flat top oposed , Onan is no longer made in fact no longer make the flat top engine. Onan is really expensive to redo or even to get parts.....Curt

  12. Intrepid Wheelwoman

    Intrepid Wheelwoman New Member

    Joined:
    Oct 29, 2011
    Messages:
    2,831
    Likes Received:
    0
    I used to own an Onan flat twin which was used to drive an ex-army generator set. I had a Norman flat twin too, but when my marriage broke up my ex sent them both off to the scrapper along with a lot more of my treasures.

    [​IMG]

    Sorry Ludwig I even had a handbook for the Norman, but that didn't survive my marriage either. :(


    Attached Files:

  13. Citi-sporter

    Citi-sporter New Member

    Joined:
    Jun 16, 2014
    Messages:
    118
    Likes Received:
    0
    I keep thinking a Ryobi 825r 4-stroker would make a nice little bike assist engine. And I'm mean 'assist' in a generous way because these are pretty limited in their overall power levels. I'm guessing they're not much over 1 hp.

    [​IMG]

    They are so prevalent at repair shops because they tend to stop running on E10 gas, it would be interesting to have the skill and machine tools to make a boxer twin 52 cc engine out of a pair of cylinders/pistons from the Ryobi

  14. curtisfox

    curtisfox Active Member

    Joined:
    Dec 29, 2008
    Messages:
    3,776
    Likes Received:
    1
    That's a awesome idea,have to give it some thought. I have a 4stroke Troy that I use for yard work and love it so smoth and quiet.......Curt

  15. Lightning Boy

    Lightning Boy New Member

    Joined:
    Apr 19, 2014
    Messages:
    185
    Likes Received:
    0
    I'll be looking in on this one as well, Ludwig. Right up my alley. :) Best of luck!

  16. Ludwig II

    Ludwig II Active Member

    Joined:
    Jul 17, 2012
    Messages:
    4,602
    Likes Received:
    9
    In a few weeks I'll be over in Norfolk to pick up an ancient bicycle, and a possible engine for it or another bike, but we won't know what it is until the accumulated layers of tools and bits are dug through to reach it.

  17. Intrepid Wheelwoman

    Intrepid Wheelwoman New Member

    Joined:
    Oct 29, 2011
    Messages:
    2,831
    Likes Received:
    0
    Oooooo the joy.... the anticipation.... :D

  18. Ludwig II

    Ludwig II Active Member

    Joined:
    Jul 17, 2012
    Messages:
    4,602
    Likes Received:
    9
    I just thought of something. Those little 2 stroke "throwaway" generators that give 650w or thereabouts, they have a 63cc reed valve engine in them, optimised for torque. If somebody's burnt out the lecktrickery side by asking too much of it, that's a nice little unit in there.

    From the 650 Sumo manual:
    780w 2 STROKE GENERATOR SML34GEN

    TECHNICAL DATA

    AC output 230Vac ~ 50Hz
    Rated power 0.65kVA
    Peak power 0.78KvA
    Phase Single
    Power factor cosø=1
    Displacement 63cc
    DC output 12V, 8.3A
    Motor 1.8HP, 2 stroke
    Fuel tank capacity 4.2L
    Fuel type 50:1 or 40:1 of unleaded petrol and two stroke oil
    Spark plug type F5TC

    #18 Ludwig II, Oct 8, 2014
    Last edited: Oct 8, 2014
  19. mat_man

    mat_man New Member

    Joined:
    Jan 29, 2011
    Messages:
    224
    Likes Received:
    0
    The most common version in the USA is the Harbor Freight 63CC 2 stroke generator.

    Unfortunately the generator housing is cast as part of the engine crankcase. (see pics)
    The shaft out of the engine is taper fit to the generator section.

    Harbor Freight 63CC generator manual
    http://manuals.harborfreight.com/manuals/66000-66999/66619.pdf


    Attached Files:

  20. Intrepid Wheelwoman

    Intrepid Wheelwoman New Member

    Joined:
    Oct 29, 2011
    Messages:
    2,831
    Likes Received:
    0
    That's a pity, - nice ball bearing race on the mains though.
