Sturmey Archer xfd hub and wheel assy from Husky question

Discussion in 'Motorized Bicycle General Discussion' started by Patr1ck, Jun 30, 2010.

  1. Patr1ck

    Patr1ck New Member

    Joined:
    Apr 15, 2010
    Messages:
    213
    Likes Received:
    0
    I just bought this 26" FRONT WHEEL WITH DRUM BRAKE HUB: Husky Bicycles
    I mounted it to a schwinn style springer (single spring type) Im trying to figure out how the hardware kit anchors the brake arm. Has anyone used this setup. Please share your brake arm mounting methods for the xfd hub.

    Thanks,
    Pat

  2. N8dogg

    N8dogg New Member

    Joined:
    Apr 25, 2010
    Messages:
    47
    Likes Received:
    0
    I used a 3/4 copper coupling and 2 hose clamps to keep the arm in place. The clamp thing they give you wouldn't even come close to fitting on my cruiser forks. I have used it for almost a month with no problems so far.

  3. Patr1ck

    Patr1ck New Member

    Joined:
    Apr 15, 2010
    Messages:
    213
    Likes Received:
    0
    Does anyone know how the clamp was designed to work? Id doesnt make sense to me.

  4. BarelyAWake

    BarelyAWake New Member

    Joined:
    Jul 21, 2009
    Messages:
    7,209
    Likes Received:
    4
    Picture is worth a thousand words?

    Mebbe... mebbe not, but it might help a lil lol


    The reason the brake arm isn't directly clamped to the fork and has that lil slot is so you can easily remove the front wheel.... remember to use a lil loctite on the adjusters, I forgot with mine and the cable end plucked five spokes outa my wheel... blarg :p

    No worries if you loctite tho ;)


    Attached Files:

  5. Patr1ck

    Patr1ck New Member

    Joined:
    Apr 15, 2010
    Messages:
    213
    Likes Received:
    0
    Is that the bracket that came with yours? Mine is different.

  6. N8dogg

    N8dogg New Member

    Joined:
    Apr 25, 2010
    Messages:
    47
    Likes Received:
    0
    The one that came with mine looks different too and wouldnt come close to fitting on my forks.

  7. CoastalCruiser

    CoastalCruiser New Member

    Joined:
    Apr 28, 2010
    Messages:
    338
    Likes Received:
    0
    A loosely fitted cable clamp is the ticket. Something like a coaster brake clamp.

  8. N8dogg

    N8dogg New Member

    Joined:
    Apr 25, 2010
    Messages:
    47
    Likes Received:
    0

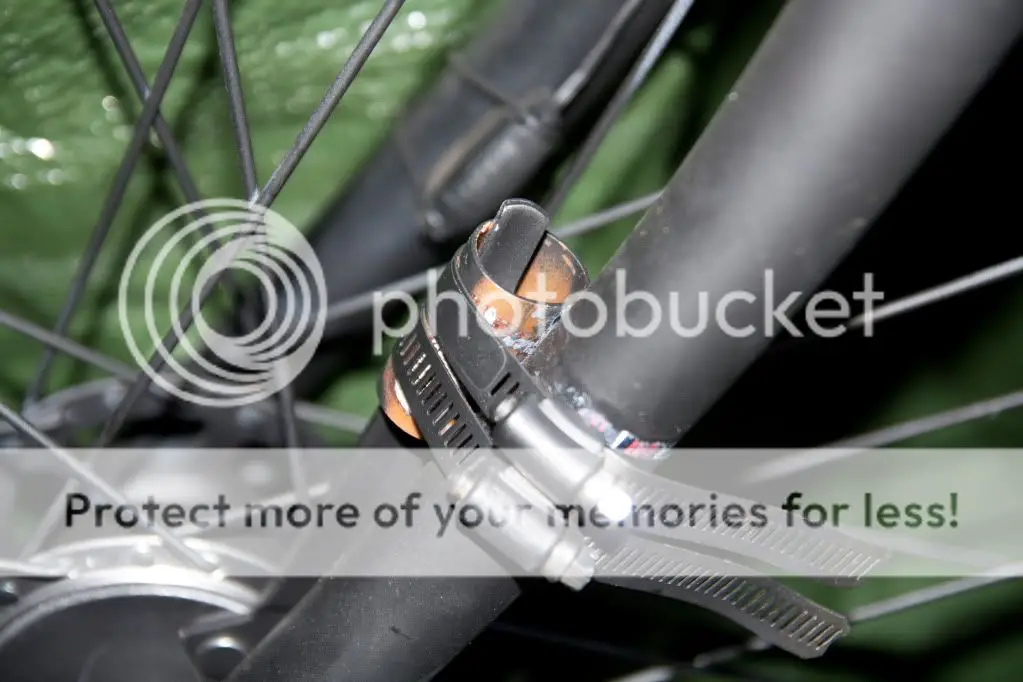

    Heres a picture of my rig that hasn't failed me since I bought it a month ago.
    copper coupling and hose clamps as I said before.

    [​IMG]

  9. BarelyAWake

    BarelyAWake New Member

    Joined:
    Jul 21, 2009
    Messages:
    7,209
    Likes Received:
    4
    Interesting... Yea, it's the clamp that came with it stock and it loves to try and take a lil chunk outa my finger when putting the front wheel on lol, but it works well & it's somethin' that can be fabbed up pretty easy as N8's done :)

  10. akohtz

    akohtz New Member

    Joined:
    Aug 12, 2013
    Messages:
    13
    Likes Received:
    0
    I got a heavy duty front wheel that was laced with one of these hubs. The stock clamp didn't come close to fitting the fat fork on my Huffy Cranbrook.

    My searches here led me to this thread for ideas on how to secure the brake arm. Ultimately I came up with my own solution and thought that I would share.

    I bought a split ring hanger from Lowes:

    [​IMG]

    A simple 1/2 inch long bolt that fit the hanger side of the ring and a metal loop to brace the arm was all the more I needed. I think I spent $3.55 after taxes.

    - Andrew


    Attached Files:

  11. mapbike

    mapbike Active Member

    Joined:
    Mar 14, 2010
    Messages:
    5,380
    Likes Received:
    1
    Andrew, that is a nice fix, hope you used loctite on the bolt that screws into the split ring hanger, if it were to vibrate out and that anchor arm come loose it will likely spin until the cable pulls tight and locks up the front wheel, end result will likely be high velocity FACE PLANT after a Superman launch over the bars which will send you straight into the ground faster than a speeding bullet.....LOL!

    Bairdco, who is a veteran member here had that simular thing happen to him and it got really ugly for him real quick, which included surgery and broken bones...... not good.

    Just wanted to mention this just in case you hadn't used some loctite, I sure hate to see another horror story on here about a lost bolt causing someone a bad injury.

    again that looks really good, keep the rubber side down.

    Map
    reddd

  12. akohtz

    akohtz New Member

    Joined:
    Aug 12, 2013
    Messages:
    13
    Likes Received:
    0
    Map,

    You know what. You're absolutely right. If there is going to be a failure ... those small bolts holding the ring together will be the point.

    I'm thinking I'll either use some loctite or I'll replace the two small bolts with longer ones with a nylock nut on the end to hold them in place.

    I really really like the stopping power in this front brake, but I want to use it with total confidence.

    Thanks for the feedback.

    - Andrew

  13. mapbike

    mapbike Active Member

    Joined:
    Mar 14, 2010
    Messages:
    5,380
    Likes Received:
    1
    You're very welcome, longer bolts/screws and nyloc nuts with a dab of loctite would sure be some extra insurance, by the way I like your bike all the way around, you did an excellent job on it, very clean build.

    Map
    reddd

  14. Jumpa

    Jumpa New Member

    Joined:
    Aug 12, 2011
    Messages:
    607
    Likes Received:
    0
    Did you use the 3/4 copper coup because the hose clamp would bottom out before tightening all the way ? I ask because they see clamps that have the ability to tighten until they close completely
