Hand made in Montana, USA. Rat Rodz is
an easy way to convert most available standard bicycles, such as a cruiser, hybrid, mountain, road, trike, etc.

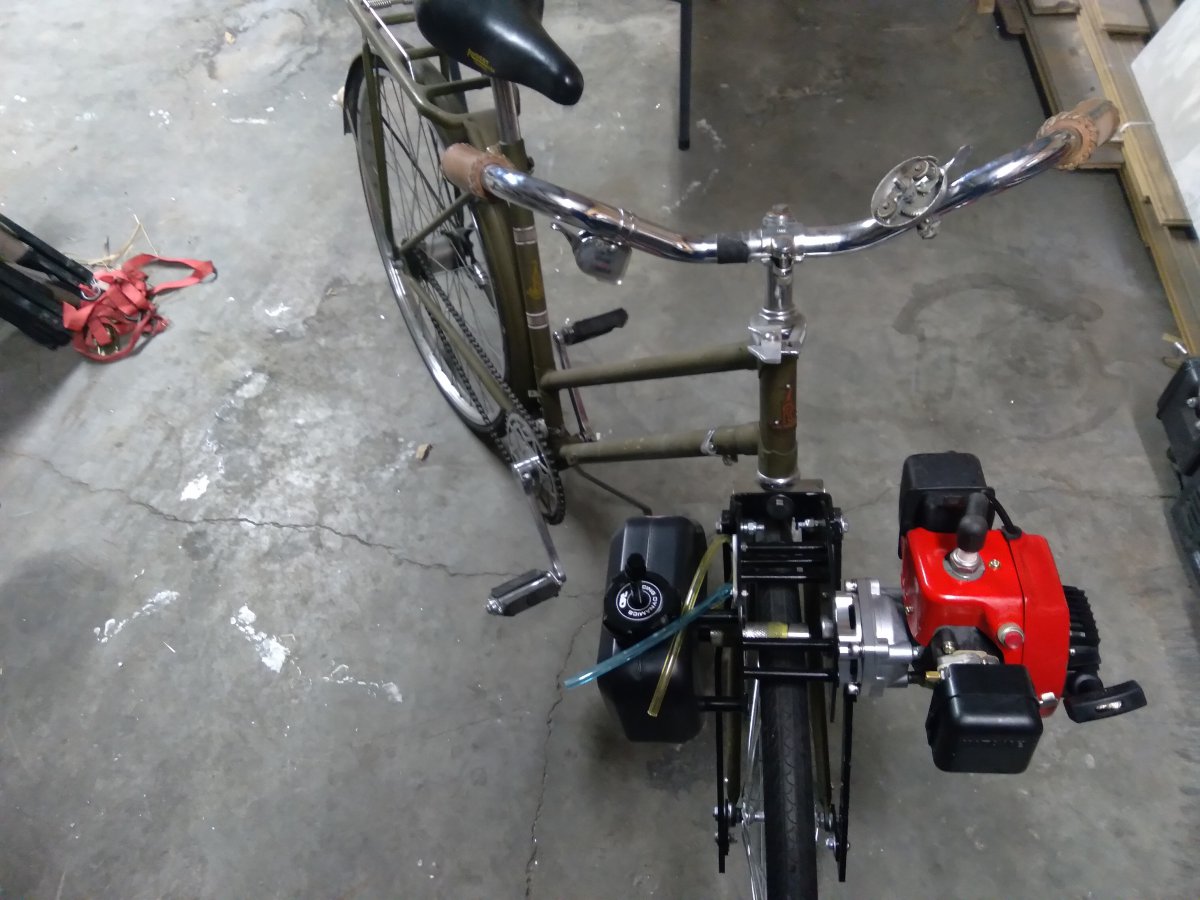

Turning an existing bicycle into a fully functional moped is only a couple bolts away for a Rat Rod kit.

----- Direct Drive -----
Simple to operate, simply pull the clutch lever in, pull start, and pedal off! Release the clutch lever to engage the drive spindle. Speed around and simply clutch at stops and idles. Simple and ease of use, no specialized replacement parts.
Adjustable clutch spring tension ensures accurate, consistent friction drive performance.



-- Add an ADA centrifugal clutch --

Kit is also available to install and allows the engine to idle at a stop with out having to use the clutch lever raise the engine off the tire.

Uses standard Zenoah 2 stroke hobby engines (22.5cc-34.5cc, or higher cc) resulting in an easy to start, run and maintain.

Paired with a Racing dynamics 1.5L gas tank, the result is a moped with reliability, distance, and presents a clean and light alternative to other moped kits.

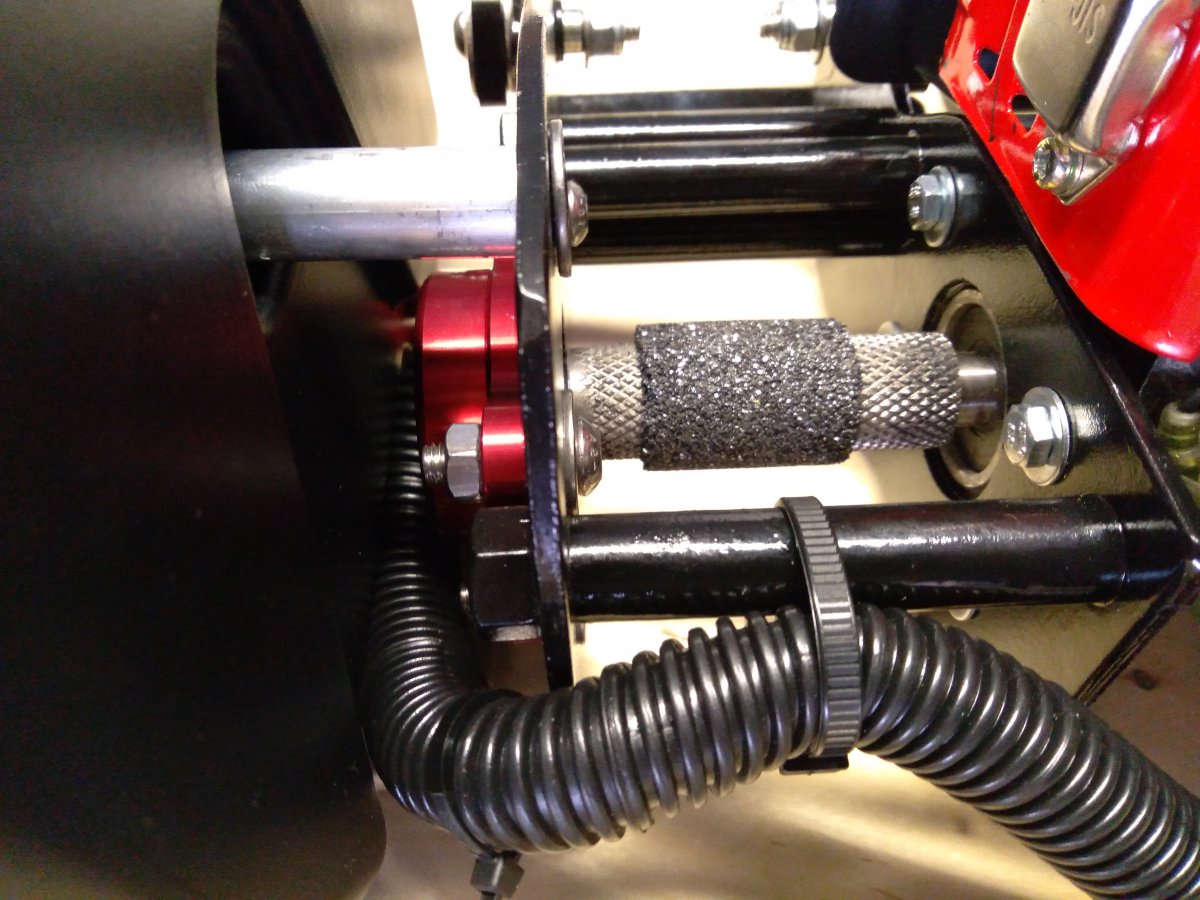

Corundum coated spindles. Performs just like a velosolex type!
Steel option available as well!
Uses common go ped style parts, big selection of aftermarket upgrades and replacement parts!

-----Brakes-----

Requires no to a minimal amount of modifications to install.

If caliper brakes are used, one will need to be removed at the front to accommodate the universal mount.
Some however can be used with an brake adapter.

V brakes and other caliper less brake sets can be used in conjunction with the universal brake adapter

--------Tires--------

Sizes from 1" - 2.5" and larger
Rim sizes 16-20 (modifications maybe needed, I haven't gotten to mount on this yet) 24,26,27,29

Like most vehicles, a reliable and quality engine is paired with the importance of quality tires.

Why I choose Zenoah
CY engines and rovan are cheaper alternatives, but you do get what you pay for. Zenoah is high quality and certainly worth the money.

Friction drive simplicity, both in operation and design.
zenoah reliability, no centrifugal clutch (unless desired) for less parts to wear, keeping you on the road.

What I offer:

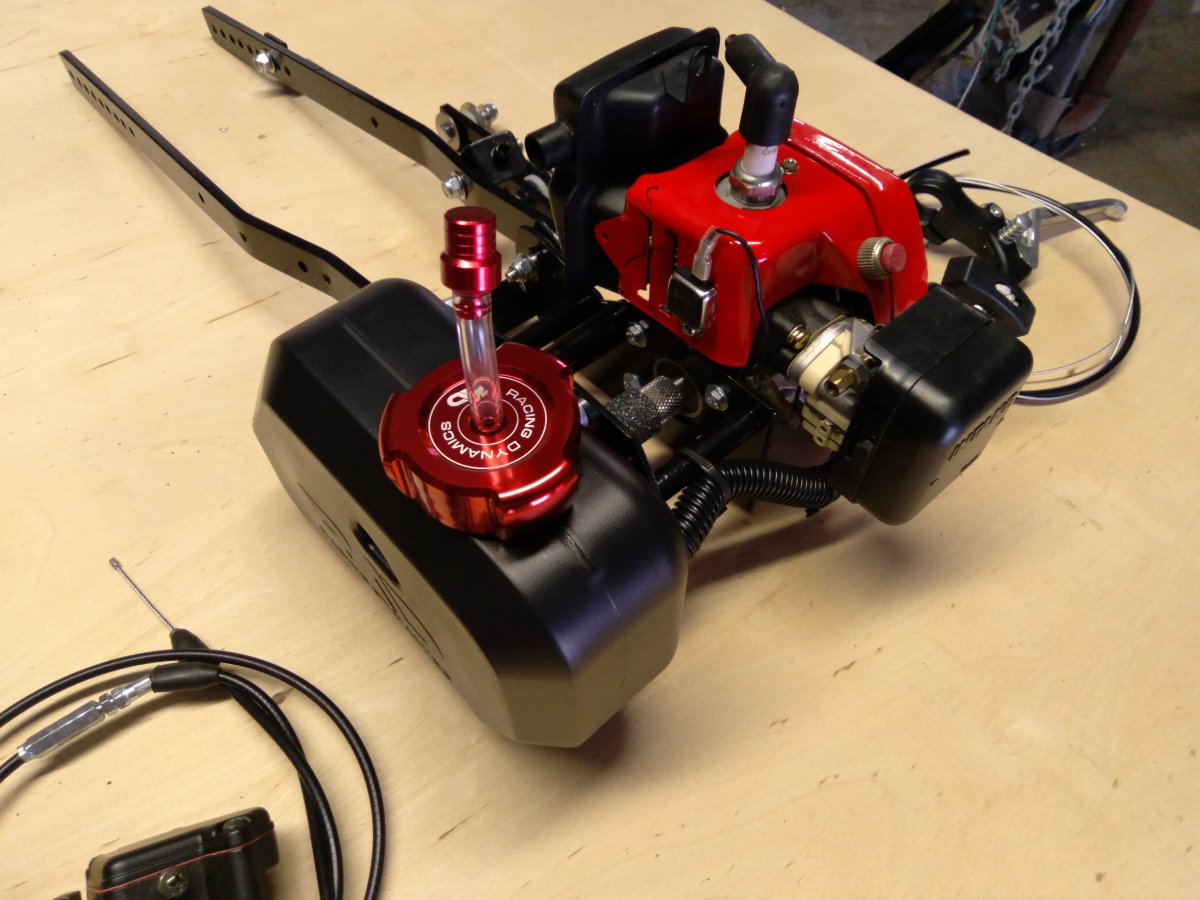

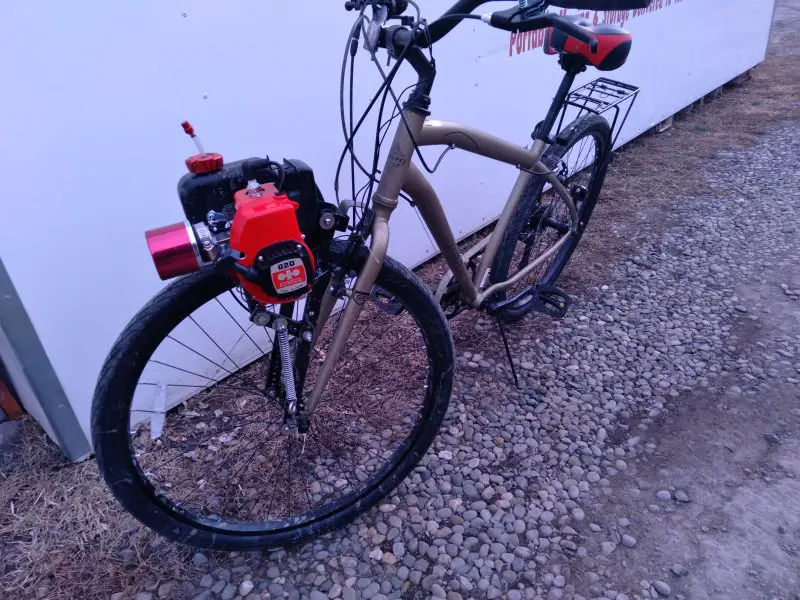

Direct Drive M1 (seen with g2d99)
  1. Handles tire width up to 2.125"
  2. 3rd bearing supported

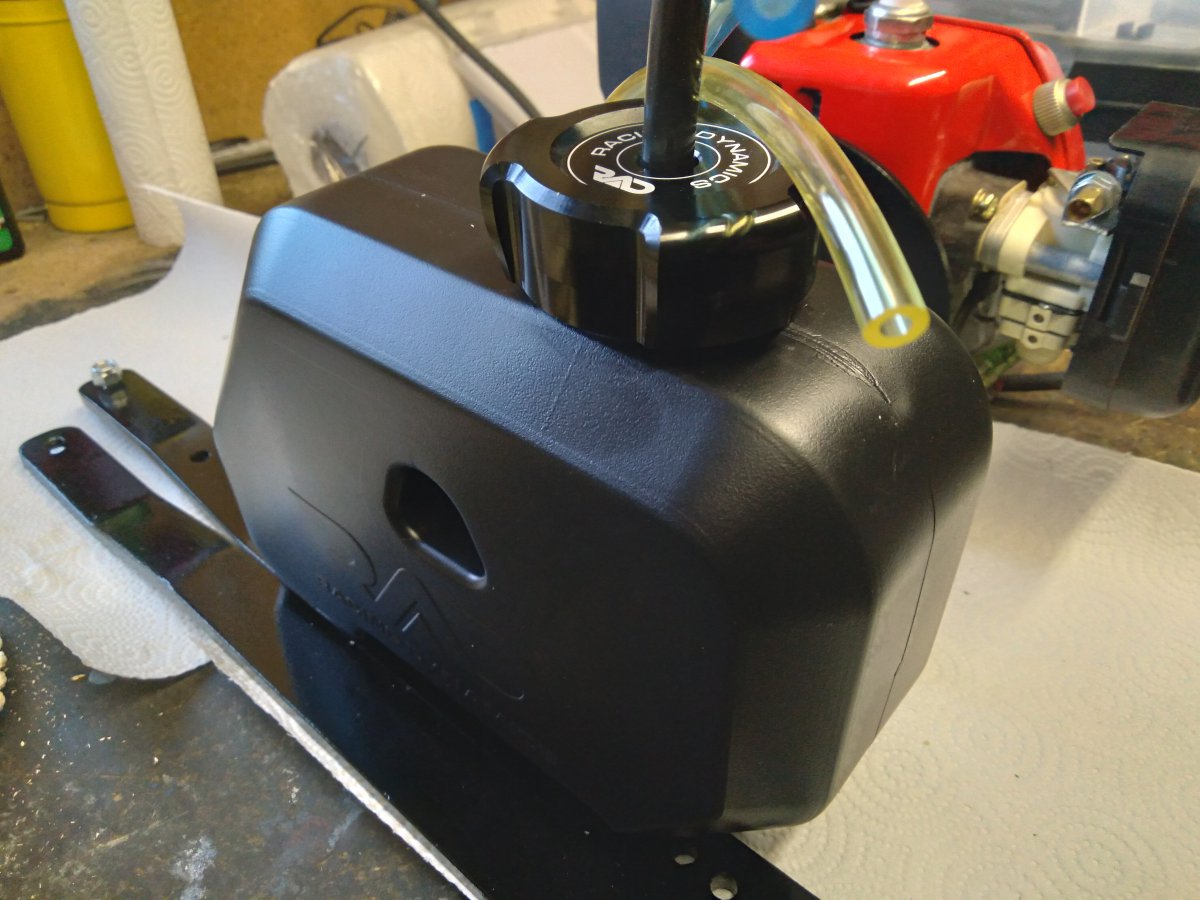

  3. 1.5L gas tank, Racing Dynamics
  4. Clutch lever and thumb throttle included, options for twist throttle available.
  5. All hardware included, these are ready to bolt on.
  6. Corundum or steel drive spindles available.

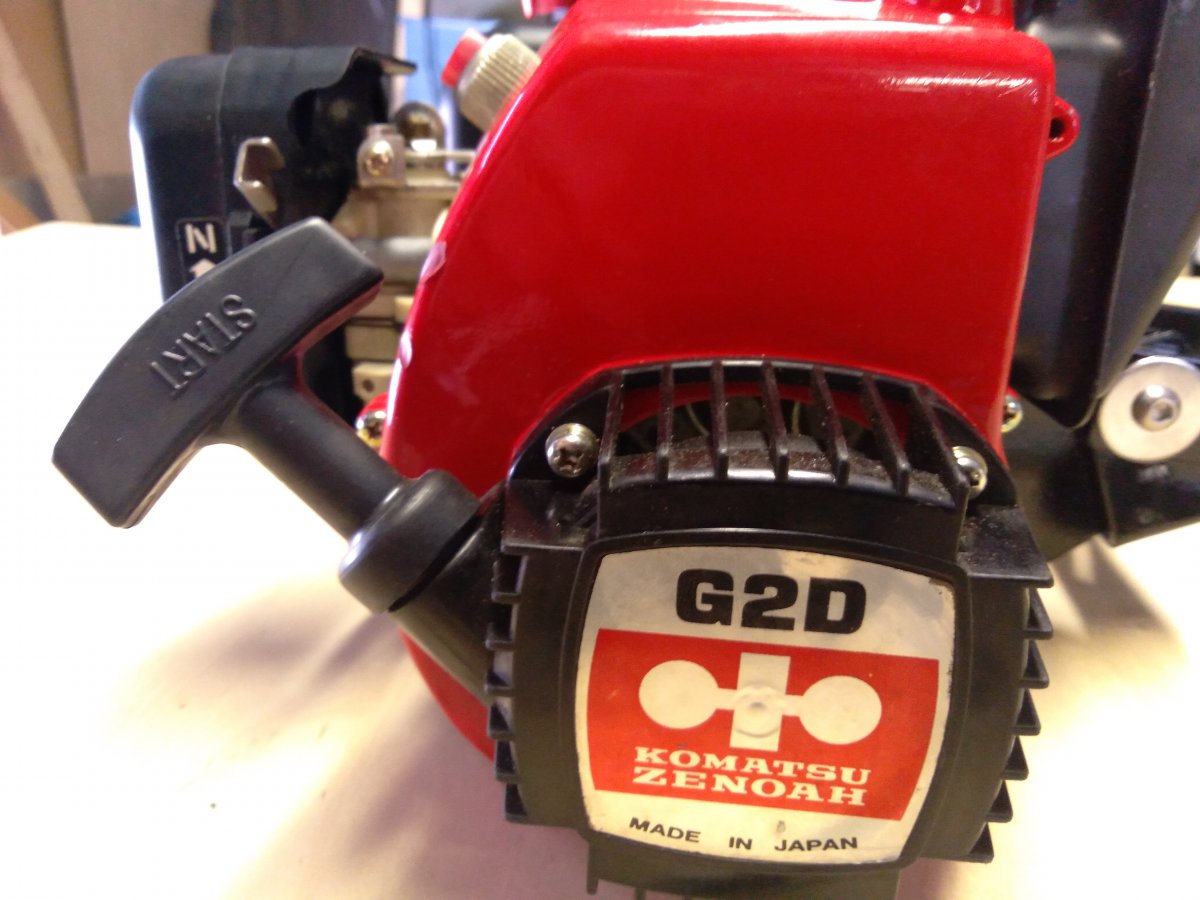

  • Complete w/ 23cc g2d99 engine, $360
  • Complete "hot rat" style w/23cc engine, after market carburetor, highflow muffler and airfilter. $400
  • Complete w/ 29cc Rovan engine, $400

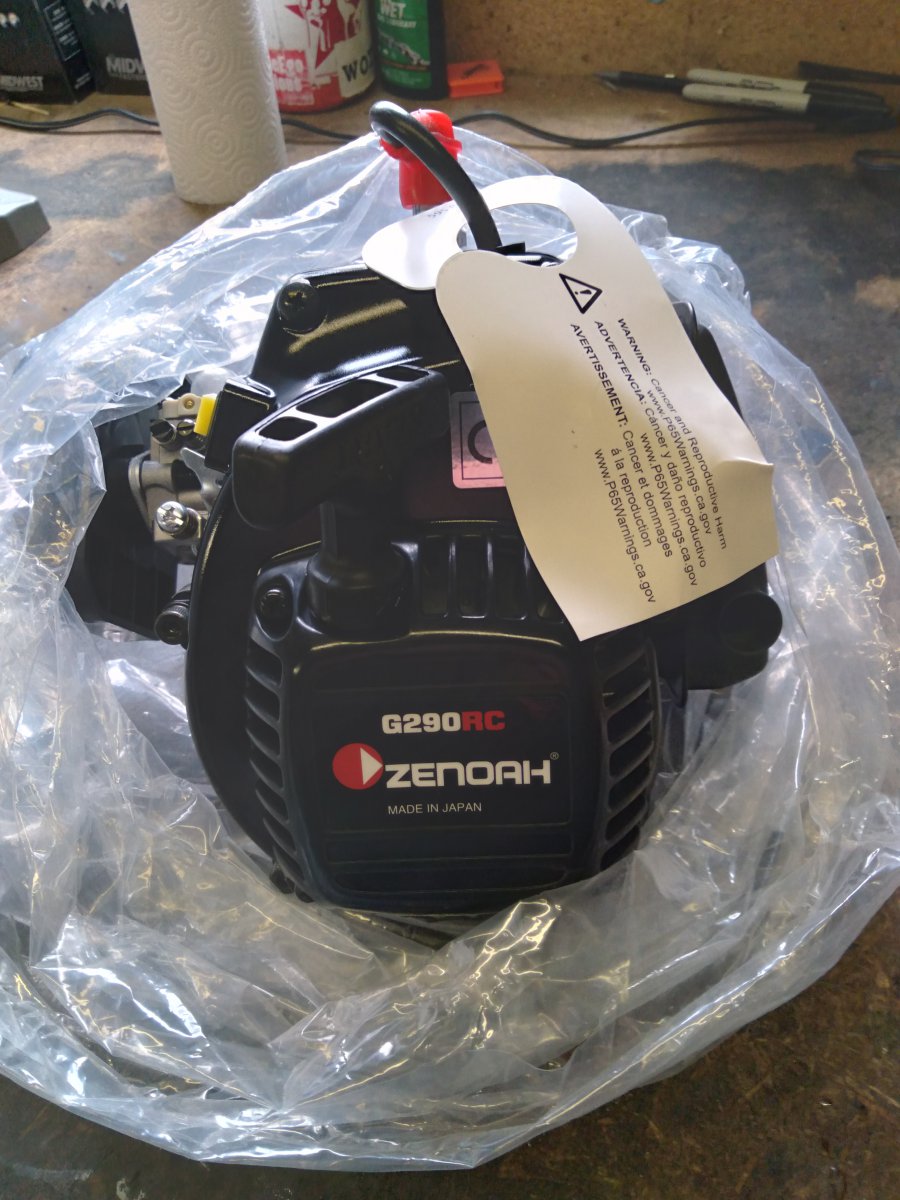

  • Complete with G290rc Zenoah engine $460

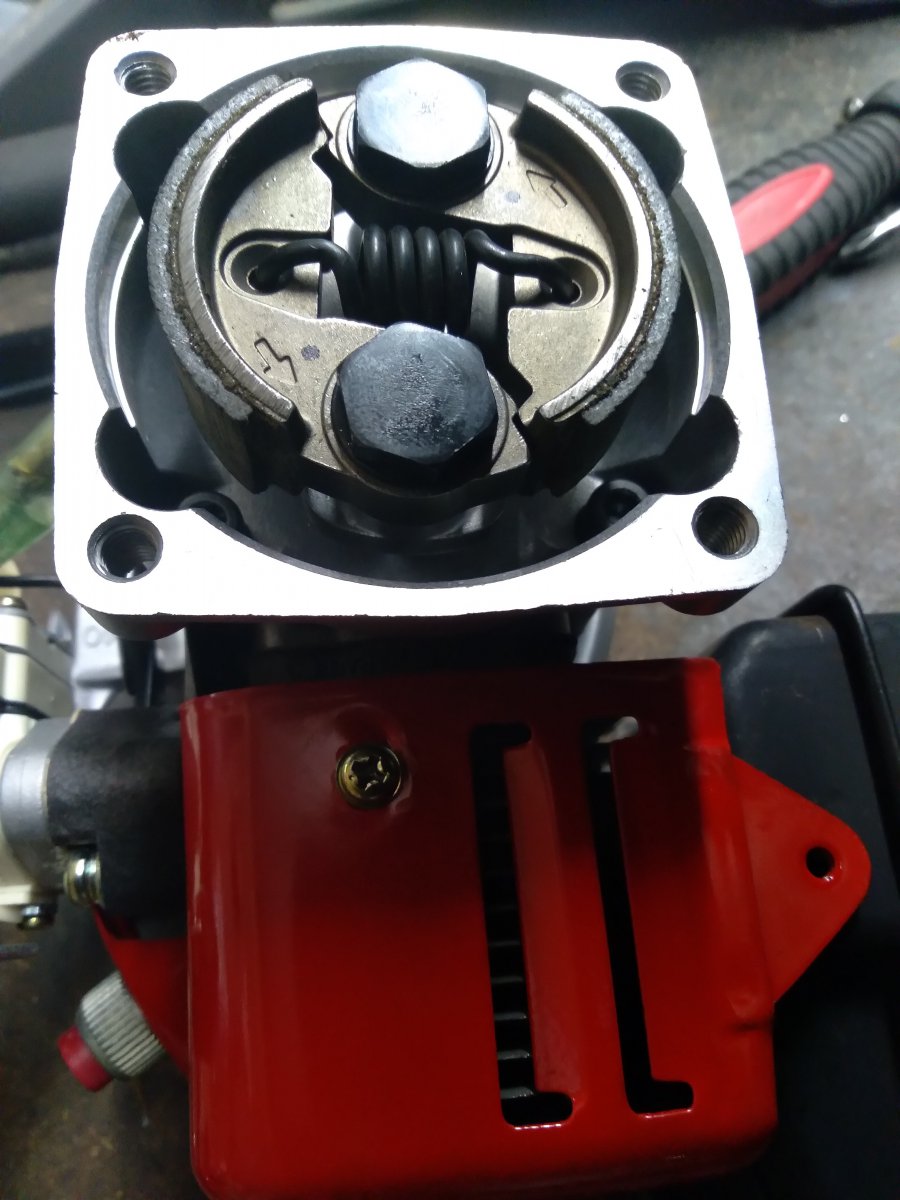

Centrifugal Clutch M2 (add $85)
  1. centrifugal clutch, and accepting tire width of 2.25
  2. Uses 3rd bearing support
  3. 1.5L gas tank
  4. Corundum or steel drive spindles available.
  5. Includes fittings and extra fuel line
Inquire about engine options, recommended 29cc or larger.


-M3.A-
  1. Fits widths up to 3.25 inches.
  2. 3rd bearing support, depending on desired width
  3. Ships with no fuel tank, no 3rd bearing buy later or fashion up your own
  4. Engine is bolted on w/ spindle. Just add fuel source.
  5. Can use centrifugal clutch aswell
G2d99 - 23cc, Spindle.
$275
Rovan - 29cc, Spindle.
$325
Zenoah - 29cc, Spindle.
$415

Buy your own parts kit;

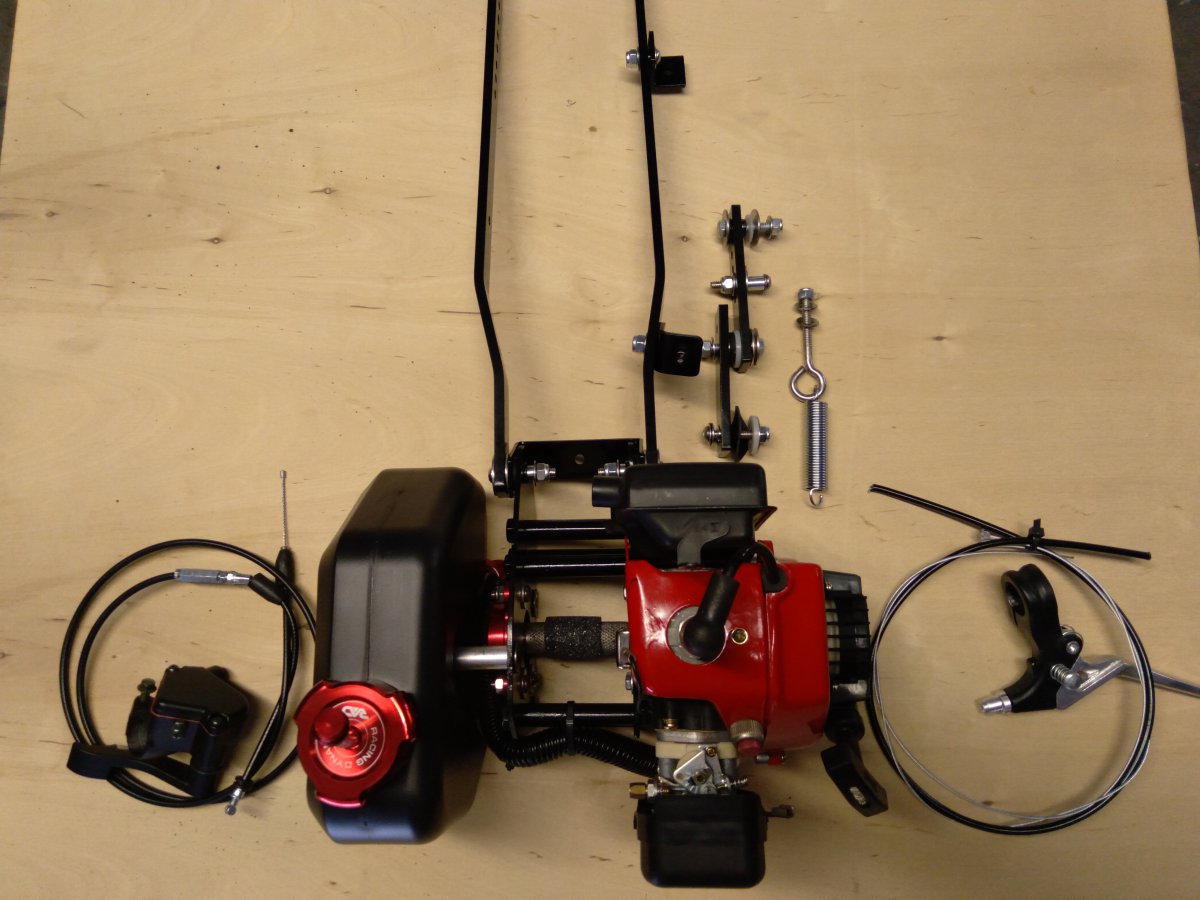

Frame, Struts, clutch and lever and custom tailored throttle cable. Just need, engine, spindle and gas tank of some sorts. Centrifugal clutch set up or direct drive available. M1-M2 $160
M3 $170

I can do custom colors, but nothing to an exact match. But cherry red, daisy yellow, pink. I can do some very close matches. Black is standard, clear coated.

Get unfinished aluminium and steel parts and I'll knock $15 off the price of any kit.

If interested, contact me via email.
[email protected]


We can discuss the bike, and its intended use to help build a kit to fit right and send you on the road


2speedboi

New Member
Feb 13, 2022
6
0
1
34

Group photo! 35 mile trip around the outskirts!

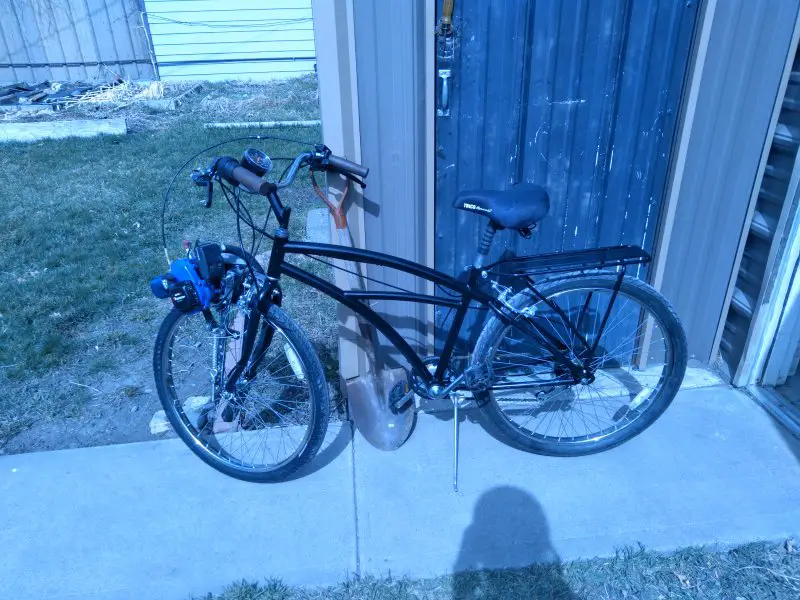

My new no dollar build!

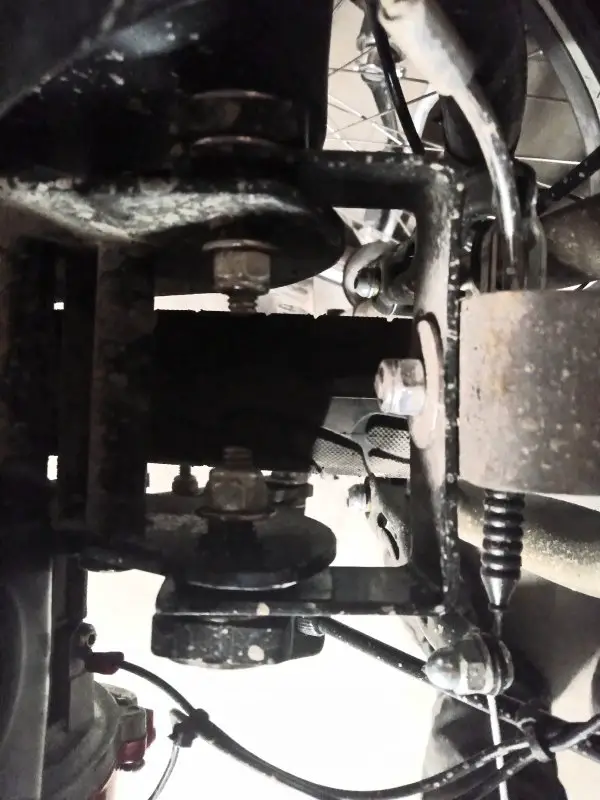

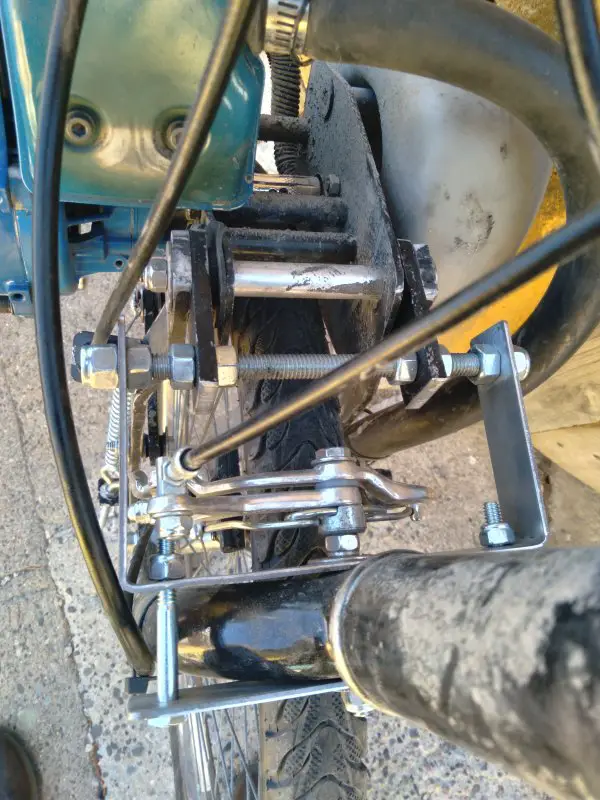

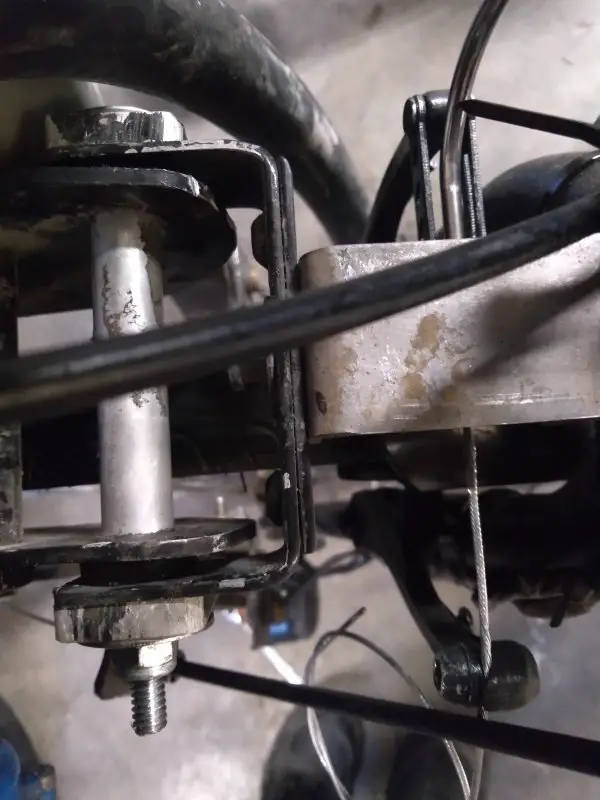

New universal mount for caliper style brakes, fully adjustable, works for other brake styles aswell. prototype seen above

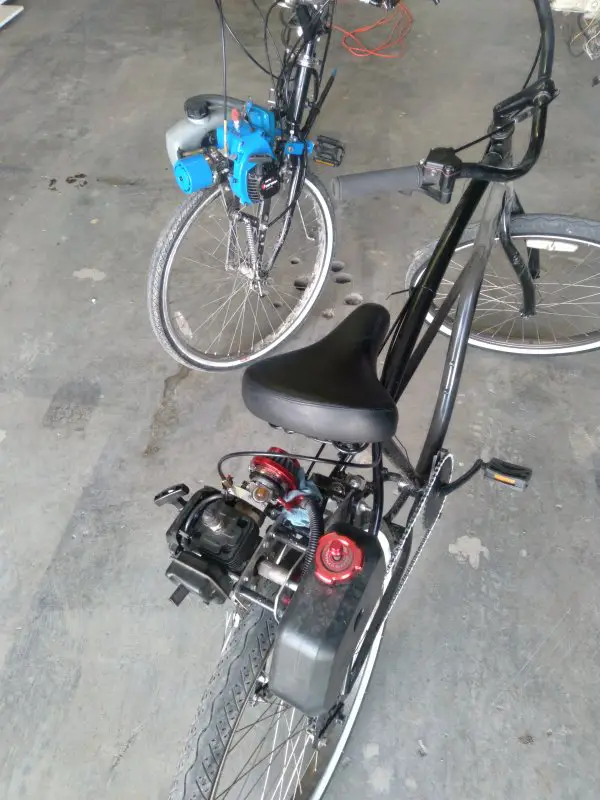

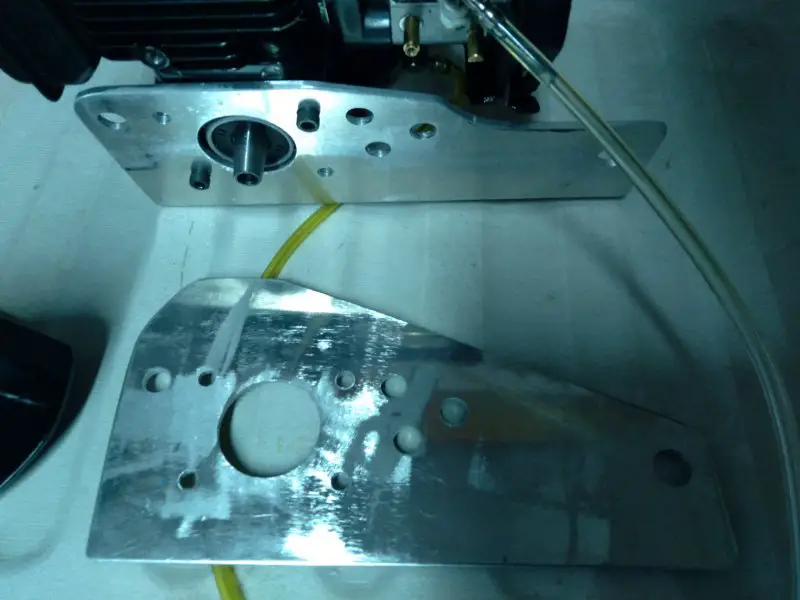

REAR MOUNTED KIT! New frame design to accommodate mounting on rear tires! More pictures to follow. Prototype seen above.
