quick and easy bike tech stand

Discussion in 'Motorized Bicycle General Discussion' started by wmassregulators, May 16, 2010.

  1. wmassregulators

    wmassregulators New Member

    Joined:
    Jun 19, 2008
    Messages:
    13
    Likes Received:
    0

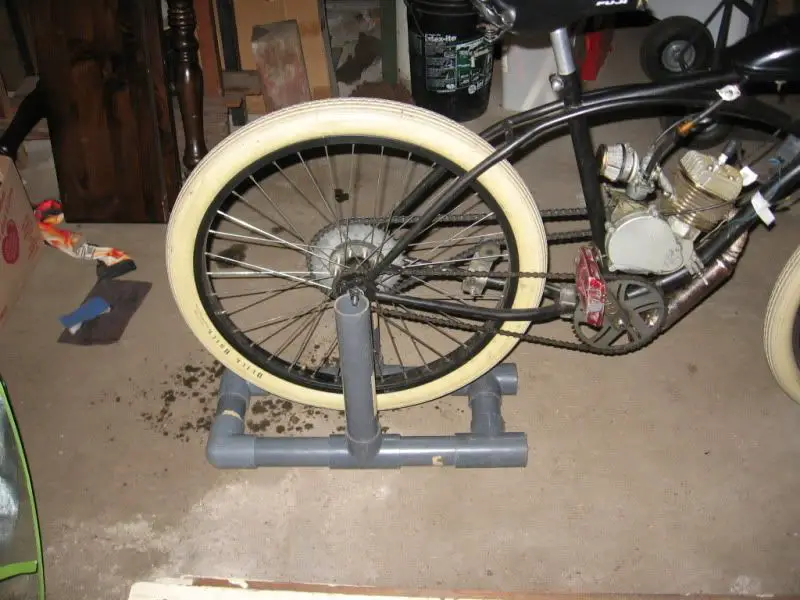

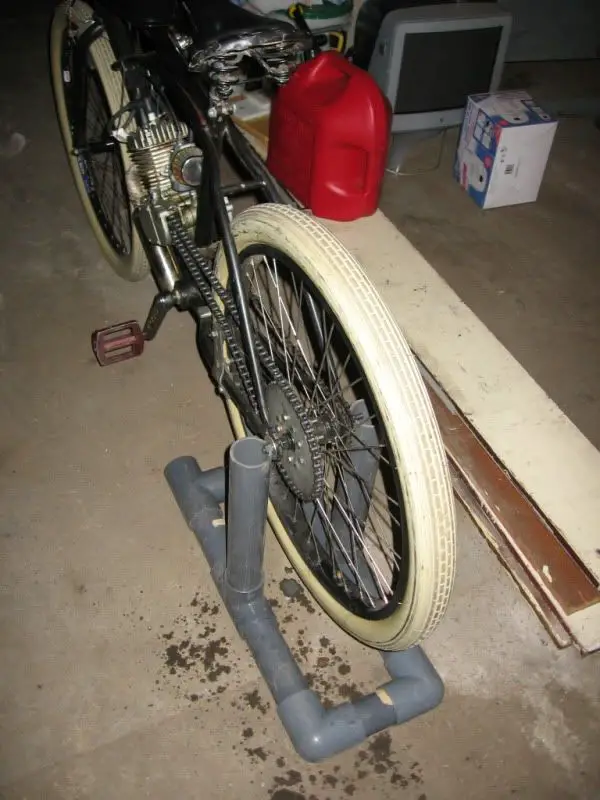

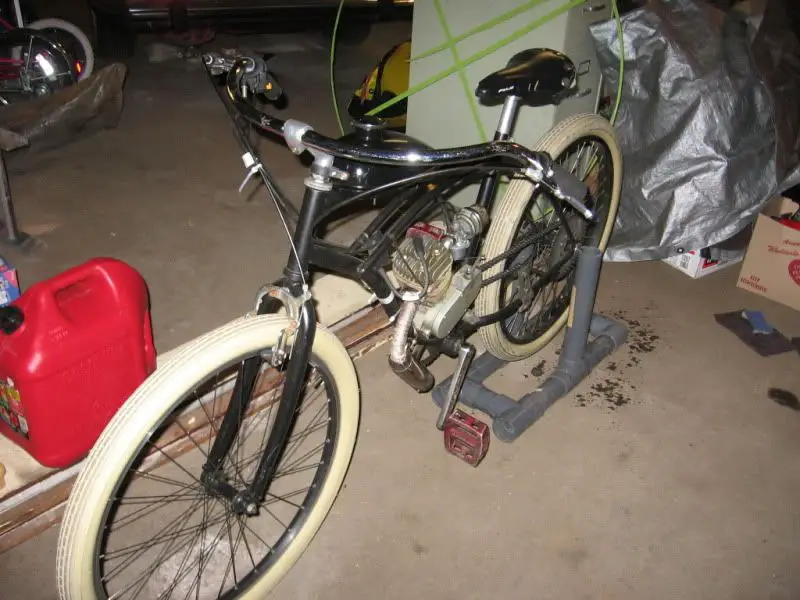

    I was having some issues with my bike at high RPM on my ride today, so I wanted to see what was going on, I looked around my shop for materials to build a quick tech stand and came up with this:

    [​IMG]
    [​IMG]
    [​IMG]

    it seemed to work out well for me, got my problem fixed and I had a nice ride.

  2. Dave31

    Dave31 Moderator
    Staff Member

    Joined:
    Mar 1, 2008
    Messages:
    11,207
    Likes Received:
    13
    Great ideal (^) Thanks for sharing.

  3. taddthewadd

    taddthewadd New Member

    Joined:
    Mar 1, 2009
    Messages:
    339
    Likes Received:
    0
    I am goning to build one today!

  4. demac

    demac New Member

    Joined:
    Mar 8, 2010
    Messages:
    97
    Likes Received:
    0
    i got to build one thankss!!! :)

  5. Goat Herder

    Goat Herder Gutter Rider

    Joined:
    Apr 28, 2008
    Messages:
    6,250
    Likes Received:
    2
    My way I have hooks from the ceiling. I like your stand though I don't have to clean the garage to get to my stand then.laff

    #5 Goat Herder, May 17, 2010
    Last edited: May 17, 2010
  6. Dave31

    Dave31 Moderator
    Staff Member

    Joined:
    Mar 1, 2008
    Messages:
    11,207
    Likes Received:
    13
    Engine stand turned bike stand....

    I have always been hanging my bikes from the rafters with tie-downs to work on them. Pain sometimes but gets the job done.

    I came upon a Park bench mount stand, tried to figure out where to put it but had nothing that would hold a bike, or allow you to have full access on both sides of the bike.

    So I was doing a build and got frustrated with my bike swinging back and forth as it whacked the side of my head when I remembered the park mount.

    Real quick like I mounted it to a old engine stand and it works great. I can even wheel the bike around which is great in limited space like I have.


    Attached Files:

  7. wheelbender6

    wheelbender6 Active Member

    Joined:
    Sep 4, 2008
    Messages:
    3,816
    Likes Received:
    10
    Great idea. I like the way you think.

  8. Bean

    Bean New Member

    Joined:
    Aug 13, 2010
    Messages:
    9
    Likes Received:
    0
    tahts awesome i am going to buid one tommorow i think should be around 15 to 20 bucks cause i have to buy everything.thanks for the idea.
    bean

  9. 2door

    2door Moderator
    Staff Member

    Joined:
    Sep 15, 2008
    Messages:
    16,301
    Likes Received:
    25
    Here's one, same idea, just steel pipe and some angle iron instead of PVC.
    I like Dave's idea of mounting casters, maybe removable ones. This one slides easily on a concrete floor and it stays attached.
    I've done engine tests on it so I know it's secure.
    Tom


    Attached Files:

  10. chainmaker

    chainmaker New Member

    Joined:
    Jan 19, 2010
    Messages:
    2,597
    Likes Received:
    1

    Thats exactly what I need, thanks Dave, Ive been looking for a stand and fits the bill right there!!!

  11. Goat Herder

    Goat Herder Gutter Rider

    Joined:
    Apr 28, 2008
    Messages:
    6,250
    Likes Received:
    2
    I put my bikes on a table top. When I hang from the ceiling with cargo straps and then roll around the table on a a stool. I do this when I am building one. Not as fancy but anything beats working on it at the floor to me sometimes for that purpose. I spent to many years crawling on concrete turning wrenches.

    The quick rear stands are still a definite jewel tho anything helps. I really need to make one!

  12. The_Aleman

    The_Aleman New Member

    Joined:
    Jul 31, 2008
    Messages:
    2,658
    Likes Received:
    1
    Great use of PVC!

    My bike's rear stand is welded to the frame (makes it easy to pull rear wheel), but when I need access to the front wheel, I have a long rope running over a rafter and tied to each grip. This raises the front wheel as much as I need. I think I'll make a PVC stand for the front now :D

  13. dmb

    dmb Active Member

    Joined:
    Dec 4, 2010
    Messages:
    1,359
    Likes Received:
    0
    i found a nashbar trainer at the swap for $20. it's like a dyno in that it turns a drum and is not easy to turn [trainer?] to start but works great to simulate road conditions while inspecting for problems that you can't see on the road. and it kinda looks cool setting their...

  14. decoherence

    decoherence New Member

    Joined:
    Aug 23, 2010
    Messages:
    476
    Likes Received:
    0
    oooooooooo! i'm going to build a iron pipe one tomorrow.

  15. MaxPower

    MaxPower New Member

    Joined:
    Jul 1, 2009
    Messages:
    552
    Likes Received:
    0
  16. caduceus

    caduceus New Member

    Joined:
    Feb 4, 2009
    Messages:
    173
    Likes Received:
    0
    I use an old Park Professional stand I got years ago, and when the finished product gets too heavy to lift easily, I use a come-along attached to an anchor in the ceiling to lift the bike up to the stand.

  17. chainmaker

    chainmaker New Member

    Joined:
    Jan 19, 2010
    Messages:
    2,597
    Likes Received:
    1

    That looks like somthing they would sell at IKEA.

  18. msrfan

    msrfan Active Member

    Joined:
    Sep 17, 2010
    Messages:
    1,716
    Likes Received:
    9
    I made mine a few years to dial in the carburetor and basically check things out before going into the street. Saved a lot of pedalling.


    [​IMG]


    It's just some 2X4s bolted together to form a cross, a rear fork made from some metal strap and two rails to keep the front tire straight. Two eyes to secure tie downs to the handlebars.


    [​IMG][​IMG]


    The forks holds the rear tire up. I made special rear axle nuts for all my motorbikes to fit into the stand. Very solid set-up when standing up to pedal start.

    [​IMG]


    Folds up neatly for compact storage.


    [​IMG]

  19. NunyaBidness

    NunyaBidness Active Member

    Joined:
    Jun 29, 2008
    Messages:
    1,062
    Likes Received:
    1
    msrfan that is a beautiful stand. Functional, convenient and compact. I would probably put legs on mine so I could sit on a stool and work on the bike. And legs would be an easy add on.
    Thanks for the idea, again great bike stand.

  20. The_Aleman

    The_Aleman New Member

    Joined:
    Jul 31, 2008
    Messages:
    2,658
    Likes Received:
    1
    msrfan an arteest as always!
