post your skyhawk frame builds!!!!

Discussion in 'Motorized Bicycle Pictures' started by Robbie, Jul 17, 2015.

  1. Robbie

    Robbie New Member

    Joined:
    May 21, 2015
    Messages:
    50
    Likes Received:
    0
    Hey let's see your skyhawk gt2a frame bikes you built! Post your pictures join the club!!!!!


    Attached Files:

  2. knightscape

    knightscape Member

    Joined:
    Jul 29, 2013
    Messages:
    339
    Likes Received:
    0
  3. HDCowboy

    HDCowboy Member

    Joined:
    Jan 3, 2015
    Messages:
    44
    Likes Received:
    0
  4. woogie_man

    woogie_man New Member

    Joined:
    Aug 9, 2013
    Messages:
    223
    Likes Received:
    0
    [​IMG]

    Getting around 36mph top right now. Though cruise around the 30 mark.

  5. maskedF4

    maskedF4 New Member

    Joined:
    Sep 11, 2015
    Messages:
    1
    Likes Received:
    0

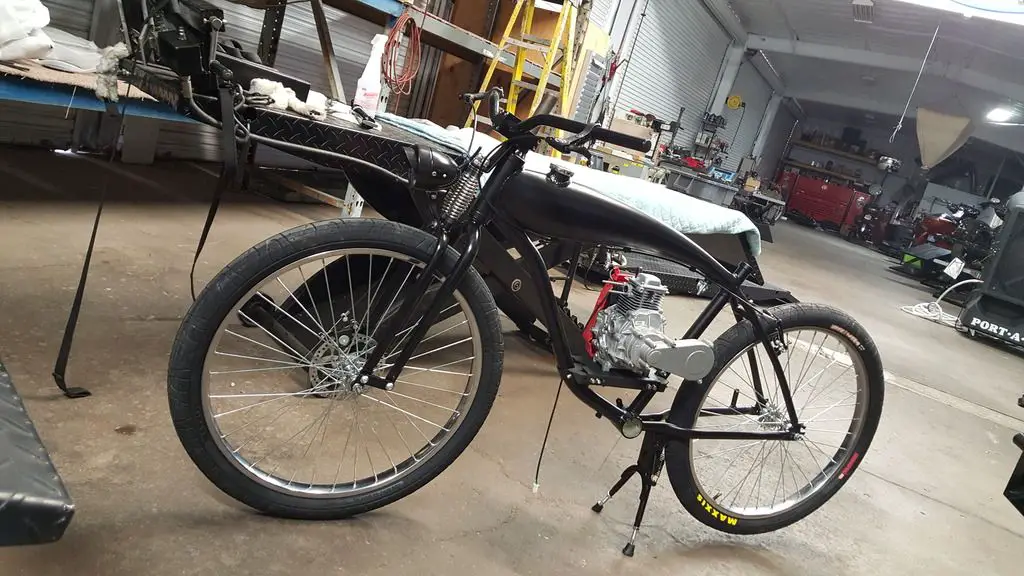

    Here is mine, taking much longer than expected. Maybe start a build thread on this? New to forums so not sure if I'm uploading images right..

    [​IMG]

  6. flbikejunkie

    flbikejunkie New Member

    Joined:
    Jun 7, 2015
    Messages:
    17
    Likes Received:
    0
    Looks nice. A build thread would be great to document what parts worked for you or you could post your completed bike here.

  7. KCvale

    KCvale Active Member

    Joined:
    Feb 28, 2010
    Messages:
    3,870
    Likes Received:
    10
    I am using the new GT2A-150 frame with disc brake mount that takes wider tires.
    In this case 3" Kenda Flame tires.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    HS 144F-1G 53cc pull start 4-stroke engine with enhanced flow exhaust, SBP high flow air cleaner, and NGK Iridium spark plug.

    Exclusive 10G ‘long shaft’ belt drive transfer case with right side carrier bearing base and bearing supported centrifugal force automatic clutch bell and freewheel 100T output pulley for 5:1 gear reduction and easy `engine off` pedaling.

    SBP bottom bracket with dual freewheel sprockets for direct connection of transfer to #410 single speed chains to allow pedals to stay in place under engine power.

    Strurmey Archer SK-RK3 3-speed internal shifting hub.

    Independent front and rear 160mm disc brakes on 24 inch wheels with 26x3 inch Kenda Flame tires.

    Sunlite dual fork, dual spring, disc brake Springer fork.

    Top speed ~40mph.

  8. leo

    leo Member

    Joined:
    Jul 20, 2015
    Messages:
    250
    Likes Received:
    0
    great looking bike.
    but what is the table in the background?
    do you have an OBGYN clinic in your garage? lol jk

  9. KCvale

    KCvale Active Member

    Joined:
    Feb 28, 2010
    Messages:
    3,870
    Likes Received:
    10
    This is my second build on the GT2A-150 frame.
    HS 144F-1G 53cc 4-stroke and 10G long shaft to a SA RX-RX5 5-speed internal hub drive train.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Man I love that hammered red powder coat ;-}

  10. Agreen

    Agreen Member

    Joined:
    Feb 10, 2013
    Messages:
    784
    Likes Received:
    1
  11. flbikejunkie

    flbikejunkie New Member

    Joined:
    Jun 7, 2015
    Messages:
    17
    Likes Received:
    0
    An update on my Indian tribute, changed the mountain bike fork for a springer fork and added the Cream colored Fat Franks, rides much smoother.


    Attached Files:

  12. KCvale

    KCvale Active Member

    Joined:
    Feb 28, 2010
    Messages:
    3,870
    Likes Received:
    10
    Nice upgrades, but whats up with that huge tensioner plate?
    It just really looks out of place and temped in is all.

  13. MotoMagz

    MotoMagz Active Member

    Joined:
    Aug 2, 2010
    Messages:
    1,263
    Likes Received:
    4
    Nice build ....looks like a smooth ride,good job!

  14. flbikejunkie

    flbikejunkie New Member

    Joined:
    Jun 7, 2015
    Messages:
    17
    Likes Received:
    0
    I've read about the standard chain tensioner working loose and turning into the spokes. The plate I installed was recommended by a number of members on the board and is certainly beefy and I am confident it will not move. Safety first.

  15. Edog805

    Edog805 New Member

    Joined:
    Jul 29, 2016
    Messages:
    3
    Likes Received:
    0
    Well here is my build which started about 2 years ago. Slowly but surely pieced everything together. I purchased all parts from the various MB vendors on the net.

    Some of the parts include:
    Phantom Headlight
    Phantom exhaust pipe(cool but loud as ****)
    Brooks saddle
    Solid steel layback post
    11g spokes wide board track rims
    90mm front drum brake
    MM spoket adapter
    Monark Type Springer Disk Fork for tires up to 2.75"
    Frame was powder coated black satin
    Old school Lucky Brand mirror

    Norm at VMB basically put the whole thing together for me. He was able to bypass the ugly chain tensioner as well. The bikes runs perfect. Tops out around 28 but cruises nice at 20-21..bf.


    Attached Files:

    #15 Edog805, Jul 31, 2016
    Last edited: Jul 31, 2016
  16. KCvale

    KCvale Active Member

    Joined:
    Feb 28, 2010
    Messages:
    3,870
    Likes Received:
    10
    Nice build Edog.

    Here is another Skyhawk frame 4-stroke using the customers parts.

    [​IMG]

    8-speed Sturmey Archer internally geared rear hub.

    [​IMG]

    I've got another GT2 build in the bay, a 2-stroke shifter this time.

  17. Edog805

    Edog805 New Member

    Joined:
    Jul 29, 2016
    Messages:
    3
    Likes Received:
    0
    Thanks a lot! I like your builds as well.

  18. Robbie

    Robbie New Member

    Joined:
    May 21, 2015
    Messages:
    50
    Likes Received:
    0
    Wow nice rides! I think i'am going to do a 4 stroke build next on the skyhawk gta-150 frame. And hopefully with KCVAIL's 10 G jackshaft trans.! I like his builds thay are slick!
    I was just wondering what your 4 stroke top speeds with and without the jackshaft?????

  19. KCvale

    KCvale Active Member

    Joined:
    Feb 28, 2010
    Messages:
    3,870
    Likes Received:
    10
    Thanks Robbie ;-}

    A ~50cc direct drive will do ~32mph, with gears ~40+ depending on your gears overdrive ratio, I have flitered with 50 tucked in, but it's not all about top speed...
    It's more about the low gears that will launch you off the line from a dead stop like a frigg'n slingshot and handling hills where they really shine ;-}

  20. runnermike

    runnermike New Member

    Joined:
    Nov 18, 2012
    Messages:
    936
    Likes Received:
    0
    Here is a picture of the last build I did....
