Motorized Bicycle Tech Session with Water Burn-Outs

Discussion in 'Motorized Bicycle General Discussion' started by sportscarpat, Jan 25, 2010.

  1. sportscarpat

    sportscarpat Bonneville Bomber the Salt Flat record breaker

    Joined:
    Jun 25, 2009
    Messages:
    1,752
    Likes Received:
    65
    Hey guys,

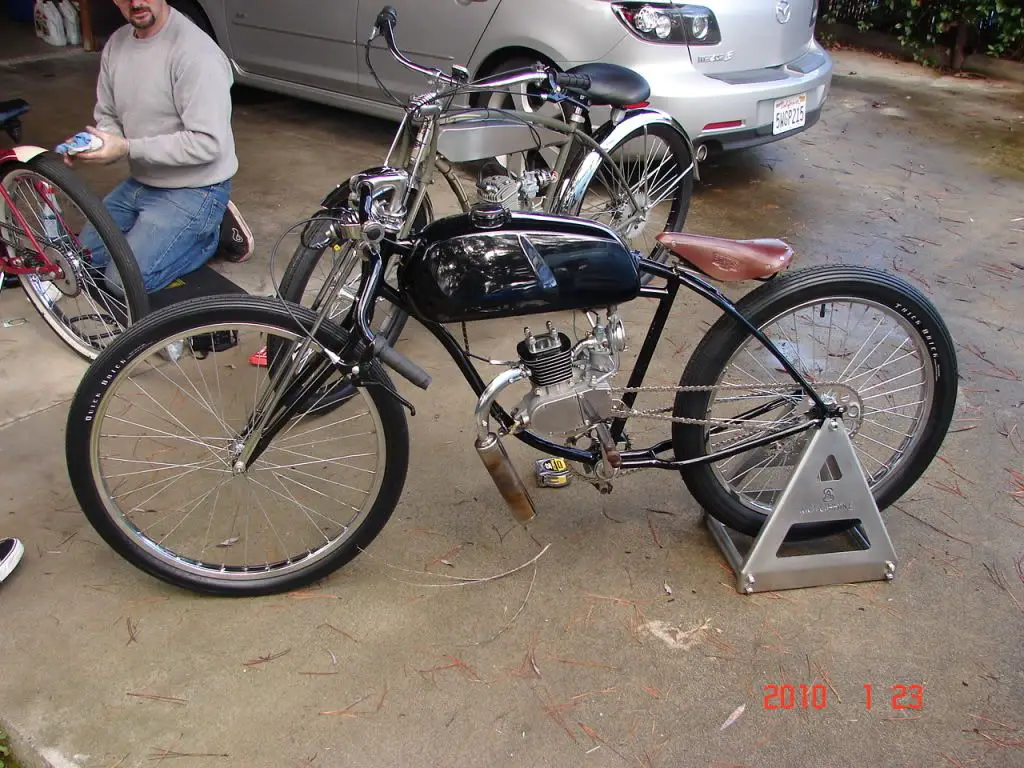

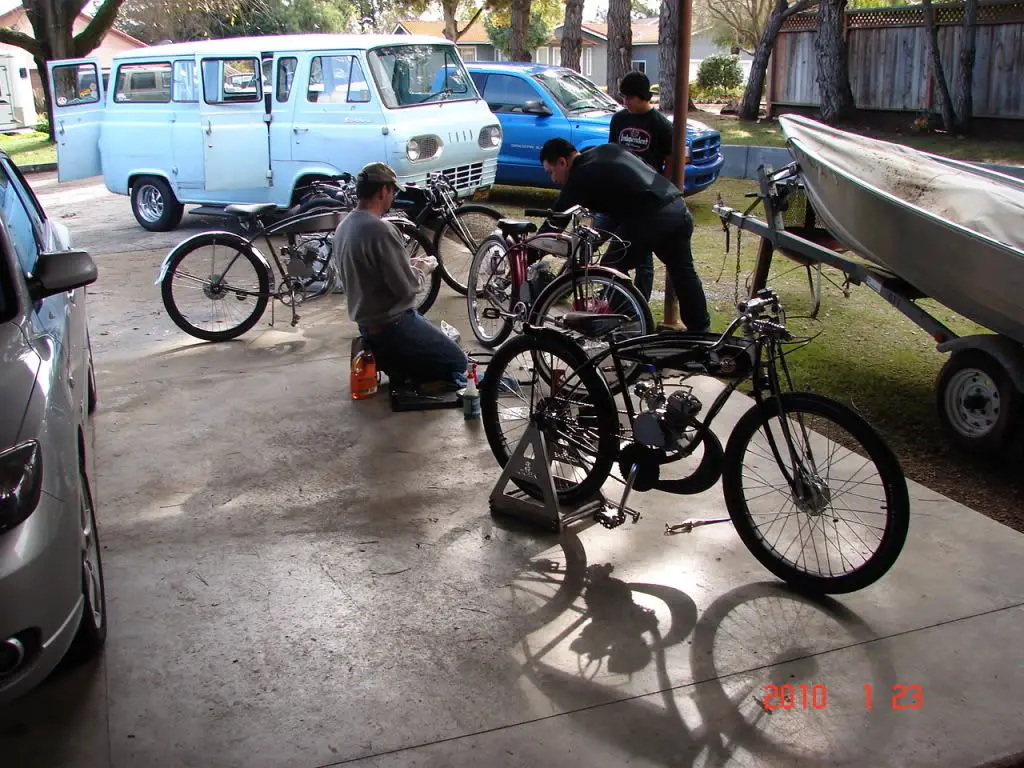

    We had a nice tech session on Saturday at my shop. Just a couple of the local crew and a few bikes. We have all been experimenting on ways to get better performance and what better way then to just hang out, work on the bikes, and then do some actual testing. Here we are getting started. Notice the Scooby Mobile in the backround.
    [​IMG]

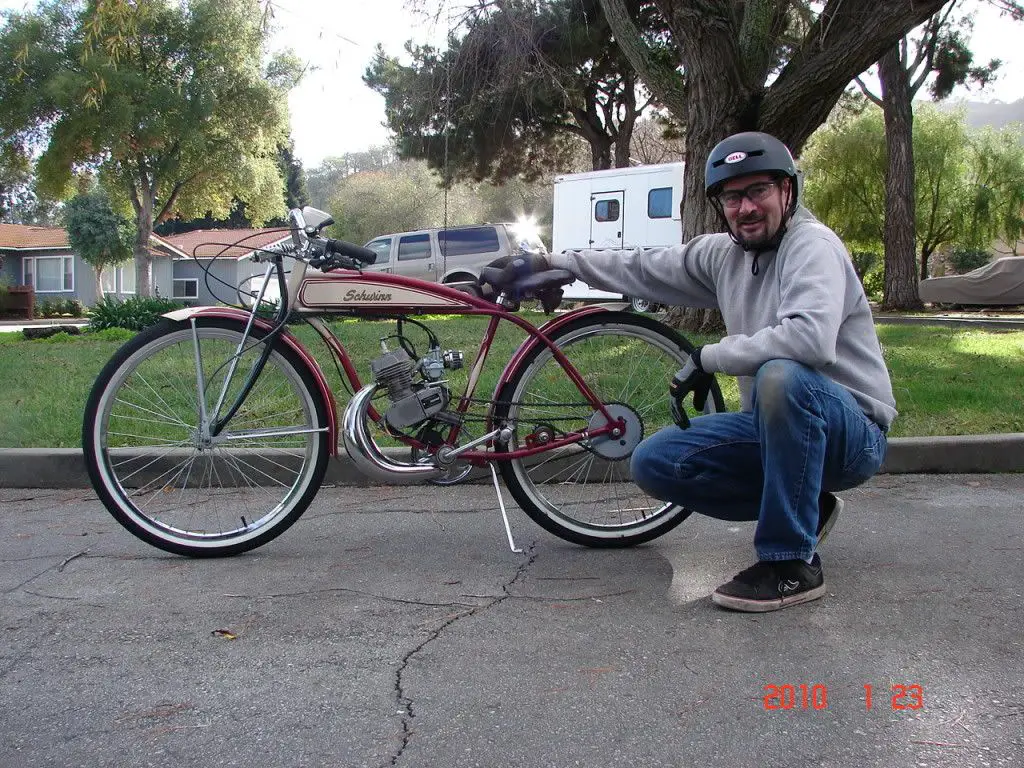

    Here's Itchybird (Rich) after working on his ride. We decked the head on a lathe, modified an expansion chamber to fit his bike, then he mounted up a CNS carb. Here he is with his updated Bike. I think he looks pleased with the results.
    [​IMG]

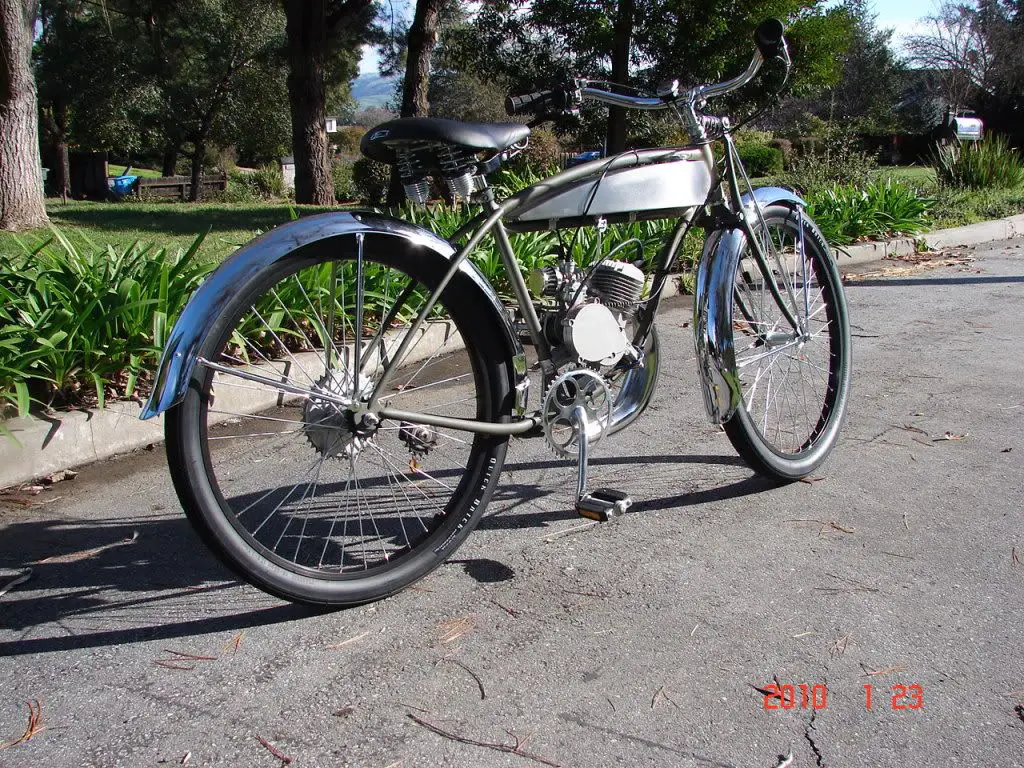

    Here's a shot of Carlos' bike. This ride has custom work all over it. The longer you look the more cool stuff you find. We fired it up for the first time and it looks like it's going to be a real winner.
    [​IMG]

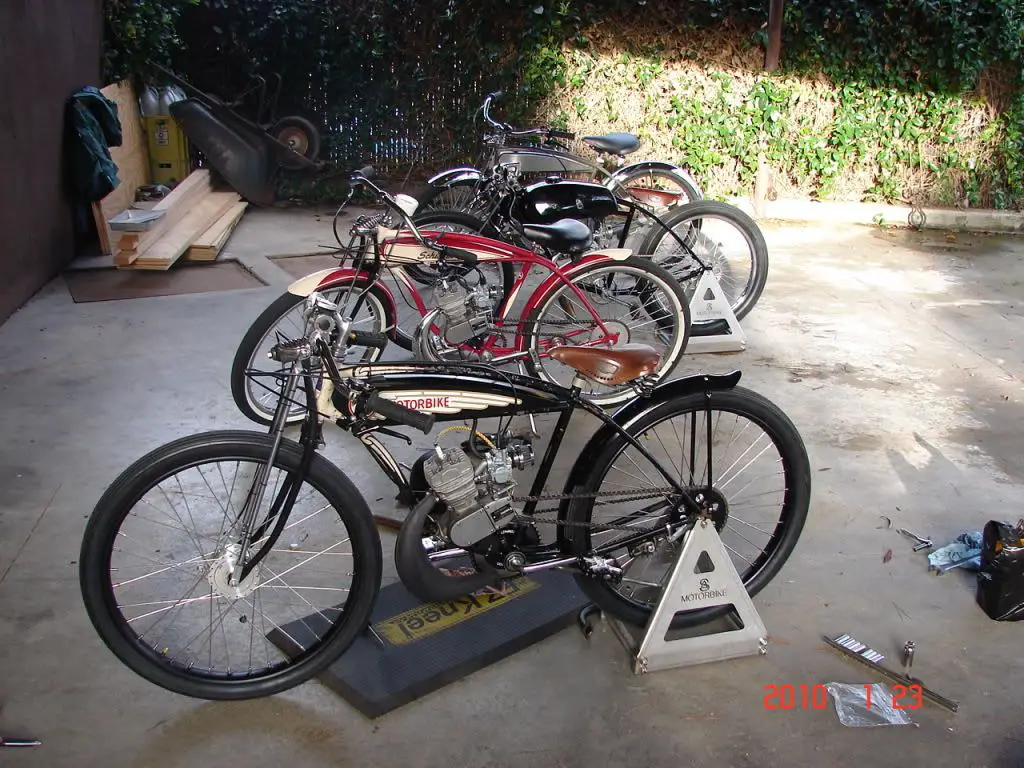

    Here's a shot of all the bikes. My bike up front is sporting it's new expansion chamber and aluminum annodized Worksman wheels.
    [​IMG]
    The last ride is a bike I am building up for my wife. This one also got a host of upgrades but we didn't get it finished up. Maybe next time.
    [​IMG]

  2. sportscarpat

    sportscarpat Bonneville Bomber the Salt Flat record breaker

    Joined:
    Jun 25, 2009
    Messages:
    1,752
    Likes Received:
    65
    Re: MB Tech Session with Water Burn-Outs

    Now for some real world testing. It had been raining and my gutter was dripping water onto the driveway right next to where we were working. Someone got the crazy idea to see if we could do burn-outs. There is definately some technique involved and Rich had it down. I still need to practice. Here is some video. Hope this link works.
    [​IMG]
    Here is my attempt.
    [​IMG]

  3. stv1jzgte

    stv1jzgte New Member

    Joined:
    Feb 11, 2009
    Messages:
    489
    Likes Received:
    0
    Re: MB Tech Session with Water Burn-Outs

    Oh man sweet bikes bro!
    how do you all like that expansion chamber? i have the same carb and i fitted the pipe last thursday, didnt really note a difference at first apart from the noise but it does pick up and rev alot harder just the noise kills me.

  4. silverbear

    silverbear The Boy Who Never Grew Up

    Joined:
    Jul 9, 2009
    Messages:
    8,191
    Likes Received:
    12
    Re: MB Tech Session with Water Burn-Outs

    Nice thread. It must be great having other guys to ride with and kind of feed off each other's enthusiasm. One reason I want to sell some bikes locally is to have people to ride and hang out with. Very cool bikes.
    SB

  5. pdubs

    pdubs New Member

    Joined:
    Jan 16, 2010
    Messages:
    74
    Likes Received:
    0
    Re: MB Tech Session with Water Burn-Outs

    awesome rides! :D

    what brand of bikes are those? are those custom tanks?

  6. sportscarpat

    sportscarpat Bonneville Bomber the Salt Flat record breaker

    Joined:
    Jun 25, 2009
    Messages:
    1,752
    Likes Received:
    65
    Re: MB Tech Session with Water Burn-Outs

    Yes, the expansion chambers are louder. There is no baffling in them at all. Yes they are louder but a two stroke needs an expansion pipe to run right. These engines come pretty choked from the factory and are in serious need of better breathing. We have opened them up all the same way.
    Here is the standard list of mods:
    1. Port match the intake and exhaust.
    2. Performance carb. I use the CNS.
    3. Deck the head properly. I decked mine .040.
    4. Expansion chamber.
    5. 40 tooth rear sprocket with the hub mounted sprocket adapter.
    After these simple upgrades the performance increase is substantial. A much more enjoyable riding experience. Oh, all the bikes are Schwinns with custom built tanks. One of the tanks came off a moped but even that one required modification to fit. I build the in-frame tanks.

    #6 sportscarpat, Jan 25, 2010
    Last edited: Jan 25, 2010
  7. pdubs

    pdubs New Member

    Joined:
    Jan 16, 2010
    Messages:
    74
    Likes Received:
    0
    Re: MB Tech Session with Water Burn-Outs

    they look really good! awesome work man :D

  8. Steve M

    Steve M New Member

    Joined:
    Nov 27, 2009
    Messages:
    73
    Likes Received:
    0
    Re: MB Tech Session with Water Burn-Outs

    Great looking bikes! What hub did you use for your hub adapter?brnotbrnot

  9. Dan

    Dan Staff
    Staff Member

    Joined:
    May 25, 2008
    Messages:
    12,650
    Likes Received:
    66
    Re: MB Tech Session with Water Burn-Outs

    Really nice work
