MBA Motors Mortorized Mountain Bike Anyone?? HELP??? HELP.....

Discussion in 'Motorized Bicycle General Discussion' started by calpolymike, Oct 22, 2011.

  1. calpolymike

    calpolymike New Member

    Joined:
    Oct 22, 2011
    Messages:
    41
    Likes Received:
    0
    ive searched here and nobody seems to have one.


    anyone??? anyone??

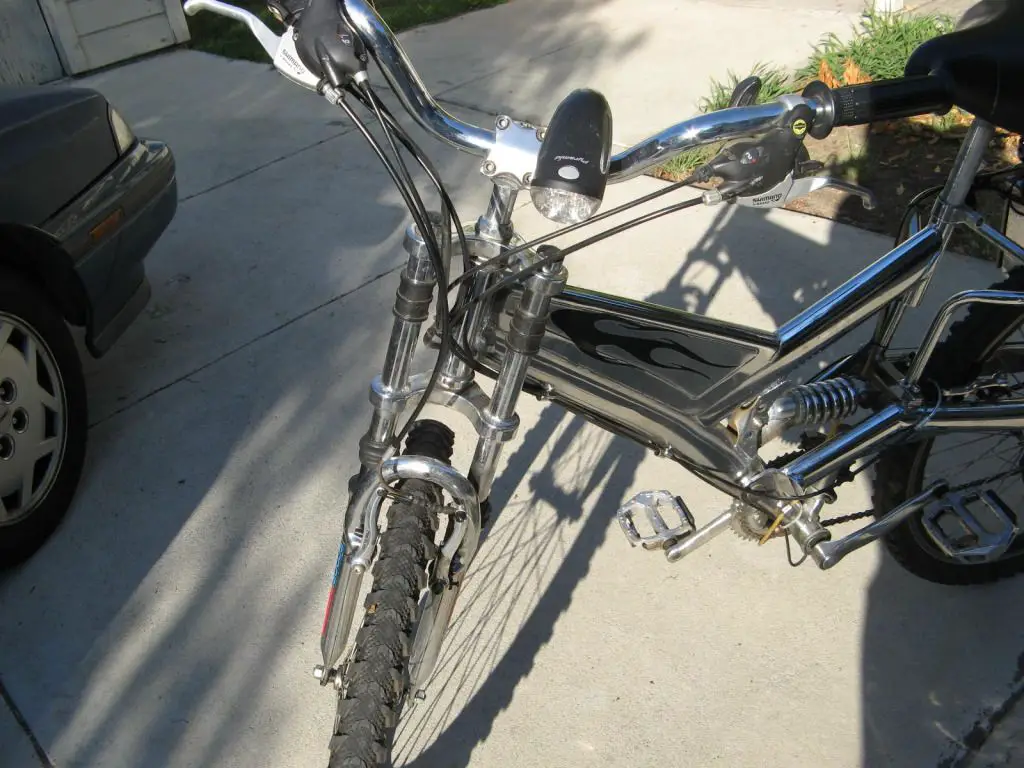

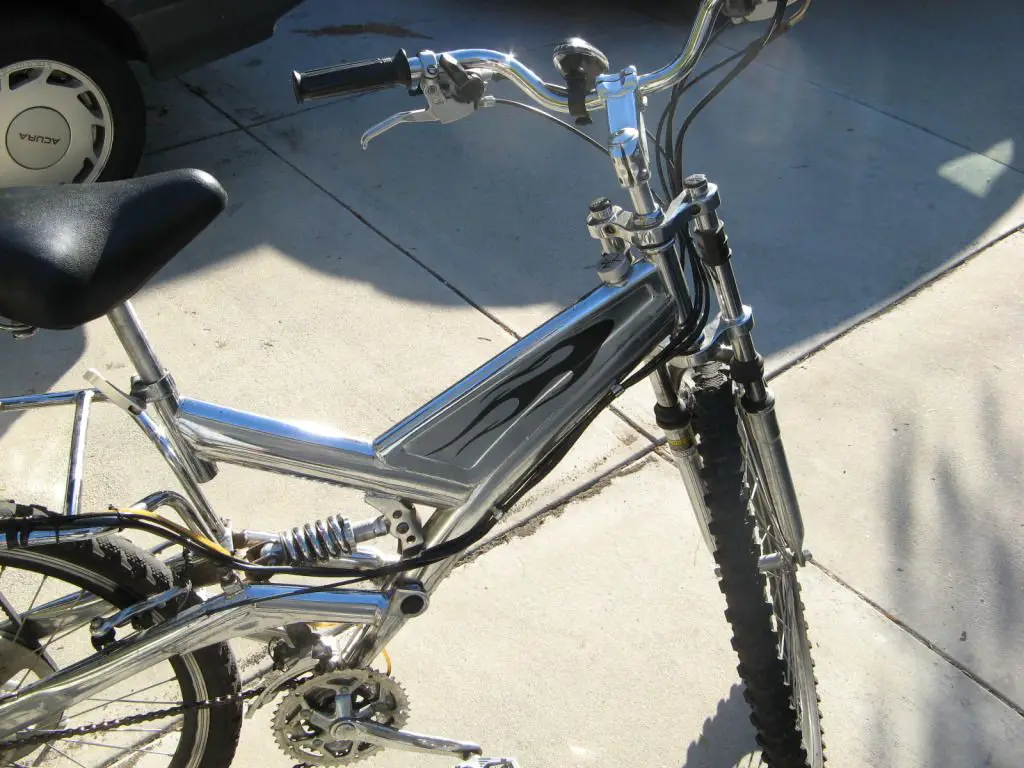

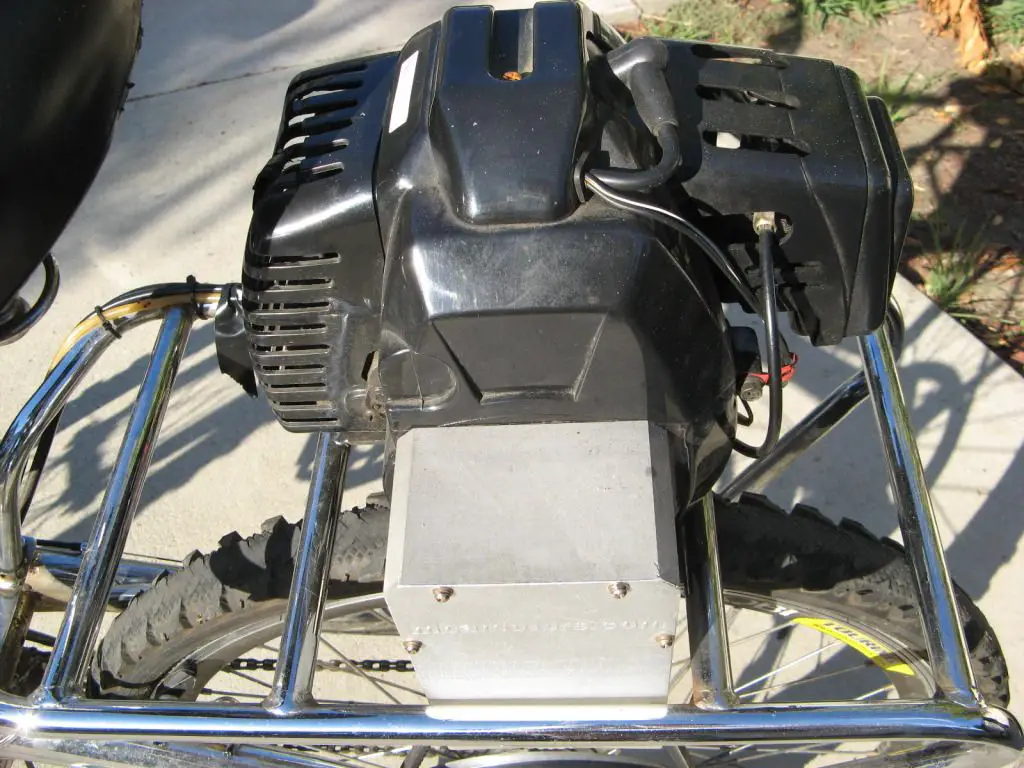

    has battery, button start, grip throttle, transmission for nuteral, gas tank
    incorporated in the frame. suspension.

    Anyhow, the problem is that it has no torque to go up hill....its great going
    flat, and some grade, but where I live now...its not cutting it.

    can anyone help??

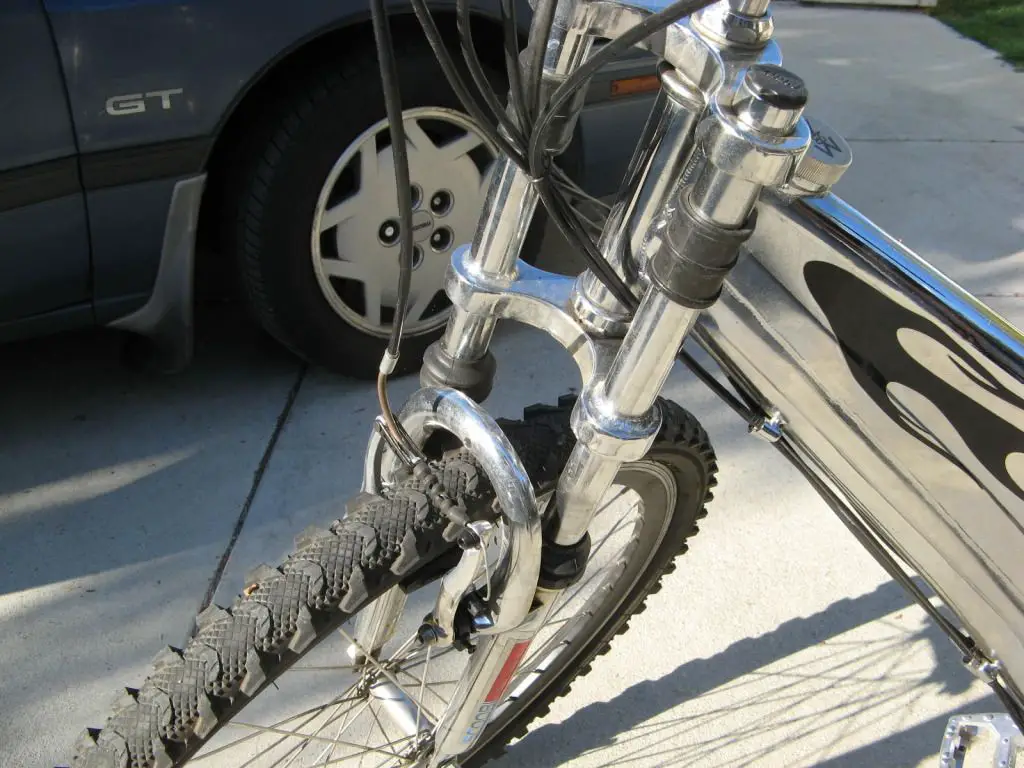

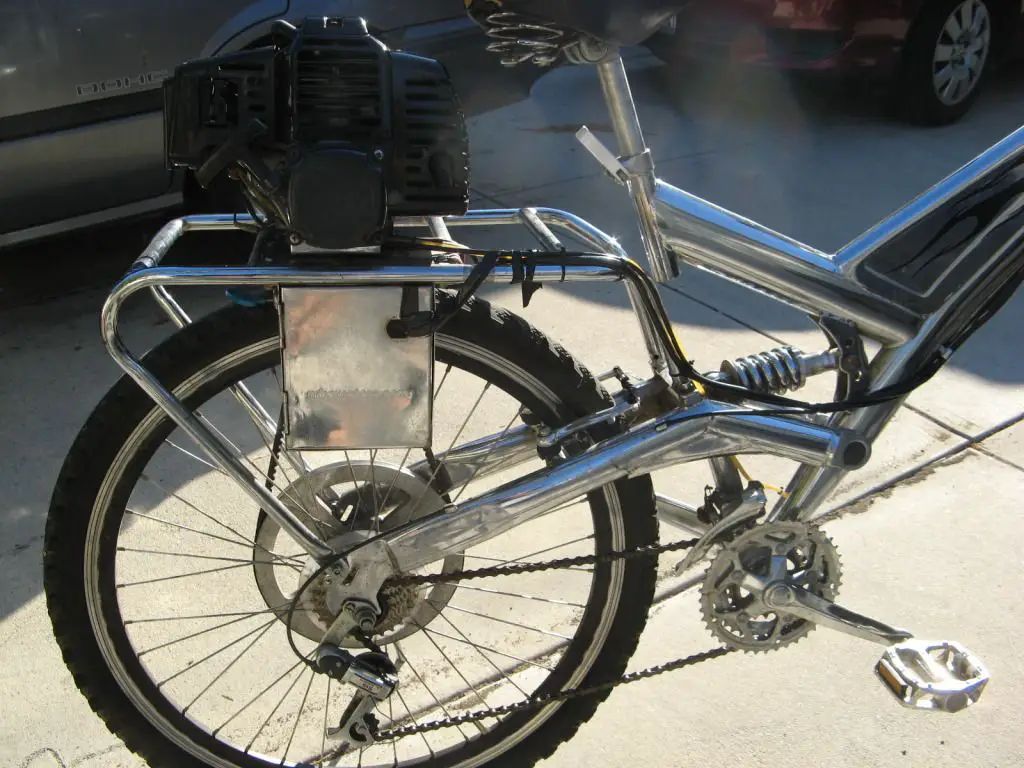

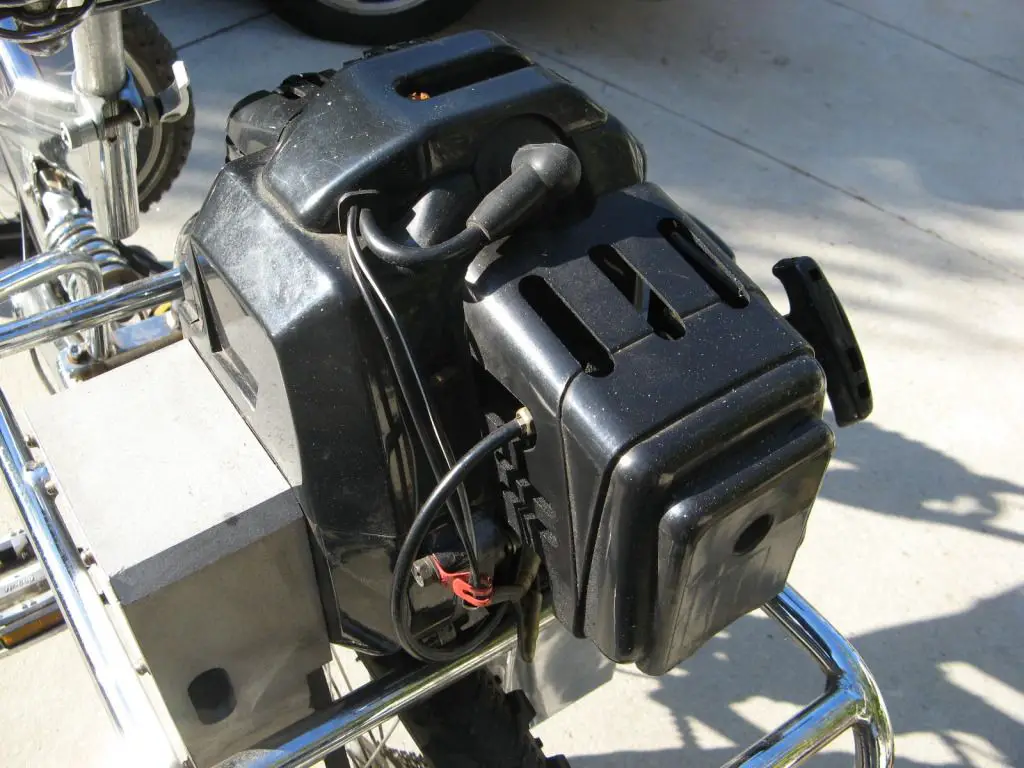

    [​IMG]
    [​IMG]
    [​IMG]

  2. 5-7HEAVEN

    5-7HEAVEN Well-Known Member

    Joined:
    Aug 2, 2008
    Messages:
    2,364
    Likes Received:
    37
    Firstly, you need to pedal-assist, but your chainring sprocket is too small. If you can install a larger chainring sprocket, that'd help.

    Methinks you have a Mitsubishi clone w/electric starter and pocket bike tranny. Any specs on the engine and sprockets? What size engine chain is that? My first impression is that you could climb hills better if you change your gearing. However, your speed would decrease.

    What are you expecting your bike to do?:-||

  3. bandito

    bandito New Member

    Joined:
    May 22, 2009
    Messages:
    783
    Likes Received:
    0
    What kit is that? Looks belt driven, MBA motors?

  4. bandito

    bandito New Member

    Joined:
    May 22, 2009
    Messages:
    783
    Likes Received:
    0
    WHAT KIT IS THIS? I'm curious to see new kits.

  5. calpolymike

    calpolymike New Member

    Joined:
    Oct 22, 2011
    Messages:
    41
    Likes Received:
    0
    not a kit...the bike was built from cad drawings.

    yes mba motors, however, they are out of business. The website has been down for
    quiet a while now. I shoulda saved the info on the website beforehand. but yah....of course
    I didnt.

    i dont even have the manual

  6. bandito

    bandito New Member

    Joined:
    May 22, 2009
    Messages:
    783
    Likes Received:
    0
    Ok thanks, I like the way that belt drive is. It is a v belt right?

  7. calpolymike

    calpolymike New Member

    Joined:
    Oct 22, 2011
    Messages:
    41
    Likes Received:
    0
    whats a v belt

  8. calpolymike

    calpolymike New Member

    Joined:
    Oct 22, 2011
    Messages:
    41
    Likes Received:
    0
    it looks like a belt for a car...like an alternator belt

  9. 5-7HEAVEN

    5-7HEAVEN Well-Known Member

    Joined:
    Aug 2, 2008
    Messages:
    2,364
    Likes Received:
    37
    How fast is it on flat ground?

    How fast is it going uphill?

    How fast would you like it to go, on flat ground or uphill?

    Off the top of my head, you need a bigger driven sprocket, smaller drive sprocket, or a more powerful engine.

    And a larger chainring sprocket for pedal assist.

  10. calpolymike

    calpolymike New Member

    Joined:
    Oct 22, 2011
    Messages:
    41
    Likes Received:
    0
    it does 35+ on flat ground...

    it can go up hill, a slight uphill....but at a steep grade, it just dies. :(

    i wish it was chain, and not belt.

  11. bandito

    bandito New Member

    Joined:
    May 22, 2009
    Messages:
    783
    Likes Received:
    0
    Actually belt drive is the shizzits, quieter and more efficient.

  12. 5-7HEAVEN

    5-7HEAVEN Well-Known Member

    Joined:
    Aug 2, 2008
    Messages:
    2,364
    Likes Received:
    37
    JMO, 35mph+ on flat ground is EXCELLENT!

    To improve this bike's performance, you must be willing and able to "re-engineer" the drive system. To help you, the members here need more input, as to the size of the drive pulley and driven pulley. I am presuming that you have a 5:1 pocketbike/scooter gearbox on the engine.

    There are always drawbacks when modifying anything. If you alter the gearing, low speed performance will increase, but top speed will suffer. The engine will also be revving higher. Unsure if your engine can handle the added stress.

    Exactly what engine do you have?

  13. calpolymike

    calpolymike New Member

    Joined:
    Oct 22, 2011
    Messages:
    41
    Likes Received:
    0
    really..

    hmm. news to mee....

    im thinking the belt is slipping, or perhaps something inside the tranny.

    it can sit idle, when i turn it on with the starter button. Idle as long as I
    please, then i sometimes pedal start it. Then give it gave, or just give it
    gas from the jump.

    so yeah. im thinking it has some sort of expanding tranny....like on a moped
    perhaps. I dunno, i never taken it apart or have the mechanical ability to do so.

    for some reason, i could be easily mistaken. But i remember the engine being
    a 65cc or 80cc engine. i dunno...howver i dont think its a 50 for shure.

  14. calpolymike

    calpolymike New Member

    Joined:
    Oct 22, 2011
    Messages:
    41
    Likes Received:
    0
    ive gotten up to 41-43 before with those speed trap trailers on the side of the road.

  15. 5-7HEAVEN

    5-7HEAVEN Well-Known Member

    Joined:
    Aug 2, 2008
    Messages:
    2,364
    Likes Received:
    37
    The majority of engines that look like yours are 47cc or less. The only engine I've seen with an electric starter is a Mitsubishi TLE43 "clone". I'm presuming that this is your engine, and it produces 2hp.

    Your engine has a centrifugal clutch. It allows the bike to sit at a stop with the engine idling.

    Actually, you seem to be getting EXCELLENT performance from your MB. When geared for flat ground, ALL engines your size have limited hillclimbing performance. JMO, the simplest and cheapest way to improve hillclimbing is to install a larger chainring sprocket and pedal-assist.

    It's hard to help you if you don't provide specs. :-||

    #15 5-7HEAVEN, Oct 22, 2011
    Last edited: Oct 22, 2011
  16. calpolymike

    calpolymike New Member

    Joined:
    Oct 22, 2011
    Messages:
    41
    Likes Received:
    0
    thanks for your feedback, i appreciate it.

    i wish i had specs, i really do.

    ill take better pics today, and post them up. as im heading to that area today.

    And you are right, its great on flat and some grade. But a steep hill for over 1/2 a mile.
    forget it.

  17. bandito

    bandito New Member

    Joined:
    May 22, 2009
    Messages:
    783
    Likes Received:
    0
    Monster I think sells a clone w/electric start that is 52cc I think, almost bought one while ago but the reviews were mixed on quality on this forum so I nixed that idea.

  18. 5-7HEAVEN

    5-7HEAVEN Well-Known Member

    Joined:
    Aug 2, 2008
    Messages:
    2,364
    Likes Received:
    37
    QUOTE=calpolymike;336507]thanks for your feedback, i appreciate it.

    i wish i had specs, i really do.

    ill take better pics today, and post them up. as im heading to that area today.

    And you are right, its great on flat and some grade. But a steep hill for over 1/2 a mile.
    forget it.[/QUOTE]

    Ok, do this so we can help you:

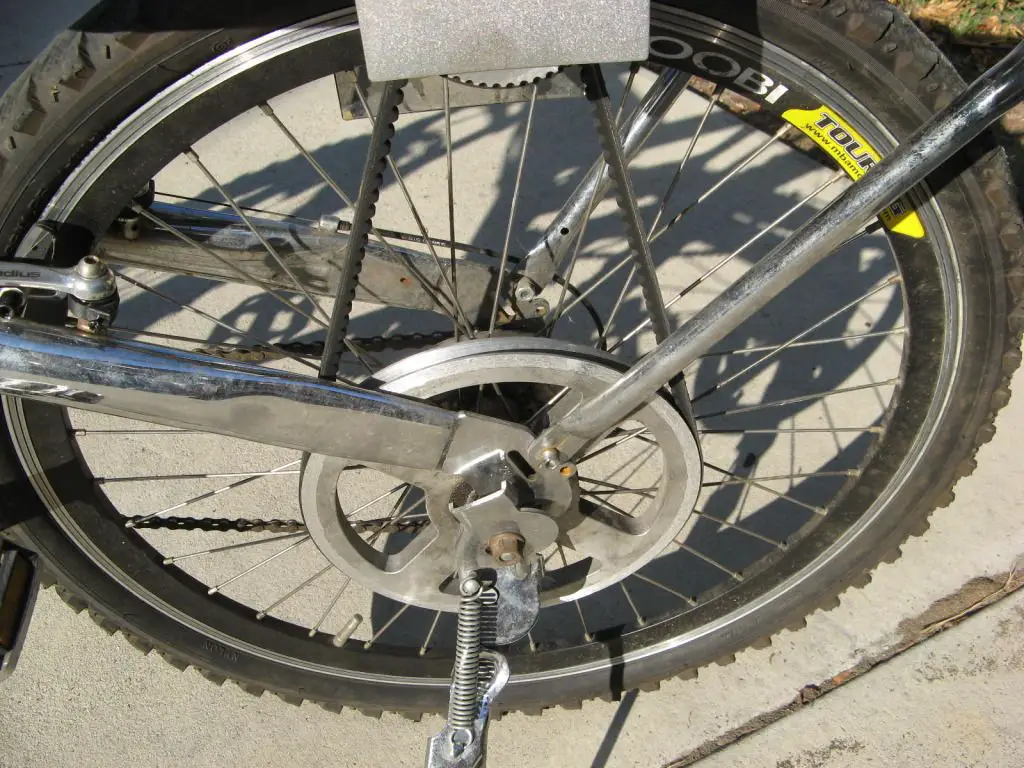

    Take off the belt cover and measure the pulley.

    Measure the large pulley. If difficult to measure across, measure the circumference of the pulley.

    Even the more powerful weed-whacker type engines have difficulty climbing hills. All my engines, even my 4.5 GP460 engine were awesome on the flats on friction drive. If I had a running start @ 30mph, a small hill was not a problem. Without a headstart, forget it. Speed would drop below 10mph, even with pedal-assist.

    Without a shift kit, you definitely need to pedal-assist. With my shift kit and a powerful engine, hills are still an issue, but not as bad as single-speed belt/chain/friction drive.

    #18 5-7HEAVEN, Oct 22, 2011
    Last edited: Oct 22, 2011
  19. calpolymike

    calpolymike New Member

    Joined:
    Oct 22, 2011
    Messages:
    41
    Likes Received:
    0

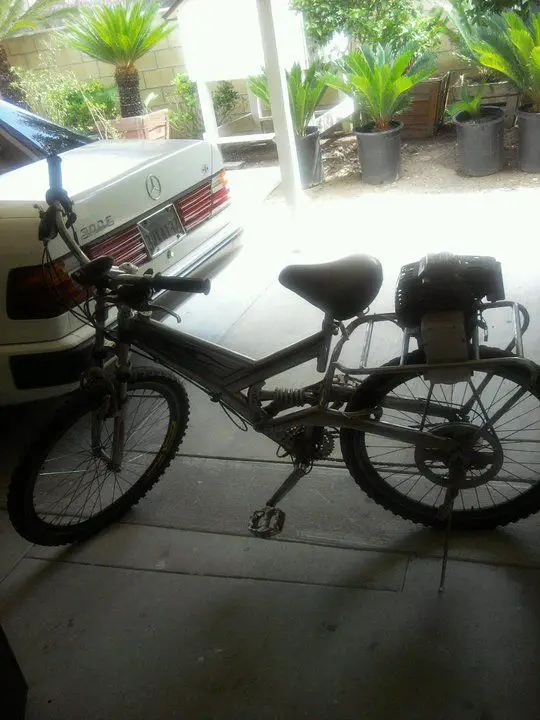

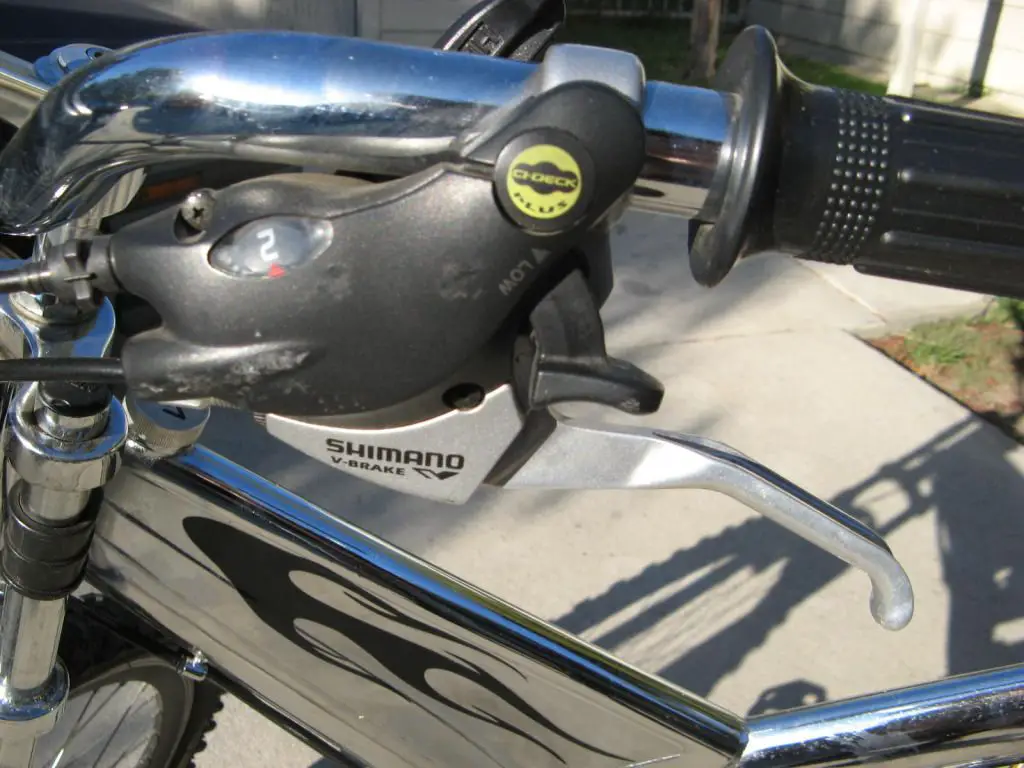

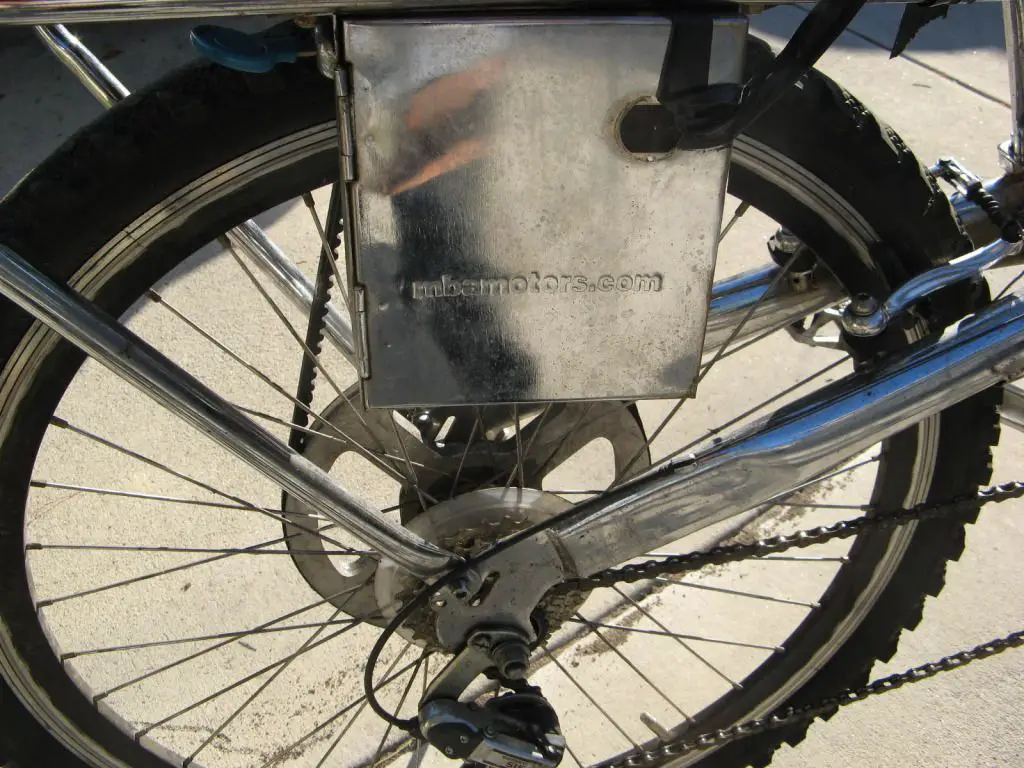

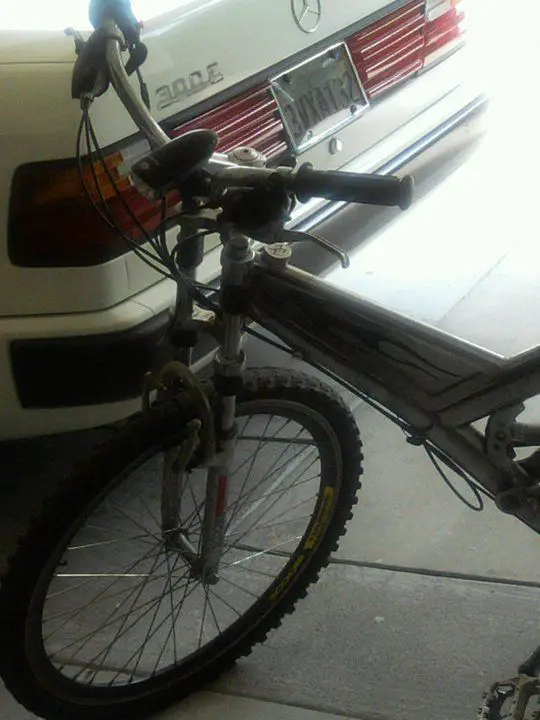

    CLICK PICTURES TO MAKE THEM BIGGER IF YOU WISH

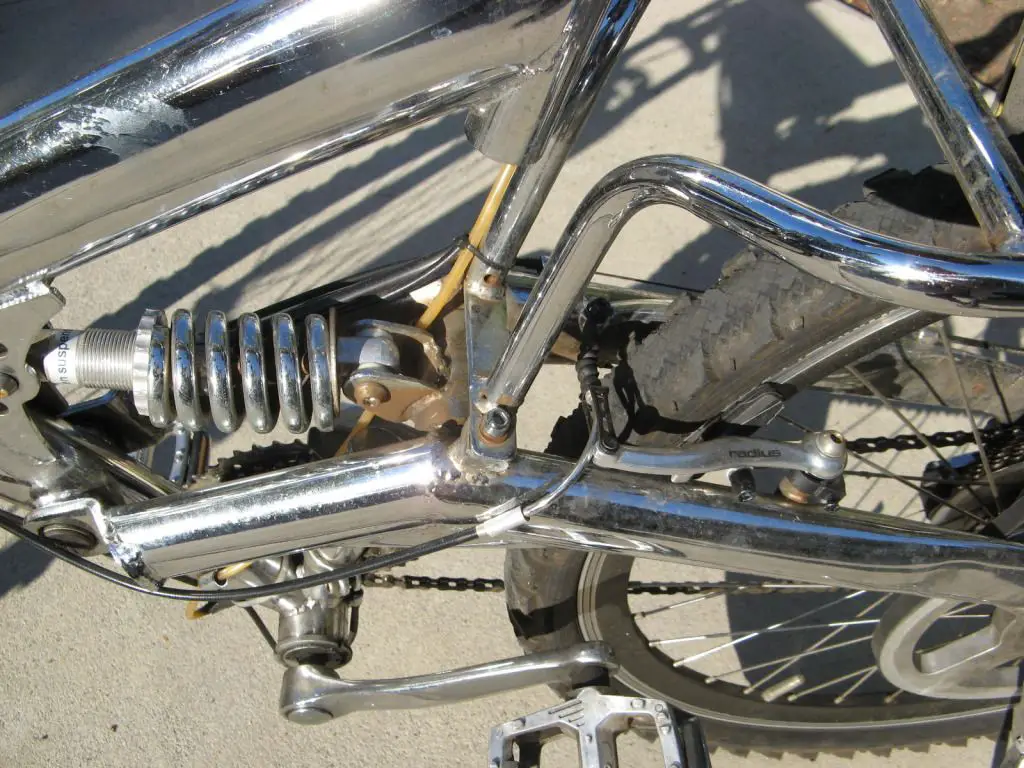

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    #19 calpolymike, Oct 23, 2011
    Last edited: Oct 23, 2011
  20. calpolymike

    calpolymike New Member

    Joined:
    Oct 22, 2011
    Messages:
    41
    Likes Received:
    0
    CLICK PICTURES TO MAKE THEM BIGGER IF YOU WISH
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    #20 calpolymike, Oct 23, 2011
    Last edited: Oct 23, 2011
