Make your own bobber style seat.

Discussion in 'Motorized Bicycle Welding, Fabrication and Paintin' started by Flying Dutchman, Aug 25, 2014.

  1. Flying Dutchman

    Flying Dutchman New Member

    Joined:
    May 21, 2014
    Messages:
    48
    Likes Received:
    0
    Well okay, after some significant miles on my BTR bike my hiney was not feeling it, heck it was not feeling anything for that matter because it was numb.

    I looked into a wider cruiser bike seat but after a long search what was available simply did not look right on this bike. They all looked too blocky on the bike.

    Anyway, I then started looking at bobber style seats for actual motorcycles.

    I found a few but the prices were way too high. I looked at the construction of them and it seemed not too complicated.

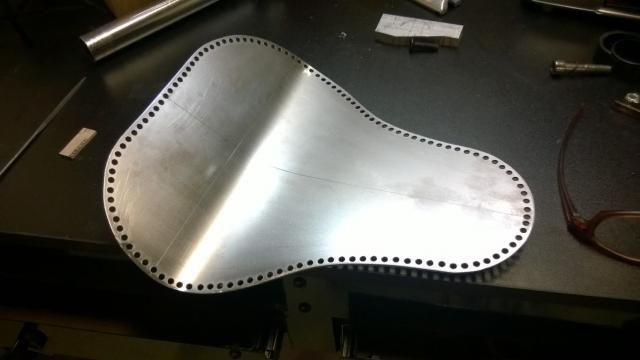

    So off I went to Home Depot to pick up some 16 gauge steel sheet metal and to a fabric store to get some vinyl covering.

    I had the seat post and brace from the previous configuration so aside from that and my time, this only set me back $13.00.

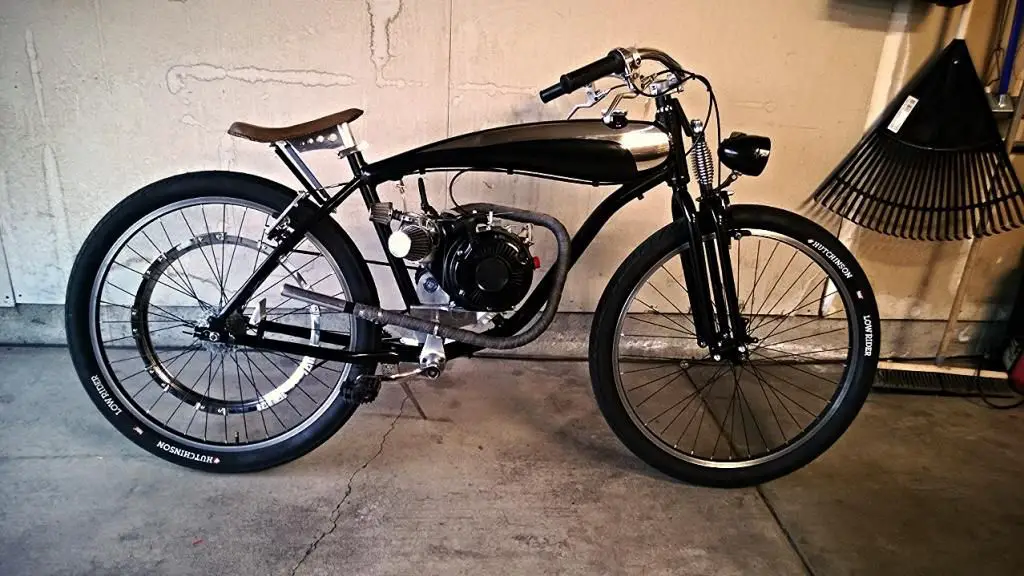

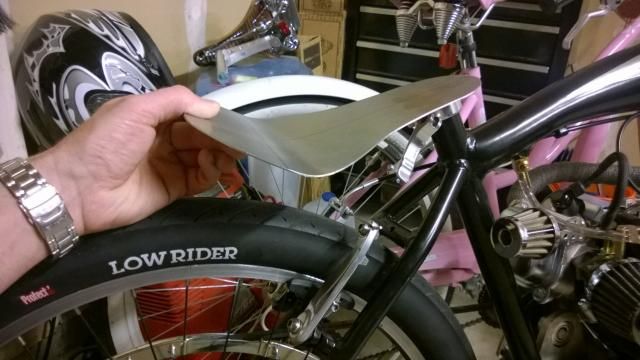

    Pictures tell it better so here you go.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  2. Flying Dutchman

    Flying Dutchman New Member

    Joined:
    May 21, 2014
    Messages:
    48
    Likes Received:
    0

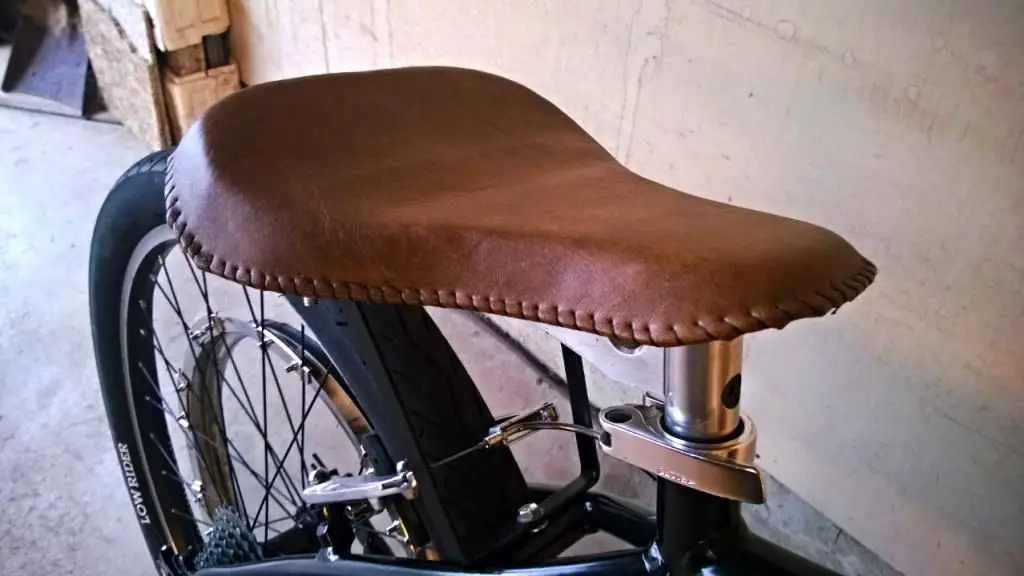

    Then I covered the seat with some nice brown vinyl by spray gluing it to the seat base and wrapping the edges. Then once that was done I simply stitched around the edges by going through the holes of the metal seat pan.

    [​IMG]

    [​IMG]

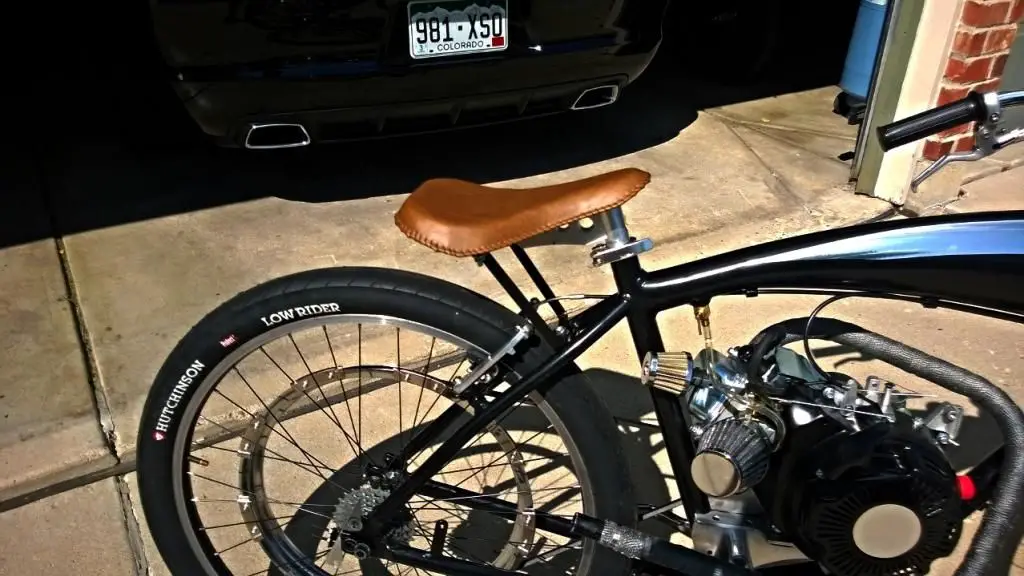

    The comfort level riding this bike now went way, way up. The pictures don't do it justice. I'll take some better ones tonight.

    #2 Flying Dutchman, Aug 25, 2014
    Last edited: Aug 25, 2014
  3. Going2Hell

    Going2Hell Member

    Joined:
    Nov 22, 2013
    Messages:
    144
    Likes Received:
    0
    Nice post... and seat post!

    Really though, Thanks. This was the next step in my build and was stumbling at the seat post/pan junction.

    In my mind I had come up with using a springer seat assembly, making my own pan and attaching it somehow.

  4. Flying Dutchman

    Flying Dutchman New Member

    Joined:
    May 21, 2014
    Messages:
    48
    Likes Received:
    0
    Thanks,

    I might make it so that the seat pan can pivot where it attaches to the seat post and then use spring supports later. I just did not have to hart to start tearing apart that pricey Gyes seat that was on there before.

  5. ocho ninja

    ocho ninja New Member

    Joined:
    Jan 14, 2012
    Messages:
    564
    Likes Received:
    0
    I would be interested in seeing how your seat with a pivot and springs would turn out

  6. 2door

    2door Moderator
    Staff Member

    Joined:
    Sep 15, 2008
    Messages:
    16,301
    Likes Received:
    26
    Nice work, neighbor. It really looks great.
    As for springs you don't need to tear up an expensive seat. The springs from any old bike saddle can be made to work. I've used them and I've also used automotive valve springs. Both are cheap and easily found.

    I'll be interested in seeing what you come up with. Comfy seats are a must for us bony butted guys and I like to see what others come up with to soften the ride.
    Thanks for sharing the build on your seat. Show us the progress if you add springs.

    Tom

  7. AssembleThis

    AssembleThis New Member

    Joined:
    May 11, 2014
    Messages:
    167
    Likes Received:
    0
    Hi Flying Dutchman!

    Very nice custom seat. I'm impressed with the craftsmanship, very professional work. Like the style too.

    Dave
    AssembleThis

    .xx.

  8. racie35

    racie35 Active Member

    Joined:
    Nov 17, 2012
    Messages:
    1,700
    Likes Received:
    0
    You didn't mention the foam used and how? Glued on also? Shaped?

  9. silverbear

    silverbear The Boy Who Never Grew Up

    Joined:
    Jul 9, 2009
    Messages:
    8,188
    Likes Received:
    10
    Nice job on a really good looking seat...
    SB

  10. Flying Dutchman

    Flying Dutchman New Member

    Joined:
    May 21, 2014
    Messages:
    48
    Likes Received:
    0

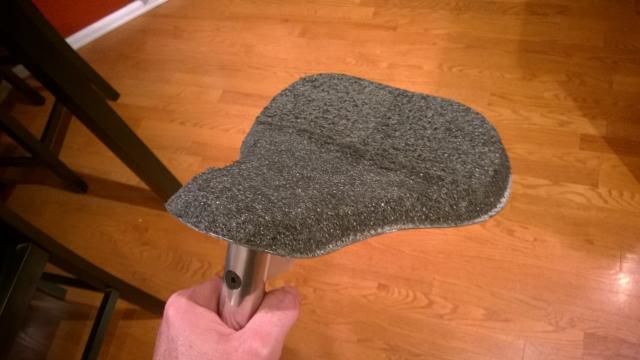

    Thanks again. The foam was spray glued to the seat tray and simply shape cut with a long bread knife.

    The foam is a closed cell 2# polyethylene foam.

    Then I spray glued the vinyl on top of that, folded it around the edges and glued them down. Then I followed up with the stitching. My first attempt at a seat but I thought it turned out good.

    [​IMG]

    [​IMG]

  11. racie35

    racie35 Active Member

    Joined:
    Nov 17, 2012
    Messages:
    1,700
    Likes Received:
    0
    Thanks for the info...I may try it on my simplex seat

  12. curtisfox

    curtisfox Well-Known Member

    Joined:
    Dec 29, 2008
    Messages:
    4,077
    Likes Received:
    43
    That's awesome,thanks for sharing, can't wait to see w hat you do with springs....... Curt

  13. Gbrebes

    Gbrebes Member

    Joined:
    Jul 16, 2010
    Messages:
    579
    Likes Received:
    21
    Man, that's a whole lot of holes you drilled there!

    And they all look so straight and lined up with the contour of the seat outline.

    The seat does look very nice, you should be proud.

    How does the seat post currently attach to the seat pan? Is there a bolt there?

    Gilbert

  14. Flying Dutchman

    Flying Dutchman New Member

    Joined:
    May 21, 2014
    Messages:
    48
    Likes Received:
    0

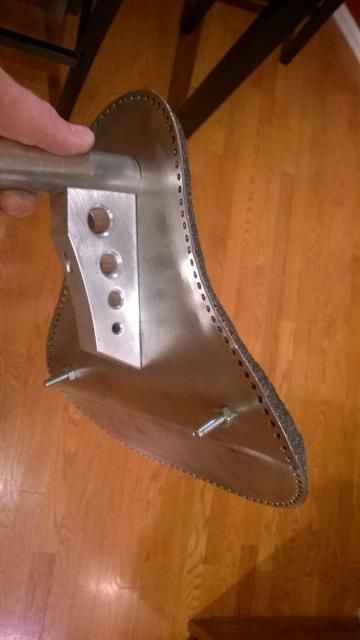

    The seat pan is actually attached with two bolts that go into the tapered brace that is attached to the seat post.

    Yes, that is a lot of holes. Thank goodness for drill presses right?

  15. sentnl

    sentnl New Member

    Joined:
    Oct 13, 2014
    Messages:
    29
    Likes Received:
    0
    Awesome!! I am 200# on average and my Huffy cranbrook seat feels like I am taco'ing the thing. This gave me some Idea on how to strengthen it. Thank You from Durango, CO!!!!

  16. sentnl

    sentnl New Member

    Joined:
    Oct 13, 2014
    Messages:
    29
    Likes Received:
    0
    And as a HIGHJACK Thread question. I need advice on reinforcing said cranbrook. type of welder, where to add strength on the frame to make more "solid"

  17. buba

    buba Member

    Joined:
    Jul 2, 2010
    Messages:
    916
    Likes Received:
    1
    A beat up old garden shovel from a yard sale can make an awesome seat pan for upholstering with leather or???? just a little shaping to taste or butt size with your angle grinder with gloves and eye protection

    ride safe

  18. young grease monkey

    young grease monkey New Member

    Joined:
    Sep 20, 2011
    Messages:
    362
    Likes Received:
    0
    Awesome seat man! I am looking at making a long seat that will go to the tank and possibly fit 2 people kinda like a dirt bike. how is that closed cell foam? is it pretty cushy or what?

  19. young grease monkey

    young grease monkey New Member

    Joined:
    Sep 20, 2011
    Messages:
    362
    Likes Received:
    0
    oh and sentnl, you want a tig welder. probably add gussets by the head tube. tig welders are expensive, gas bottle is $250 filled and good ac/dc ones that run 120 or 240v start at 800

  20. LandSpeedRecord

    Joined:
    Dec 11, 2014
    Messages:
    604
    Likes Received:
    0
    Great job and inspirational. I plan a similar seat on a Skyhawk frame for the build I just started.
