Look at this Magna Glacier Point Bike

Discussion in 'Motorized Bicycle General Discussion' started by reg454, Jun 20, 2009.

  1. reg454

    reg454 New Member

    Joined:
    Jan 11, 2009
    Messages:
    269
    Likes Received:
    0

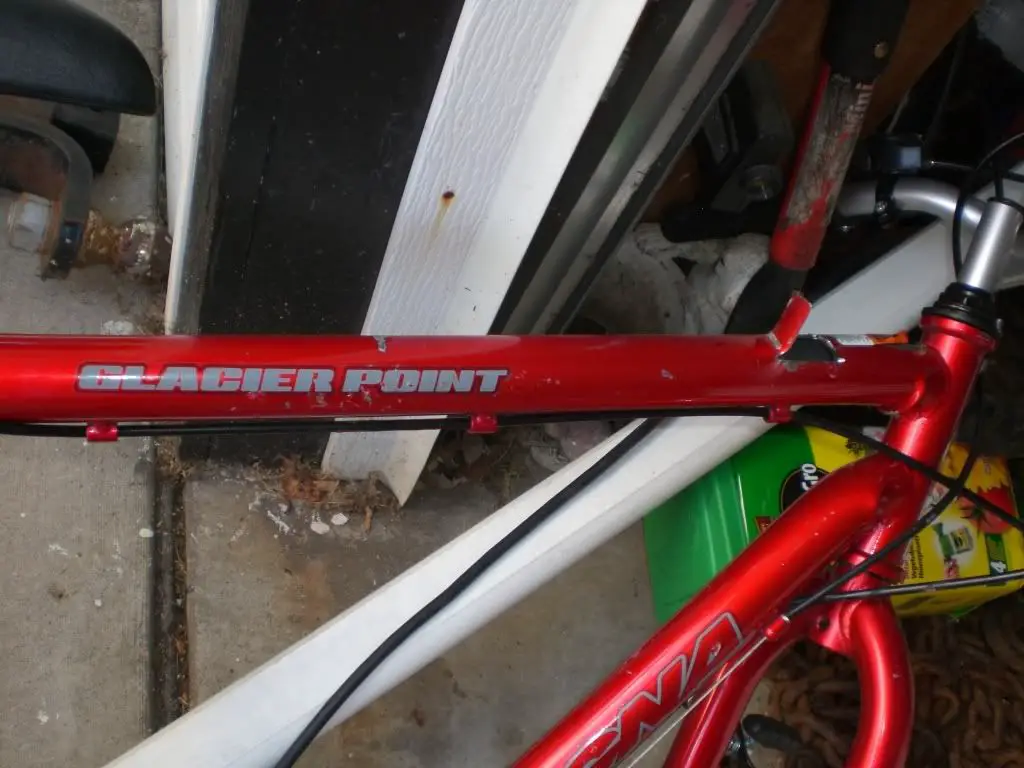

    Aluminum bike frame look at pics.
    [​IMG]
    [​IMG]

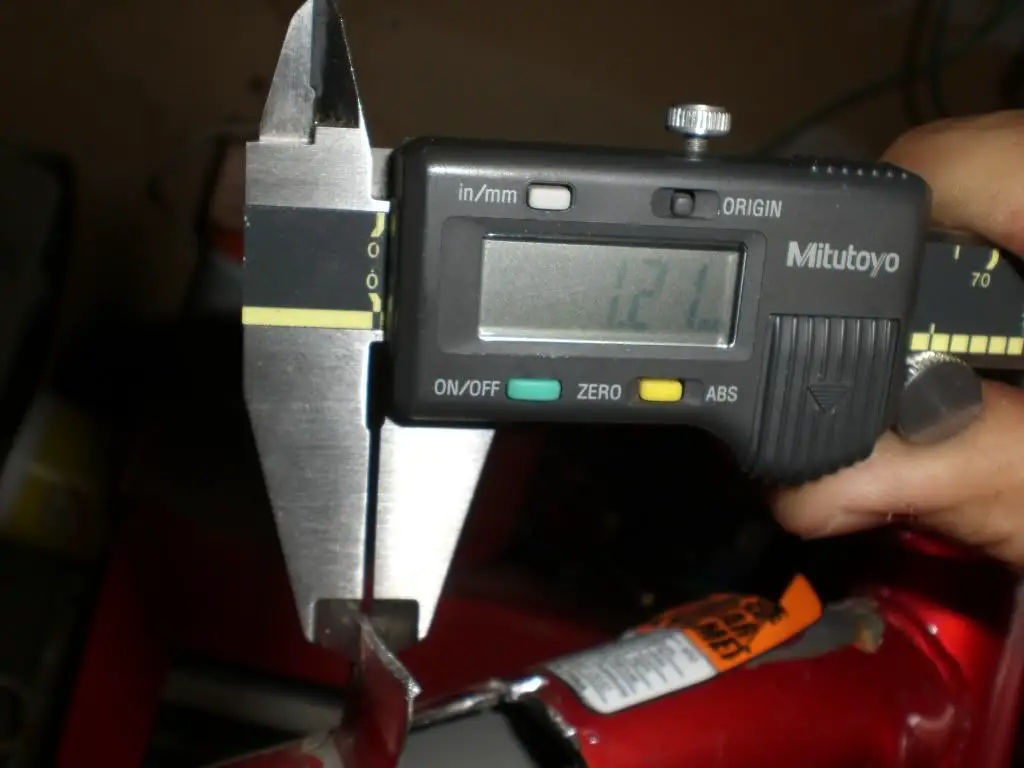

    I already sent them an email asking what is the thickness of the main tubes for the bike remind you it is aluminum.correction it is steal i took a magnet to it but still
    I will post the email they send me when i get it. Isent it 5min ago.

    #1 reg454, Jun 20, 2009
    Last edited: Jun 21, 2009
  2. xlite

    xlite New Member

    Joined:
    Jun 18, 2009
    Messages:
    736
    Likes Received:
    0
    I have purchased several dozen of those and assure you it is not aluminum. The front tube has gotten smaller over the last few years and fits most kits no problem now.

  3. misteright1_99

    misteright1_99 New Member

    Joined:
    Mar 21, 2008
    Messages:
    716
    Likes Received:
    0
    I dont think they are aluminum either. I have one that is my first build, and have over 1000 miles on it and only had to replace the wheel bearings so far..........


    Attached Files:

  4. Creative Engineering

    Joined:
    Sep 20, 2008
    Messages:
    1,668
    Likes Received:
    0
    Reg,

    Sounds like from experience, (xlite, misteright1_99), it's steel. .050" wall is fine for a steel frame.

    Next time find a magnet.

    I just gotta ask...what will this opening be used for?

    EDIT: I get it...you were just checking the wall thickness on a scrap frame...I just noticed the buckling in the frame at the head tube.

    Jim

    #4 Creative Engineering, Jun 20, 2009
    Last edited: Jun 20, 2009
  5. reg454

    reg454 New Member

    Joined:
    Jan 11, 2009
    Messages:
    269
    Likes Received:
    0
    correction

    #5 reg454, Jun 20, 2009
    Last edited: Jun 21, 2009
  6. xlite

    xlite New Member

    Joined:
    Jun 18, 2009
    Messages:
    736
    Likes Received:
    0

    HaHaHa... Bearings have gone on several of my Target Magnas over the years. Tip: must use that green marine stuff otherwise the grease just disappears. Keep them adjusted (not too tight) and put a set of bearings in the road pack. Only takes a few minutes to replace.

    The real problem is when the race goes. Being part of the hub it cannot be replaced. It seems to be the only item on these bikes which can leave you stranded. Ask me how I know.

    #6 xlite, Jun 21, 2009
    Last edited: Jun 21, 2009
  7. misteright1_99

    misteright1_99 New Member

    Joined:
    Mar 21, 2008
    Messages:
    716
    Likes Received:
    0
    What happened was the cages went, tossed the cages and replaced without the cages by adding extra bearings, and some quality grease, and no more problems..

  8. xlite

    xlite New Member

    Joined:
    Jun 18, 2009
    Messages:
    736
    Likes Received:
    0
    Yes, that's what I did too. Didn't have proper replacements so pulled some balls from a front bearing. Now I carry spares in my pack but, wouldn't you know, not a single failure in over 3 years. "Umbrella to the beach" syndrome. Or maybe it's the new type grease.

    I wish there was some way to fix the hubs with the bad races.
