Layback Seat Post

Discussion in 'Motorized Bicycle General Discussion' started by sportscarpat, Nov 5, 2009.

  1. sportscarpat

    sportscarpat Bonneville Bomber the Salt Flat record breaker

    Joined:
    Jun 25, 2009
    Messages:
    1,722
    Likes Received:
    25
    Ever try to find a layback seat post in 13/16" for an old Schwinn? All I could find were 7/8" posts and they were too tall. I finally just built a couple. I would call it more of an offset seat post than a layback seat post. This gets the seat way back at the rear tire. I was worried that the flat bar extension piece would bend over time so I gave it a stiffening break. Time to road test it.


    Attached Files:

  2. Spunout

    Spunout MB Builder Extraordinaire

    Joined:
    Jul 21, 2008
    Messages:
    475
    Likes Received:
    1
    is that a GT40 in the pics? sweet. thanks for showin' her off dnut

  3. Maxvision

    Maxvision New Member

    Joined:
    Jun 13, 2009
    Messages:
    551
    Likes Received:
    0

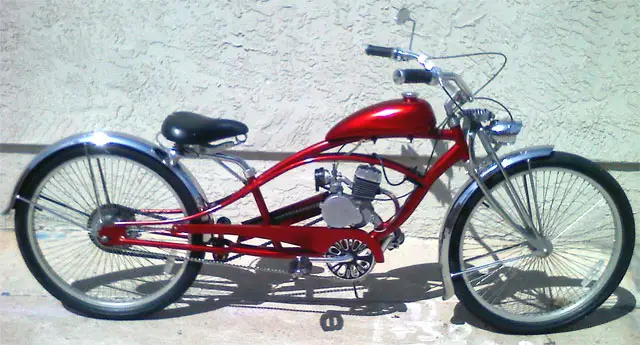

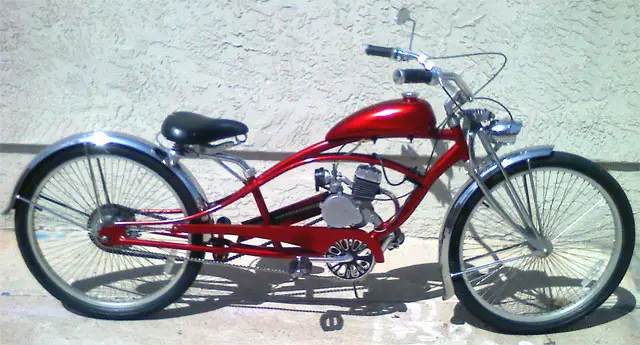

    I put a layback post on my stretch cruiser. The post sat too high because of it's support bracket. I just cut the bottom weld of the support and put a rubber end cap on it. The support bracket sits on my frame and allows the post to drop REAL low.


  4. sportscarpat

    sportscarpat Bonneville Bomber the Salt Flat record breaker

    Joined:
    Jun 25, 2009
    Messages:
    1,722
    Likes Received:
    25
    Sweet cruiser, Maxvision. If my attempt starts to bend I may attach struts to the bottom rear of the seat frame and run the struts down to the frame upper chain stays. I was thinking I could use small shaft collars to clamp on the frame then weld the struts to the collars.

  5. aquarianmonkey

    aquarianmonkey New Member

    Joined:
    Sep 27, 2009
    Messages:
    29
    Likes Received:
    0
    Hey can you post some pics of that gt40 I love those cars

  6. 2door

    2door Moderator
    Staff Member

    Joined:
    Sep 15, 2008
    Messages:
    16,301
    Likes Received:
    25
    I make my own from 1" shaft stock. I turn it down in a lathe to 7/8" one one end about 7" long, heated and bent to the proper angle. It might be a little overkill but I've never bent one.
    Tom


    Attached Files:

    #6 2door, Nov 6, 2009
    Last edited: Nov 6, 2009
  7. BarelyAWake

    BarelyAWake New Member

    Joined:
    Jul 21, 2009
    Messages:
    7,209
    Likes Received:
    4
    Tom hasa lathe o.o

    My envy knows no limit...

  8. Dan

    Dan Staff
    Staff Member

    Joined:
    May 25, 2008
    Messages:
    12,473
    Likes Received:
    49
    Awesome idea Sport. Really like that. .flg.

    I have one of 2Door's. (Thanks again Tom!) They really make for a better ride.


    Attached Files:

  9. bairdco

    bairdco a guy who makes cool bikes

    Joined:
    Aug 18, 2009
    Messages:
    6,333
    Likes Received:
    19
    i've been making layback seatposts out of recycled handlebars since the my BMX days in the late 70's.

    you can get 2 to 4 out of them, depending on what kind of bars and what kind of bend you want.

    this one's from some old Wald cruiser bars:


    Attached Files:

  10. sportscarpat

    sportscarpat Bonneville Bomber the Salt Flat record breaker

    Joined:
    Jun 25, 2009
    Messages:
    1,722
    Likes Received:
    25
    Hey 2door and bairdco, nice seat post ideas and they look pretty strong. 13/16" tube is just a weird size. 7/8" is pretty standard in the BMX world, or at least it used to be.

  11. bairdco

    bairdco a guy who makes cool bikes

    Joined:
    Aug 18, 2009
    Messages:
    6,333
    Likes Received:
    19
    yeah, schwinn was good about that weird sizing thing. i dunno how many people bought new tires for their cruisers, only to find out they don't fit, 'cause schwinn had to be different and make up some funky size...

    and good luck when your kickstand would break.

  12. neicull

    neicull New Member

    Joined:
    Sep 1, 2009
    Messages:
    37
    Likes Received:
    0
    Looks a lot like the ones we make. Board Track Seat Post | Ghent Cruisers ...

    The 13/16" tube post size is common among a lot of vintage bikes. I'm making a custom 5/8" one for a guy (now that's a odd size)... 7/8" is common on bmx type bikes and 1"(25.4mm) is the most common size now-a-days for modern cruisers. Where the seat clamps to the tube is usually 7/8". I know brooks and most saddles are setup for the 7/8" tube clamp. Also, if you have a 7/8" you can always order a shim to make it larger, those are real cheap and easily available.

  13. sportscarpat

    sportscarpat Bonneville Bomber the Salt Flat record breaker

    Joined:
    Jun 25, 2009
    Messages:
    1,722
    Likes Received:
    25
    neicull,
    That's the finished look I was after on mine. I almost built it just like yours but was worried it would bend over time. Guess if your selling them you have not had any problems. Nice job.

  14. Kevron99

    Kevron99 New Member

    Joined:
    Aug 11, 2009
    Messages:
    261
    Likes Received:
    0

    Wow sweet. Where did you get the tank? Where could I buy it? Thanks

  15. Kevron99

    Kevron99 New Member

    Joined:
    Aug 11, 2009
    Messages:
    261
    Likes Received:
    0

    I agree..Ghents seat post are nice looking...I just got mine yesterday and I cannot take my eyes out of it...Thanks Ghents I am looking forward on your tanks.

    Ron

  16. K.i.p

    K.i.p New Member

    Joined:
    Nov 8, 2009
    Messages:
    340
    Likes Received:
    0
    Just another aproach to moving a seat rearward and lower. This is my first build.


    Attached Files:

  17. neicull

    neicull New Member

    Joined:
    Sep 1, 2009
    Messages:
    37
    Likes Received:
    0
    Take some pics or post links. Let's see your build. Thanks for the kind words!

  18. Maxvision

    Maxvision New Member

    Joined:
    Jun 13, 2009
    Messages:
    551
    Likes Received:
    0
    Don't want to bust this thread by getting off the topic but I am a bit proud of my tank. Made it from a stock tank with some fiberglass and insulating foam. Thumbnail attached with instructions how to do it.


  19. Mike Hunt

    Mike Hunt New Member

    Joined:
    Jun 9, 2009
    Messages:
    184
    Likes Received:
    0
    has anyone used the ghent cruiser seat post on a mountain bike build?

  20. Dan

    Dan Staff
    Staff Member

    Joined:
    May 25, 2008
    Messages:
    12,473
    Likes Received:
    49
    Wait, is that a thing? Staying on topic? Again, I did not get a memo. Do we even attempt that here? LOL

    (If we do, I am in for so much guff)
