Huffy fender fail PHOTO

Discussion in 'Motorized Bicycle General Discussion' started by yodar, Jan 9, 2011.

  1. yodar

    yodar New Member

    Joined:
    Jul 26, 2010
    Messages:
    147
    Likes Received:
    0
    [​IMG]

    fracture not visible FROM UNDERNEATH because it is hidden beneath u-bracket

  2. 2door

    2door Moderator
    Staff Member

    Joined:
    Sep 15, 2008
    Messages:
    16,301
    Likes Received:
    26
    Nothing new, Yodar.
    There have been numerous reports of fender bracket failures. We recommend that if you run fenders to reinforce the fender and brackets. Search 'fender failure' and see what others have experienced and done to fix the problem. Bairdco did a nice tutorial on fenders. You can also PM Dan and let him give you a first hand report of what can happen if the front fender comes loose and wraps around the wheel. :(
    Tom

  3. yodar

    yodar New Member

    Joined:
    Jul 26, 2010
    Messages:
    147
    Likes Received:
    0
    I KNOW DAT! I thought a pitcher would help the nonbelievers

    You'll see my most recent pitcher of the bike with newly installed spring-fork, LACKS the fender`!

  4. wayne z

    wayne z New Member

    Joined:
    Dec 5, 2010
    Messages:
    1,746
    Likes Received:
    0

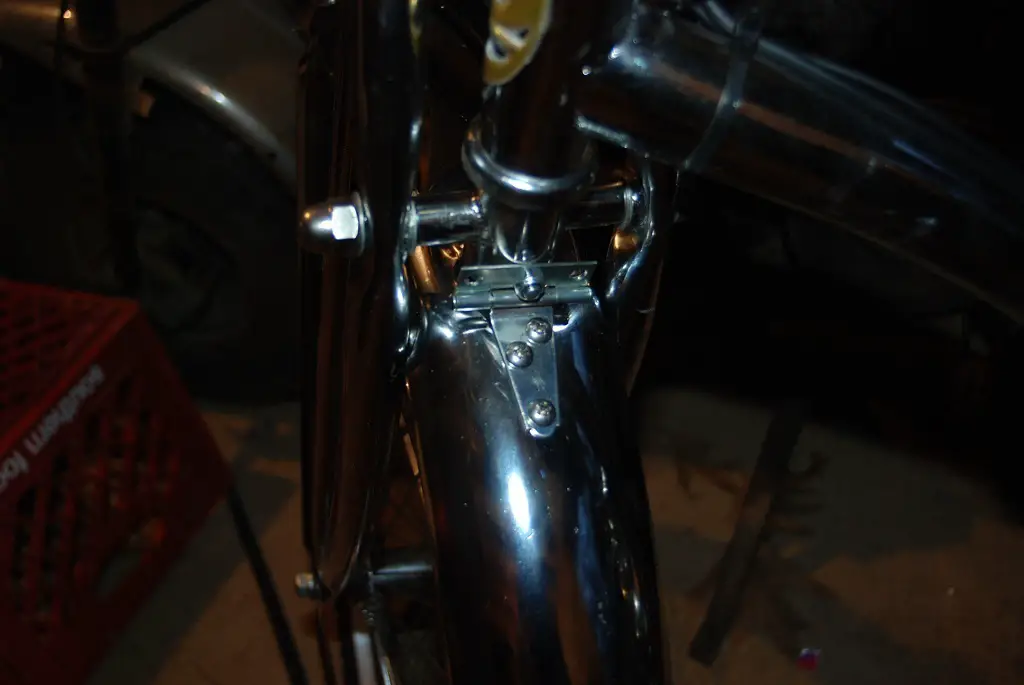

    Here's my fix for a fender on a springer. Should work on non springer too.
    Gonna trim the corners or bolt some ornaments there.

    #4 wayne z, Jan 9, 2011
    Last edited: Jan 9, 2011
  5. 2door

    2door Moderator
    Staff Member

    Joined:
    Sep 15, 2008
    Messages:
    16,301
    Likes Received:
    26
    Sorry, Yode.
    I misunderstood, duh :)
    Tom

  6. joabthebugman

    joabthebugman New Member

    Joined:
    Jun 21, 2010
    Messages:
    347
    Likes Received:
    0
    We can do what Wayne did using the L brackets I have or we can just make some out of the flat steel I just bought

  7. solokumba

    solokumba New Member

    Joined:
    Nov 24, 2010
    Messages:
    215
    Likes Received:
    0

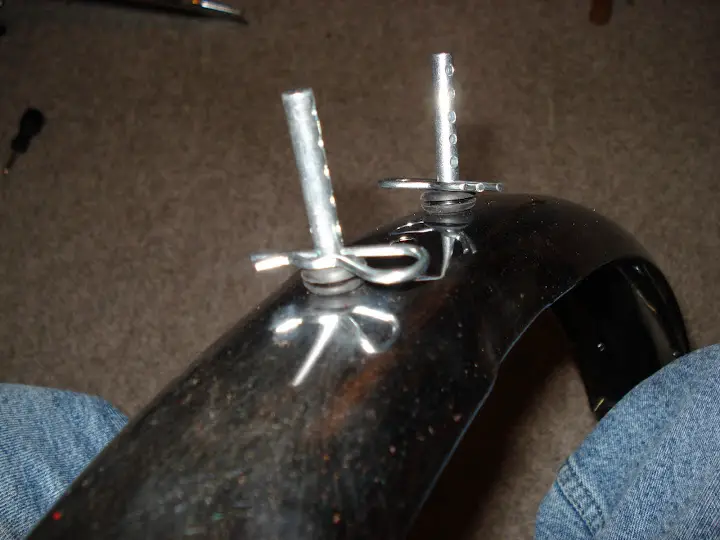

    [​IMG]
    Here is my solution...
    before I cut them to size.
    Now they are just long enough to hit the frame if things go bad.

  8. wayne z

    wayne z New Member

    Joined:
    Dec 5, 2010
    Messages:
    1,746
    Likes Received:
    0
    Sorry Joa ,look closer, That's NOT an L bracket.

    That's a T HINGE>

    To use ANY L-bracket on a springer fork is guaranteed FAIL.
    The fender moves with the springer travel, and the fork centertube bolt dont move at all.

    I wanted the fenders to stay,so I am experimenting with a T hinge there.

    I decided to trust the rear fender tab, and it let go after 3 miles, letting the fender get sorta intimate with the chain down there. One good ziptie to the other side of tab mount got me home.
    Now another good ziptie on the other side keeps it centered :~)

    Zipties would be a good backup safty for our fenders.

    #8 wayne z, Jan 9, 2011
    Last edited: Jan 9, 2011
  9. wayne z

    wayne z New Member

    Joined:
    Dec 5, 2010
    Messages:
    1,746
    Likes Received:
    0
    There's probably a guaranteed fail in my method shown above. Just came to me

    The fender hinge axis is so far away from the springer hinge, that something is going to crack from being stressed eventualy, prolly fenderstays.
    Hinge would work great for non moving fenders though..

    Ideal scenario would be a custom bracket hinged on the same axis as the springer.

    Or maybe a rubber/kevlar hinge like maybe a piece of automotive serpentine belt?

    #9 wayne z, Jan 9, 2011
    Last edited: Jan 9, 2011
  10. scottmanesis

    scottmanesis New Member

    Joined:
    Dec 30, 2010
    Messages:
    107
    Likes Received:
    0
  11. joabthebugman

    joabthebugman New Member

    Joined:
    Jun 21, 2010
    Messages:
    347
    Likes Received:
    0
    I have a Kustom Kruiser with a springer fork

    The fender is held on by a bolt that goes up into the fork tube

    With that same metal strap that I have we could make a bracket that indexes the hole that goes through the bottom of your center tube

    Or , OR, we could just find out what that fitting that goes up into the center tube is called and buy one of those,,, K.I.S.S.

  12. wayne z

    wayne z New Member

    Joined:
    Dec 5, 2010
    Messages:
    1,746
    Likes Received:
    0
    Hey, talk about KISS!

    I might be wrong but It looks like the fender and the main fork tubes move in unison. Could it be so easy as to use audel clamps directly from fender to fork tubes??

  13. joabthebugman

    joabthebugman New Member

    Joined:
    Jun 21, 2010
    Messages:
    347
    Likes Received:
    0
    There you go

    I even have some of those

  14. joabthebugman

    joabthebugman New Member

    Joined:
    Jun 21, 2010
    Messages:
    347
    Likes Received:
    0
  15. Nashville Kat

    Nashville Kat Active Member

    Joined:
    Apr 20, 2009
    Messages:
    1,428
    Likes Received:
    1
    Whats a fender?



    wait, I know. Mine plugs into my amp......

    :rolleyes:


    Attached Files:

    #15 Nashville Kat, Jan 9, 2011
    Last edited: Jan 9, 2011
  16. wayne z

    wayne z New Member

    Joined:
    Dec 5, 2010
    Messages:
    1,746
    Likes Received:
    0
    I ride to and from work in the French Qtr in NOLa, and the streets are quite often wet in the AM from city washdown trucks..
    I want to keep all that funky horse and human urine tainted water off me as I can :~)

  17. yodar

    yodar New Member

    Joined:
    Jul 26, 2010
    Messages:
    147
    Likes Received:
    0
    would you trust pop rivets for that?

    I always see screw-nut assemblys open up by themselves even with lock-tite

    Yodar

  18. wayne z

    wayne z New Member

    Joined:
    Dec 5, 2010
    Messages:
    1,746
    Likes Received:
    0
    I use nylock nuts and never have problems with them loosening..I always re-tighten fresh bolted stuff a few times after some use

  19. Dan

    Dan Staff
    Staff Member

    Joined:
    May 25, 2008
    Messages:
    12,495
    Likes Received:
    50
    My fix was drill 4 holes and U-bolt. Easy, fast fix that can't fail. (hehe, I hope) I face planted real good and had a sort of a blood blister the size of a softball and later a baseball where my ribs pinched the flesh against my hip bone for months. Really important we let new folks know about this over and over. (sorry about the graphic)

    Have this set up on a springer. Not that it has to, but could rotate. I used muffler sealer and double nutted. Where ever possible I put the bolts, bolt down with the nuts up and visible so I would hopefully see if they vibrated loose. So far, so good. http://motorbicycling.com/f11/fender-fortification-fun-23421.html

    Having fenders again, took me months to brave it again, is great! Go ridding on days with out em, ya wouldn't.
