Gas Tank Leaks from Mounting Bolt Spot Weld

Discussion in 'Motorized Bicycle Trouble Shooting' started by heathbar11, Aug 16, 2010.

  1. heathbar11

    heathbar11 New Member

    Joined:
    Aug 15, 2010
    Messages:
    1
    Likes Received:
    0
    I am hoping somebody has a solution. I am on my 3rd stock metal gas tank. Every one I install I tighten just enough for the tank not to move from the engine vibration. The weld that always fractures first, is for the bolt closest to my left leg (front tank mount) I have searched for plastic tanks and there does not not seem to be any. I was also thinking of tank sealer? I need a solution that works. Anyone have any success stories to share? Heath:-||

  2. scotto-

    scotto- Custom 4-Stroke Bike Builder

    Joined:
    Jun 3, 2010
    Messages:
    6,524
    Likes Received:
    0
    Welcome to the forum Heath! Yes, I've had this happen to one of my tanks, the right rear mounting bolt eventually devloped a crack in the welded area. I was able to repair it using a 2-part epoxy, it might have been JB weld in fact after I drained the tank thoroughly and wire brushed the crack and surrounds with a wire wheel. Before the epoxy set up I slipped a self-adhesive, fairly dense foam rubber disk that I had punched a hole in, over the bolt and covering the patch. I put these disks (about an 1/8" thick and an inch in diameter) over the remaining 3 mounting bolts to help cushion the vibration. It never leaked again and it's still in service.

    If that didn't work, I would have just brazed or welded the crack. Cheers and good luck!

    [​IMG]

    [​IMG]

    #2 scotto-, Aug 16, 2010
    Last edited: Aug 21, 2010
  3. wheelbender6

    wheelbender6 Active Member

    Joined:
    Sep 4, 2008
    Messages:
    3,781
    Likes Received:
    0
    Welcome to the forum. I was going to suggest using an old fire extinguisher for a tank but try scotto's method first.

  4. Kevlarr

    Kevlarr New Member

    Joined:
    Jul 22, 2009
    Messages:
    1,628
    Likes Received:
    0
    A little trick for sealing tanks from the outside. Make sure your petcock is closed, duct tape the hose from a shop vac to the fill, turn on the chop vac and apply the epoxy. The vac will create negative pressure in the tank and draw the epoxy into the hole/crack.

    A vacuum pump works best but not everyone has one of those.

  5. scotto-

    scotto- Custom 4-Stroke Bike Builder

    Joined:
    Jun 3, 2010
    Messages:
    6,524
    Likes Received:
    0
    That's a great tip Kevlarr, every bit helps. And another little tip is wipe the area and surroundings with acetone or MEK just prior to patching the crack.

  6. Venice Motor Bikes

    Venice Motor Bikes Custom Builder / Dealer/Los Angeles

    Joined:
    Mar 20, 2008
    Messages:
    6,146
    Likes Received:
    1
    I use silver solder to seal those cracks.

    A trick that I learned for mounting the tanks, is to put some good 'double sided' tape on the top tube of the frame (to keep the tank from moving) so that you don't have to tighten the tank studs too tight (& possibly crack those welds.) ;)

  7. jburr36

    jburr36 New Member

    Joined:
    Jul 17, 2008
    Messages:
    284
    Likes Received:
    0
    I bought some tank sealer for marine fuel tanks from a NAPA auto store. I lived on the California north coast and was also worried about the fuel tank rusting on the inside and screwing up the carb. I applied 3 coats of the sealer to the tank. The last coat I bolted the tank onto the bike and just poured enough sealer to cover the stud welds then drained the excess out of the petcock. Never had any issues with leaking after that.

  8. Kevlarr

    Kevlarr New Member

    Joined:
    Jul 22, 2009
    Messages:
    1,628
    Likes Received:
    0

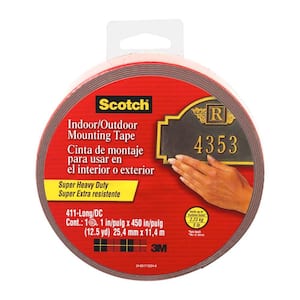

    Very good point. I use this Scotch Exterior Mounting Tape

    [​IMG]

    With this tape you almost don't even need to bolt the tank down. You may find when you remove it it'll take the paint off your frame and tank before it lets go.

  9. SOHOL

    SOHOL New Member

    Joined:
    Aug 4, 2010
    Messages:
    2
    Likes Received:
    0
    I tired to fix my tank 3 times with JB weld...it pop at the mounting bolt also...its about a 1/2 inch crack...I guess i just need a new tank! or take it to a weld shop...any other ideas
