    I've seen a lot of people building frames against a piece of plywood or even OSB and I was wondering if the jig I plan on building will have any advantages/disadvantages to the board jig.

    Working in apartment maintenance I've amassed a pretty sizable collection of bed frame angle iron, I can never let a piece stay in the dumpster because it's so darned handy and free angle iron is great.

    I plan on laying down two lengths parallel then bolting them to some 3/4 fiberboard and making fixtures for the rear dropout, crank tube and building a triangulated head tube brace out of a fork. Basically the fixtures will bolt to the frame and be able to slide along the angle iron rails and clamp into place so once I cut the frame in two I can just slide the halves apart to my final length then lock everything down to weld in the new tubing.

    The main advantage I can see is I will be able to weld both sides of the frame without removing the frame from the jig.

  2. foureasy

    foureasy New Member

    Joined:
    Jul 9, 2009
    Messages:
    478
    Likes Received:
    0

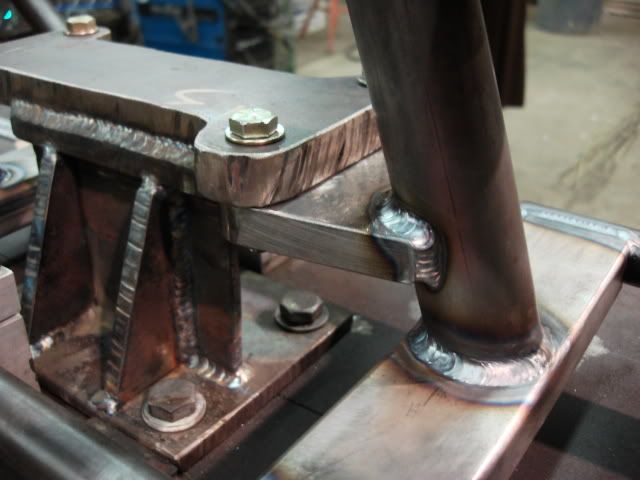

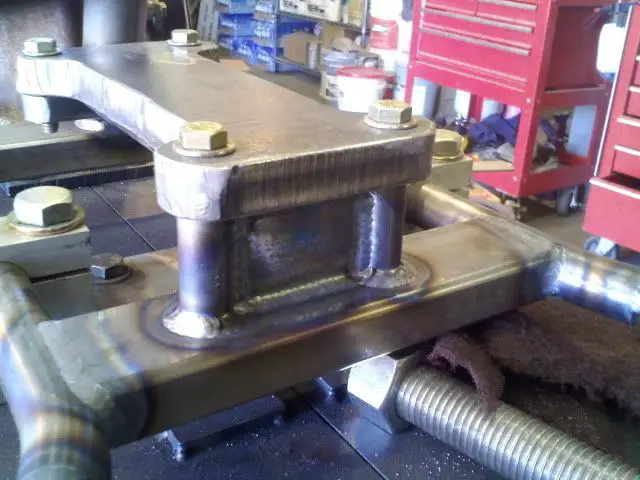

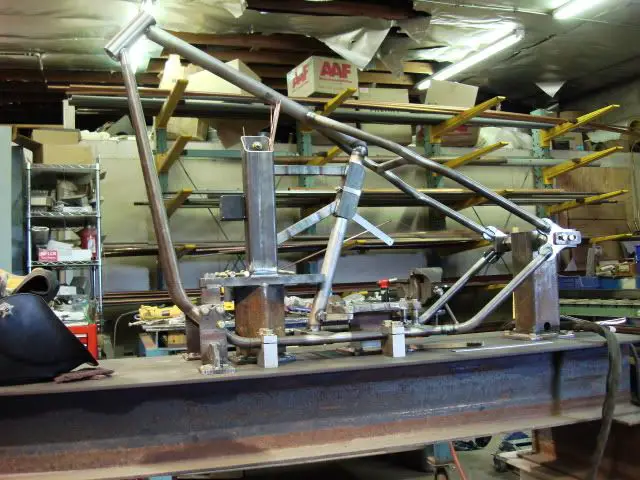

    you can make a jig out of just about anything, but it needs to be stronger than the frame you are building. i have yet to build a jig for a bicycle frame, but i have built a few harley frames on this boat anchor. the way i figure it, if you can build the jig, you can build the frame.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  3. Deadend

    Deadend New Member

    Joined:
    Aug 19, 2009
    Messages:
    75
    Likes Received:
    0
    nice craftsmanship !

  4. BarelyAWake

    BarelyAWake New Member

    Joined:
    Jul 21, 2009
    Messages:
    7,209
    Likes Received:
    4

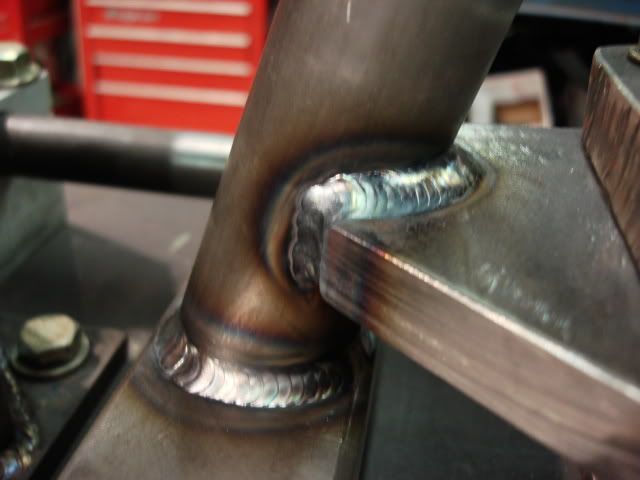

    such pretty welds...

    *drools*

  5. 2door

    2door Moderator
    Staff Member

    Joined:
    Sep 15, 2008
    Messages:
    16,304
    Likes Received:
    29
    No subsitute for TIG, is there? A plasma cutter is a nice tool to have too. I see you have one.
    Tom

  6. FileStyle

    FileStyle New Member

    Joined:
    May 27, 2008
    Messages:
    724
    Likes Received:
    0
    nice shop! I would love to have one like that! I dig the really heavy table you got there, that what I call a fabrication table! and also nice work!

  7. GearNut

    GearNut Active Member

    Joined:
    Aug 19, 2009
    Messages:
    5,105
    Likes Received:
    1
    Holy crow! That is a very nice shop you got there!
    I too wish my welds looked like a stack of dimes.
    Mine are high quality booger welds, but so far they have never failed.

  8. Kevlarr

    Kevlarr New Member

    Joined:
    Jul 22, 2009
    Messages:
    1,628
    Likes Received:
    0
    Used to frequent a 4x4 forum and one of the member's screen name was "Boogerwelds" rotfl
