Briggs will not start?

Discussion in 'Motorized Bicycle General Discussion' started by jazz2561, May 19, 2015.

  1. jazz2561

    jazz2561 New Member

    Joined:
    Sep 20, 2012
    Messages:
    269
    Likes Received:
    0

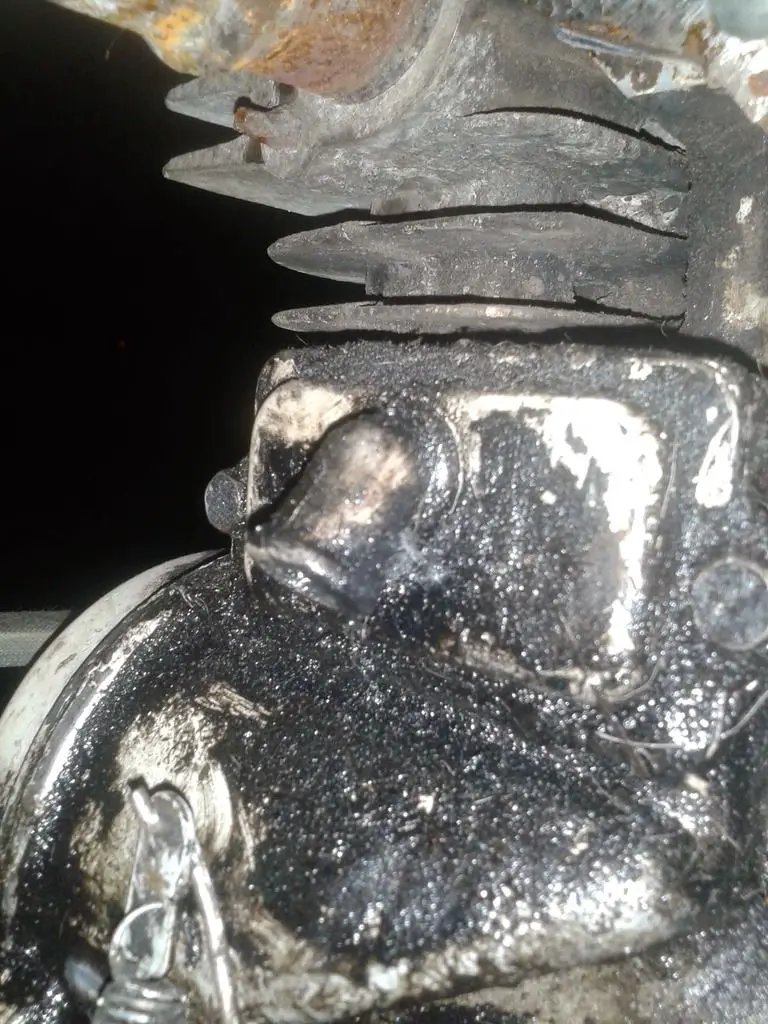

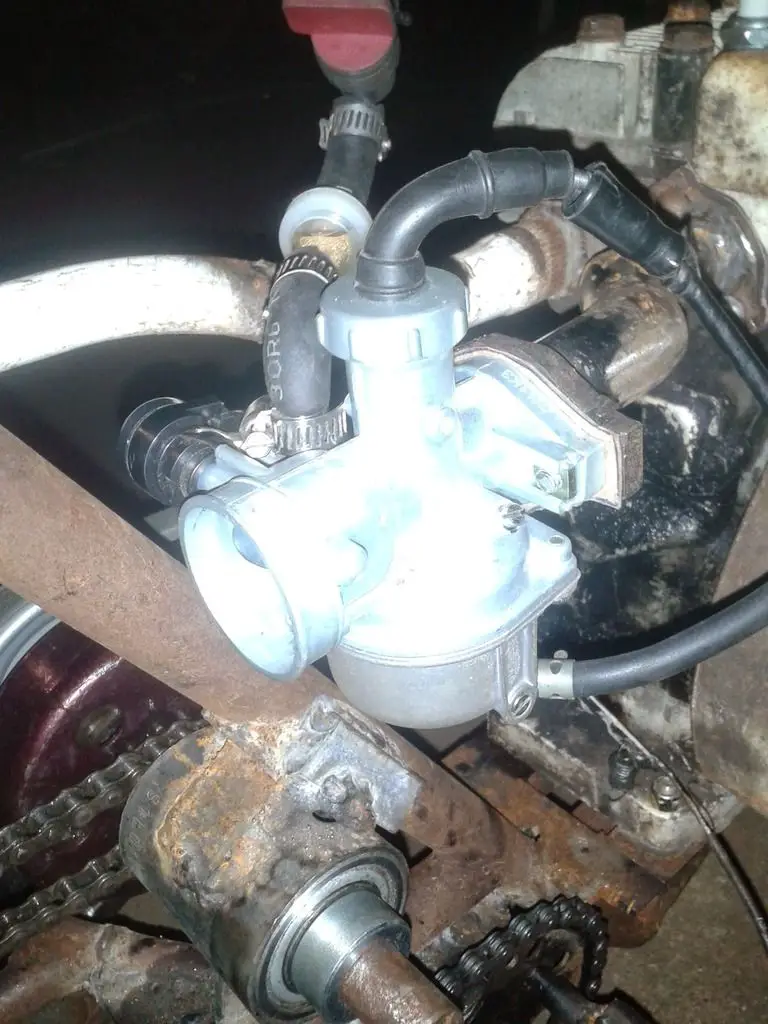

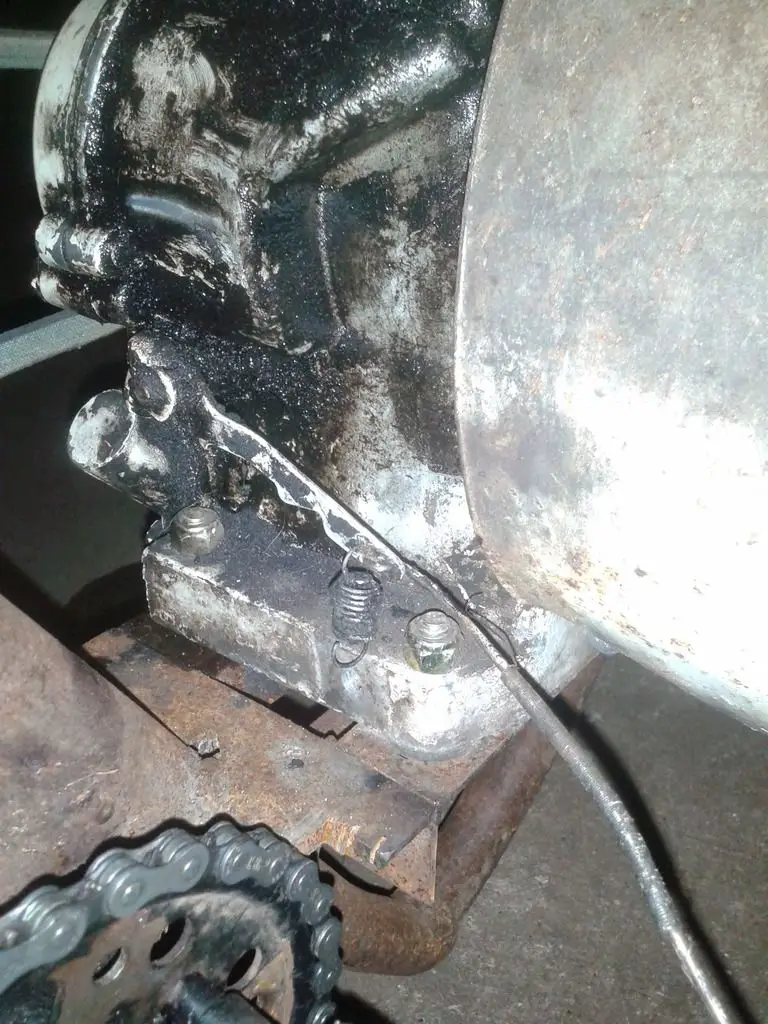

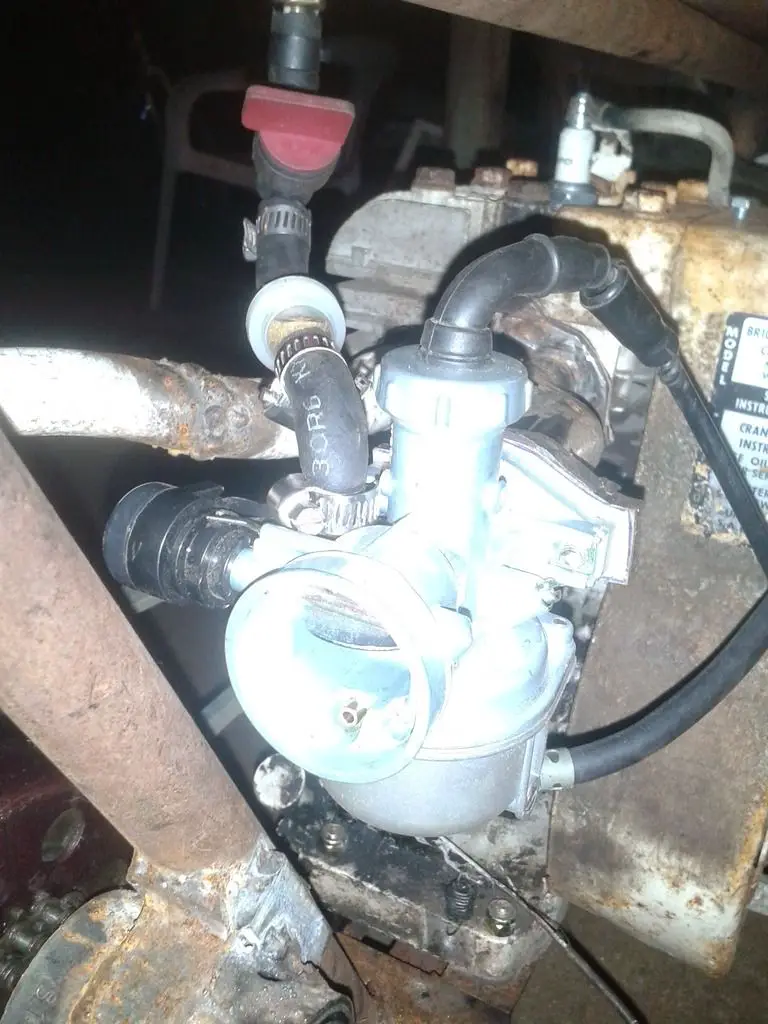

    So, I finished up my bike, and I tried try to start and no bueno. Help please! What is the problem!?
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  2. curtisfox

    curtisfox Well-Known Member

    Joined:
    Dec 29, 2008
    Messages:
    4,127
    Likes Received:
    52
    Do you have spark? check for it. Did you have the engine apart? Did you have the coil off check for clearance .20 between the coil and flywheel. Same for points ........Curt

  3. 2door

    2door Moderator
    Staff Member

    Joined:
    Sep 15, 2008
    Messages:
    16,304
    Likes Received:
    29

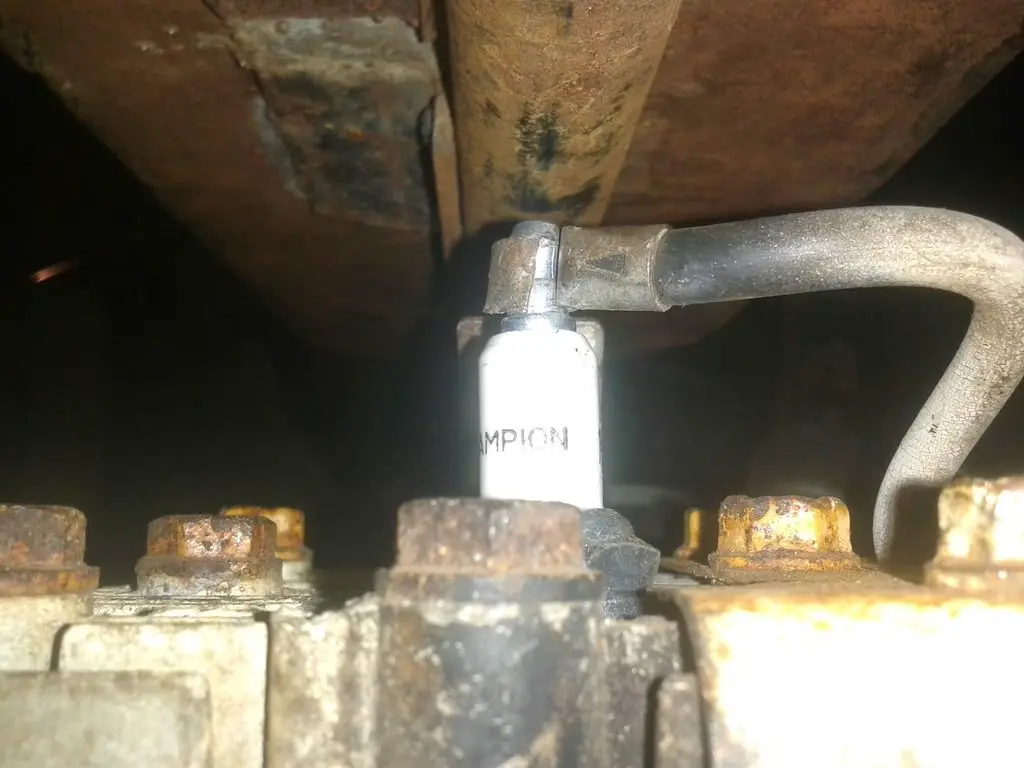

    Have you checked to see that the top of the spark plug isn't touching the frame or close enough that the spark is jumping to the frame. That photo makes it look like the plug is touching, or darn close.

    The engine needs three things to run. Fuel air and ignition. Start by confirming you have all three.

    Tom

  4. msrfan

    msrfan Active Member

    Joined:
    Sep 17, 2010
    Messages:
    1,758
    Likes Received:
    21
    Don't forget compression and timing. Leaking valves and worn out rings will lower the compression considerably. And the soft key Briggs uses in the flywheel is notorious for partially or totally shearing.
