3rd transfer port plz help

Discussion in 'Heads and Cylinders' started by Adam E, Mar 20, 2020.

  1. Adam E

    Adam E New Member

    Joined:
    Oct 29, 2019
    Messages:
    11
    Likes Received:
    4
    I am adding a reed valve to my engine and want to use a windowed piston and 3rd transfer port with it. I made my own window piston but I need some clarification on how to make a third transfer. So I know it’s on the intake side but how far up do I go? Anyone who’s done it before plz feel free to chime in. Thanks In advance
    .shft.
    Adam

    indian22 likes this.
  2. indian22

    indian22 Well-Known Member

    Joined:
    Dec 31, 2014
    Messages:
    3,389
    Likes Received:
    3,196

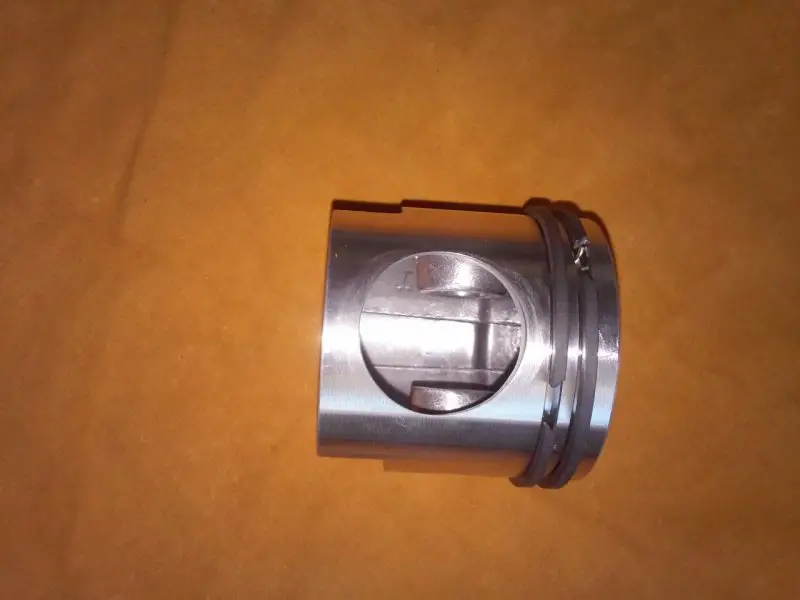

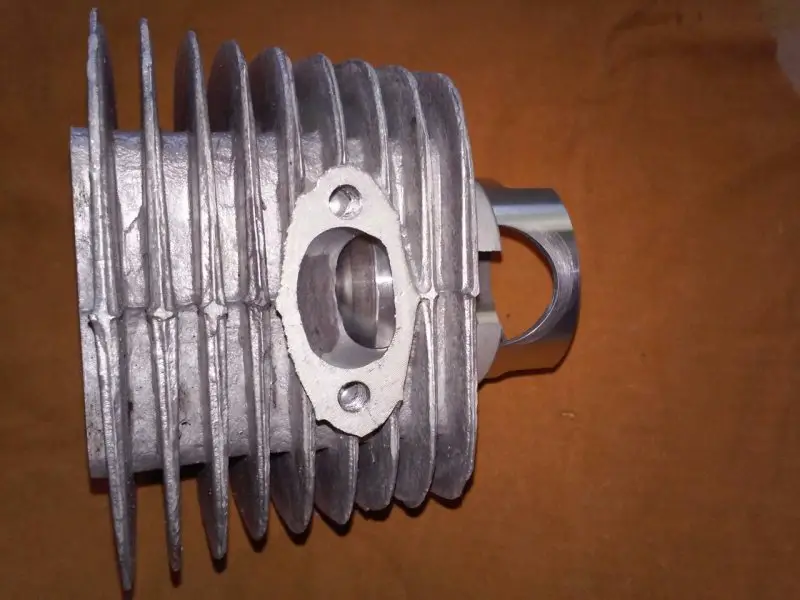

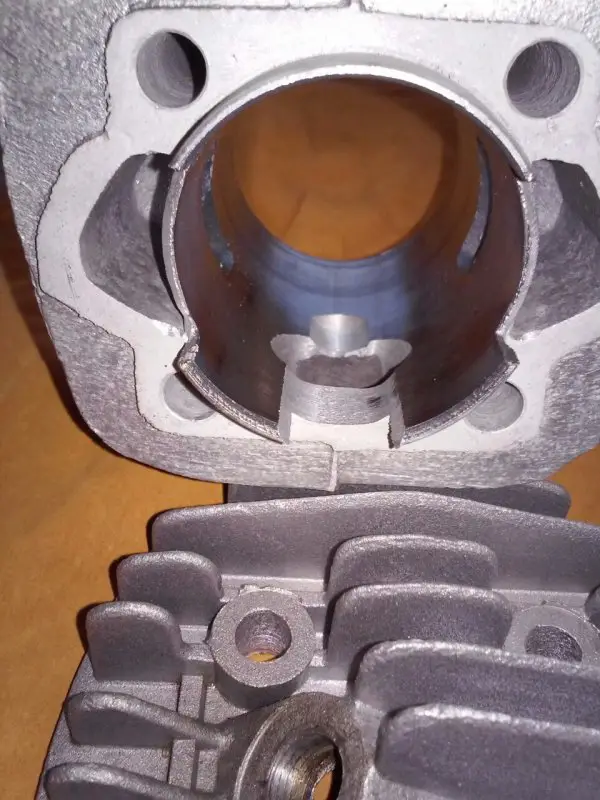

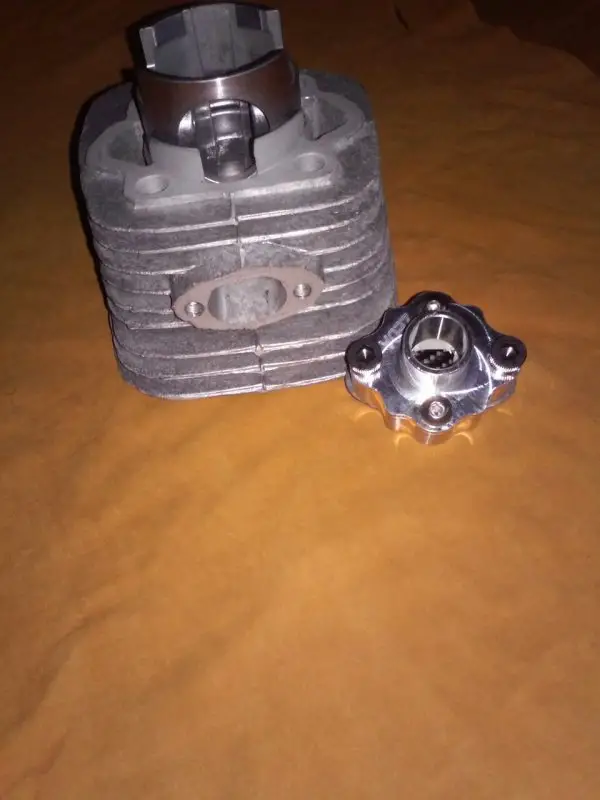

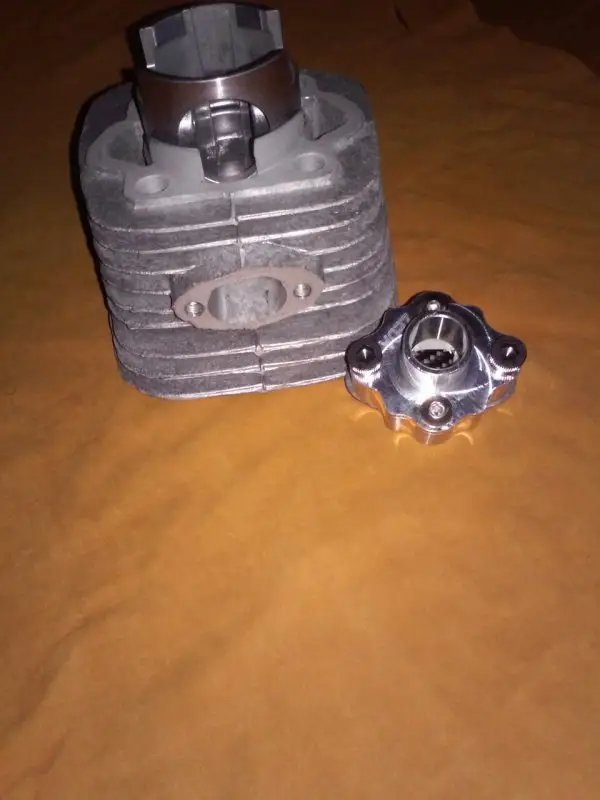

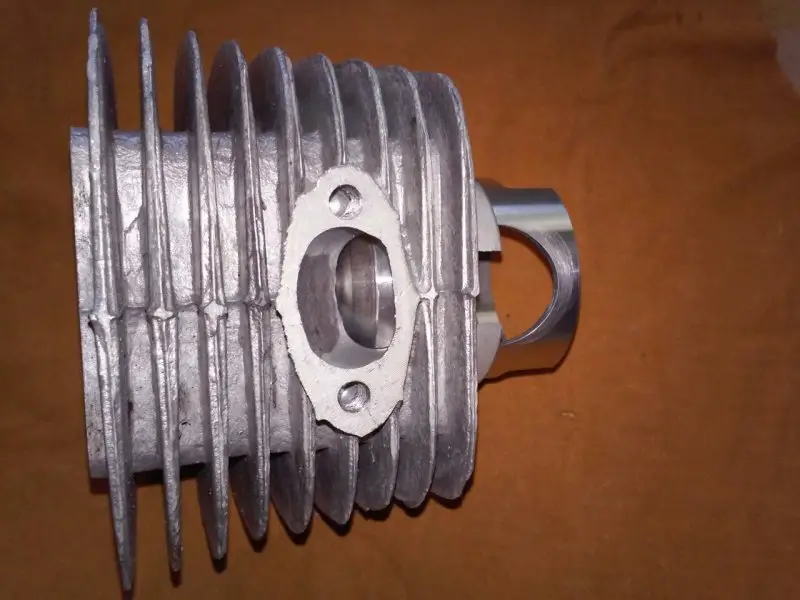

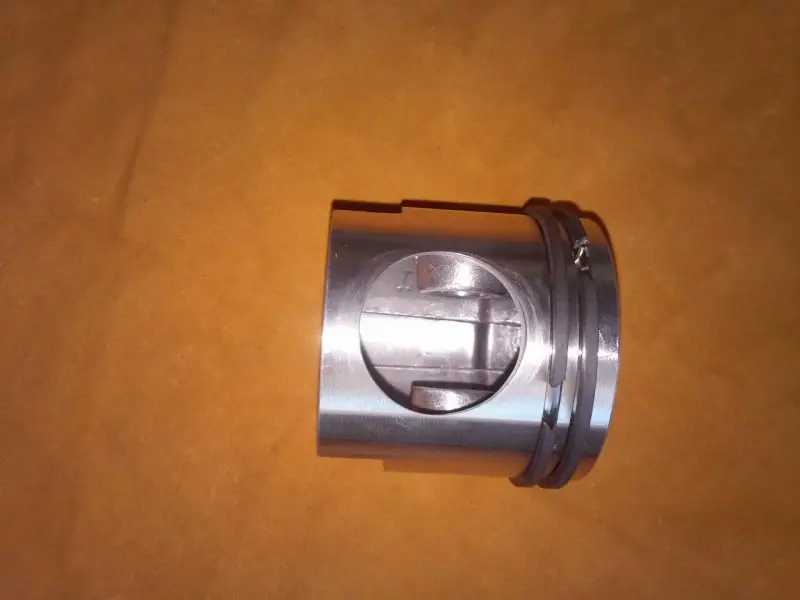

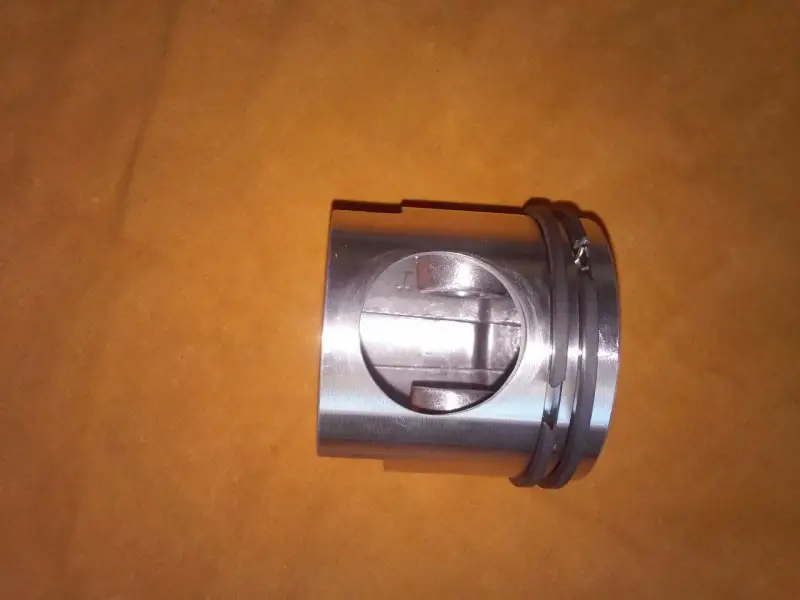

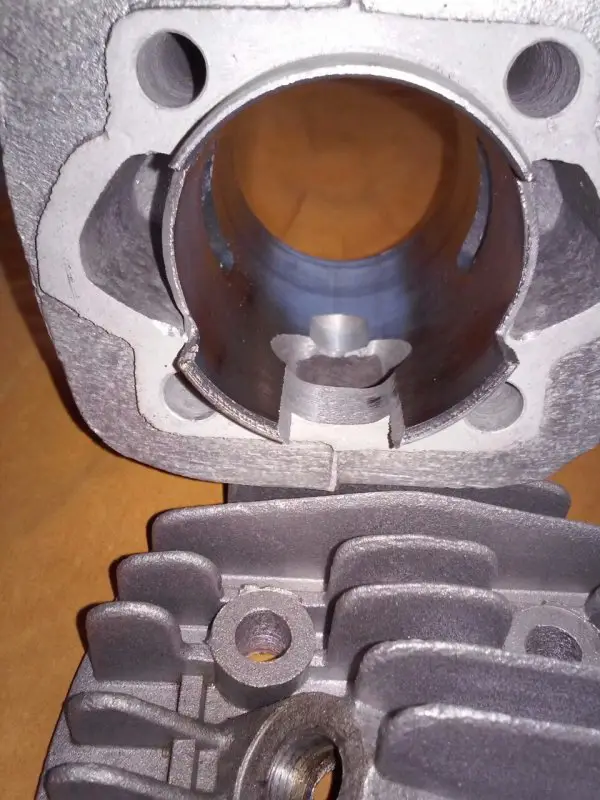

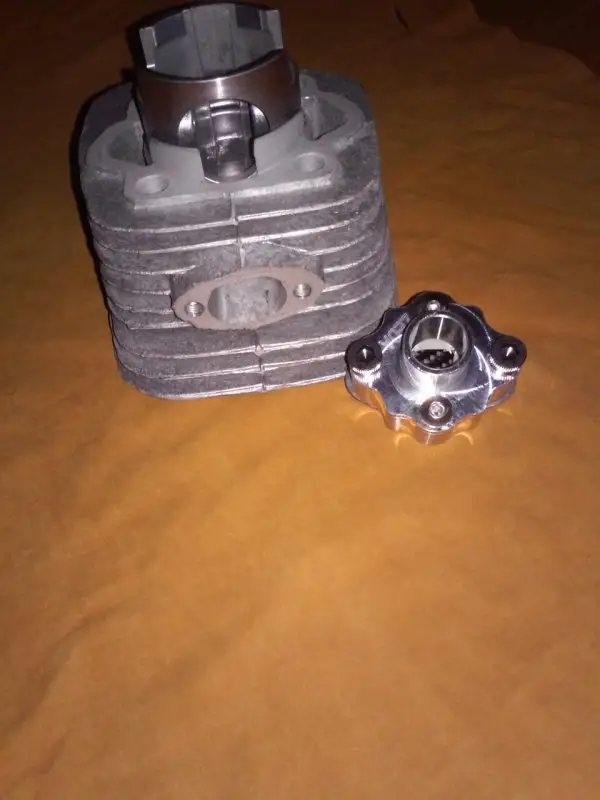

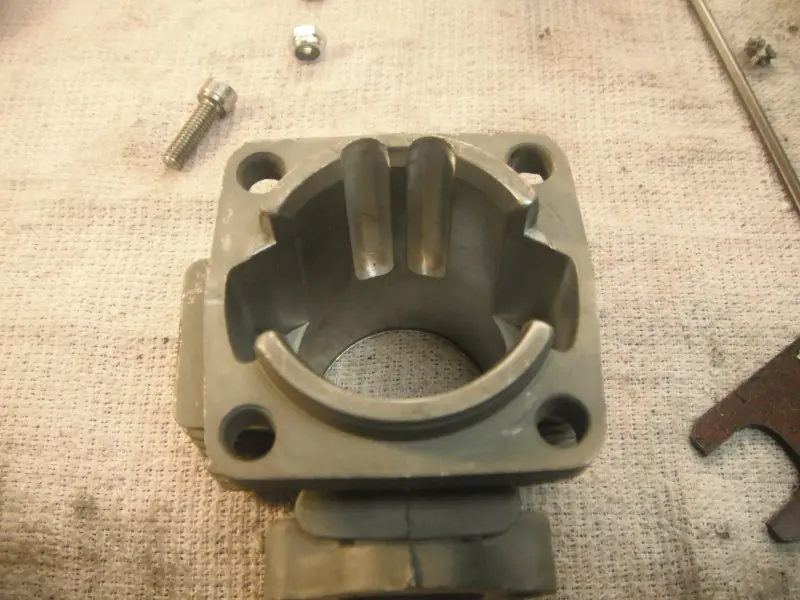

    Hi Adam, I've included photos of some things that help a reed work in the 66cc GT 4 type motors with the RSE type reed.. This is a place to start. Window piston and reed valve normally boost the power the combination with third port is normally better, but tuning is necessary to really make mods work well. Jetting, pipe, combustion ratio etc. have to be right or power suffers despite the added modifications.

    If your a gear head and have machine skills and a well equipped shop photos are all you will need, if not I'd buy a cylinder with the work completed. The work shown wasn't done with a Dremel tool!

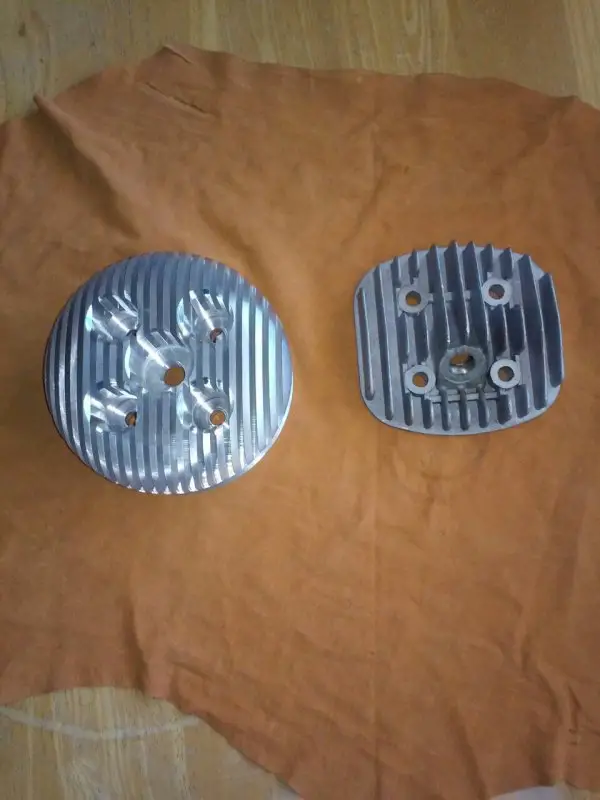

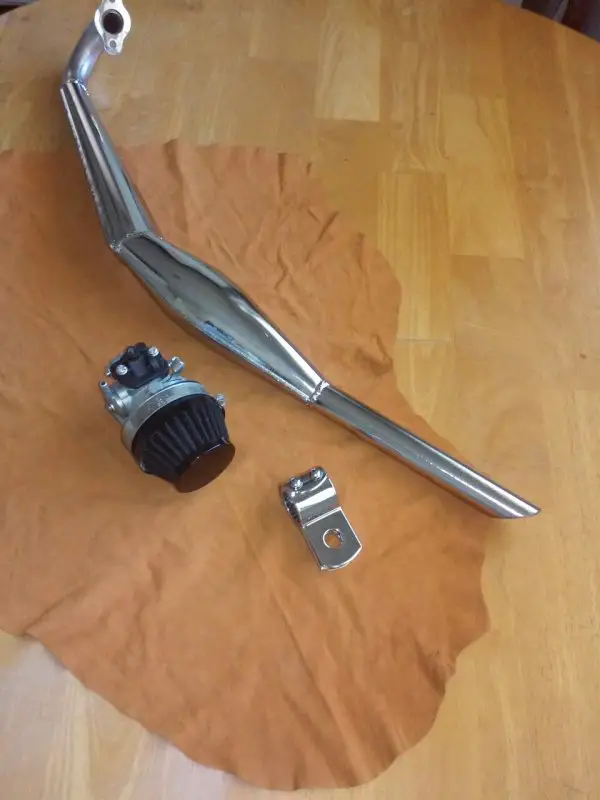

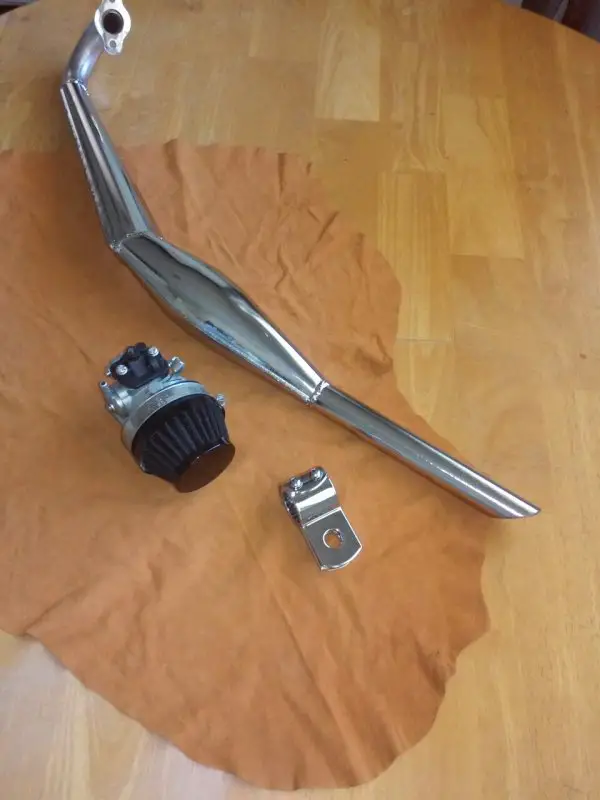

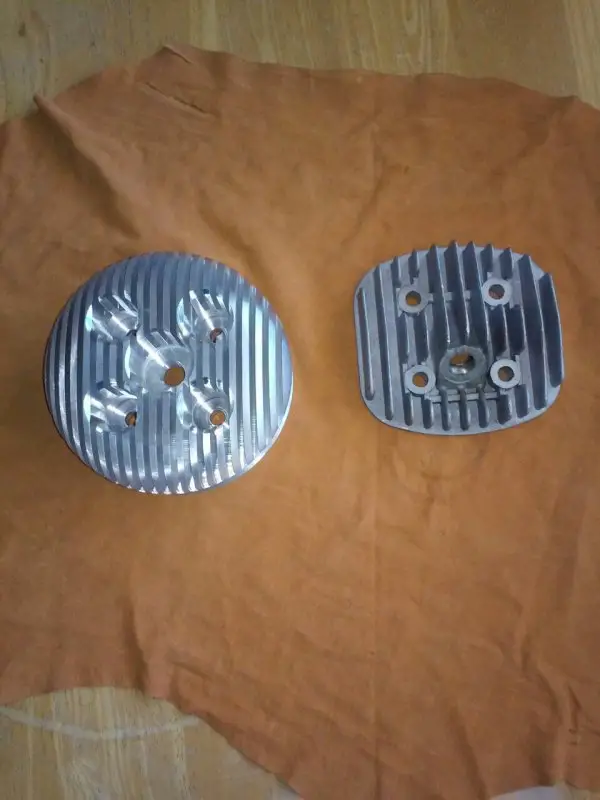

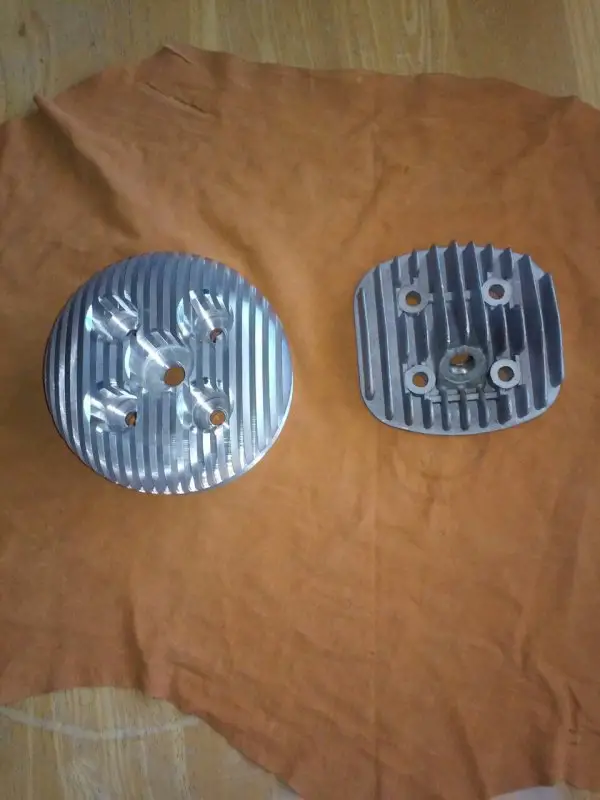

    X-pipe, head and carb are suggestions to help setting up a tuned engine, what I've used to build engines that I'd call well modified but not nearly the highest tune possible. Nice running street bikes not high strung race tune for sure, but get into the 5hp range which is quite noticeable improvement from stock!

    Rick C.

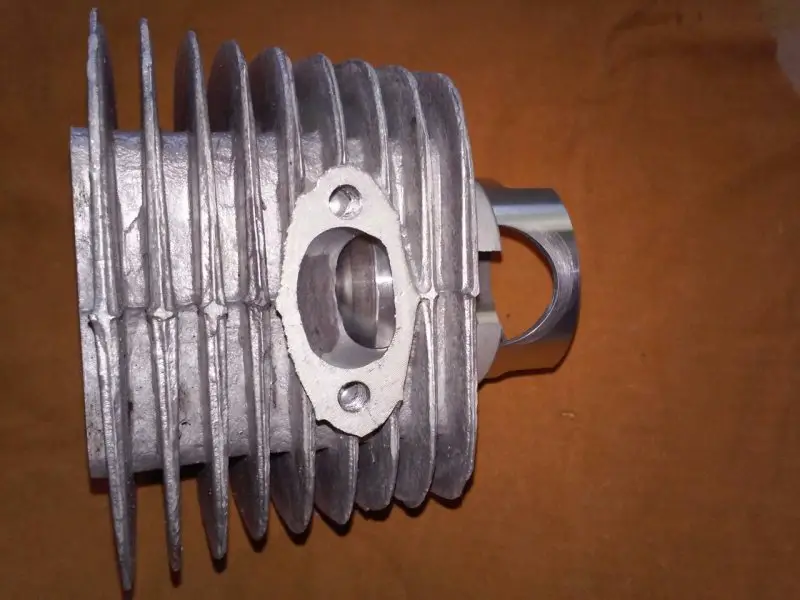

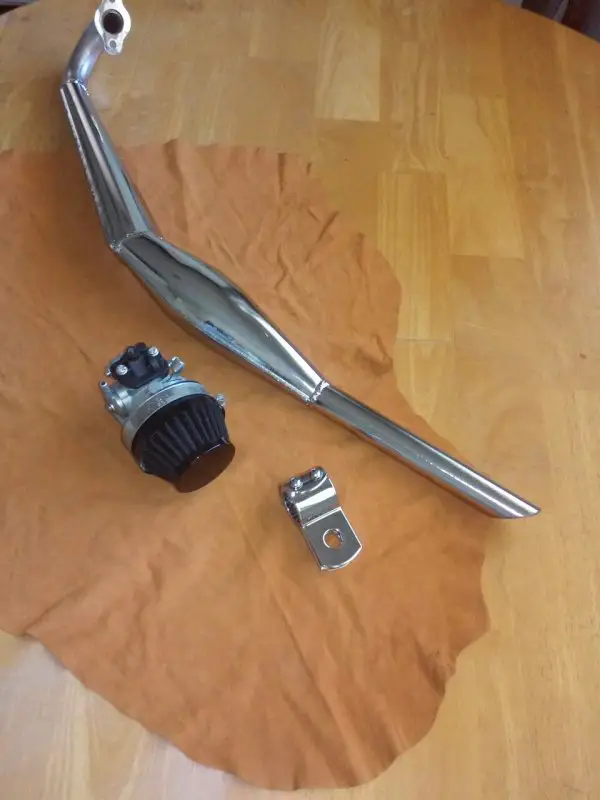

    a. reed port 1.jpg A reed port 2.jpg A reed port 3.jpg A reed port 4.jpg A reed port 5.jpg A reed port 6.jpg

    Venice Motor Bikes likes this.
  3. Venice Motor Bikes

    Venice Motor Bikes Custom Builder / Dealer/Los Angeles

    Joined:
    Mar 20, 2008
    Messages:
    6,562
    Likes Received:
    345
    If you're going to cut the 3rd port yourself, don't make it any higher than the two side ports!

    Also... One of the first things I learned (the hard way) about adding a reed valve to one of these engines is that you need to 'throw gas at it"!!! Jet the carb a lot bigger. ;)

    indian22 likes this.
  4. indian22

    indian22 Well-Known Member

    Joined:
    Dec 31, 2014
    Messages:
    3,389
    Likes Received:
    3,196
    Absolutely correct!!

  5. FOG

    FOG Well-Known Member

    Joined:
    Mar 3, 2019
    Messages:
    192
    Likes Received:
    369
    I concur with Rick's advice on using a dremel. I tried it on a scrap cylinder and won't be doing that again anytime soon! It jumped and bucked and landed in the bore where I didn't want it. A light and extremely accurate touch doesn't seem to be in my particular toolbox.

    There are guys that do, but they must be brain surgeons in their spare time. :)

    FWIW, a 3/16" carbide barrel cutter is the 1st weapon of choice and the 1st barrier is getting thru the chrome.

    You may already know this but making sure your ring gaps never cross a port is of vital importance. They can snag. Cylinders do get broken.

    As far as how high. I'm using a pocket bike motor and the experts are telling me my boost ports should open 1mm "before" the main transfers. This seems strange to me but these guys have a vast amount of experience blowin' 'em up so I'm listening.

    I did these on my little mill. No dremel.


    indian22 likes this.
  6. indian22

    indian22 Well-Known Member

    Joined:
    Dec 31, 2014
    Messages:
    3,389
    Likes Received:
    3,196
    Nicely done FOG.

    Chrome bores serve a purpose but I really like steel liners when modifying and rebuilding engines, but most of these little pecker woods are chromed.

    Rick C.

    #6 indian22, Mar 20, 2020
    Last edited: Mar 20, 2020
  7. Adam E

    Adam E New Member

    Joined:
    Oct 29, 2019
    Messages:
    11
    Likes Received:
    4
    Thank you guys! That helped a lot and cleared up my confusion! The reed valve I’m going to be using is a 4 petal box type with a Keihin knockoff. I think it’s the same set up seen in the gt80. Anything I should do specifically with this setup?

  8. Adam E

    Adam E New Member

    Joined:
    Oct 29, 2019
    Messages:
    11
    Likes Received:
    4
    I’m using this setup without the ported cylinder
    https://batchsports.com/gt80-reed-v...4&utm_source=google&utm_medium=smart_campaign

  9. indian22

    indian22 Well-Known Member

    Joined:
    Dec 31, 2014
    Messages:
    3,389
    Likes Received:
    3,196
    Adam are you running the window piston that you fabricated? If so are you seeing a performance boost with the Keihin carb & 4 petal reed compared to before?

    Rick C.

  10. Adam E

    Adam E New Member

    Joined:
    Oct 29, 2019
    Messages:
    11
    Likes Received:
    4
    I haven’t ran it yet but will let you know when I do. I just need to order some piston rings then I’ll try running it.

    FOG and indian22 like this.
