1st Build Owns

Discussion in 'Motorized Bicycle General Discussion' started by cabbiex5, May 19, 2009.

  1. cabbiex5

    cabbiex5 New Member

    Joined:
    Feb 12, 2009
    Messages:
    47
    Likes Received:
    0

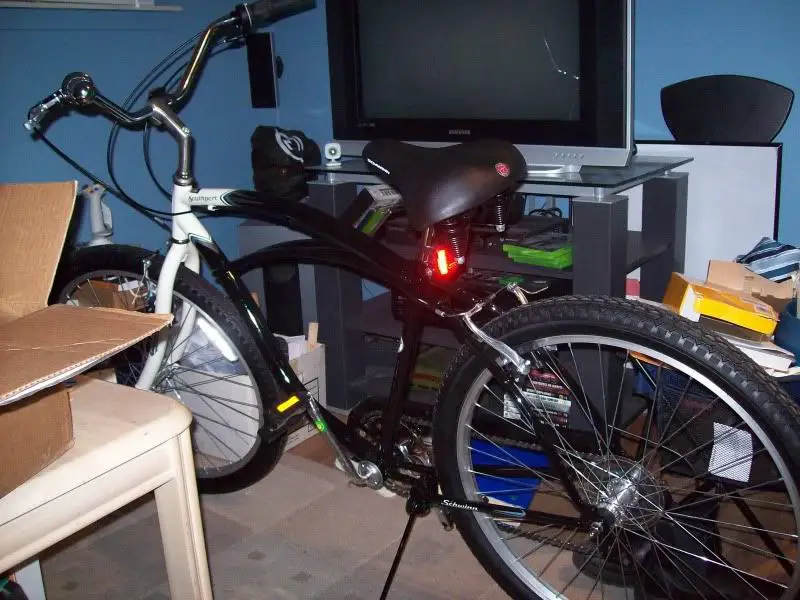

    So I have Schwinn Southport 7-Speed 26" bike from meijer:
    [​IMG]

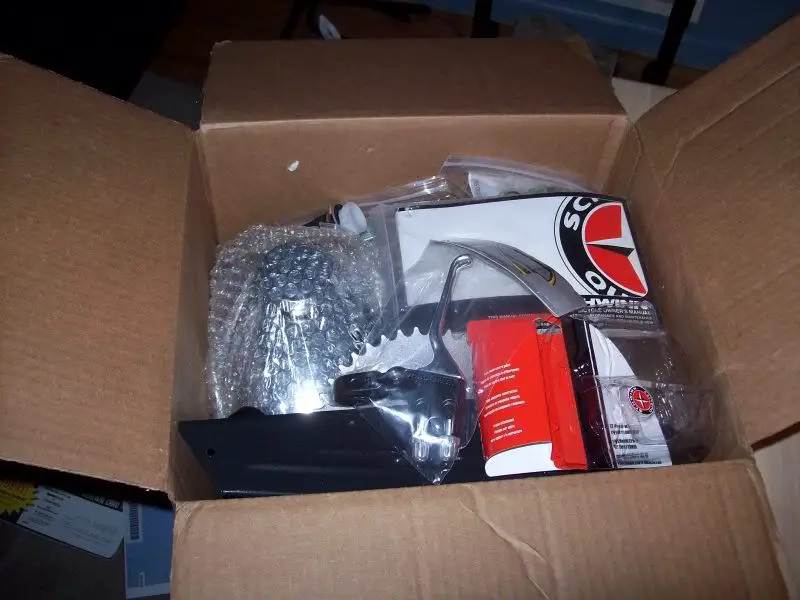

    A DAX F80 2-cycle engine with dual brake lever bought from amazon:
    [​IMG]

    and MB.com chat with zune music player in background:
    [​IMG]

    Tinker time...

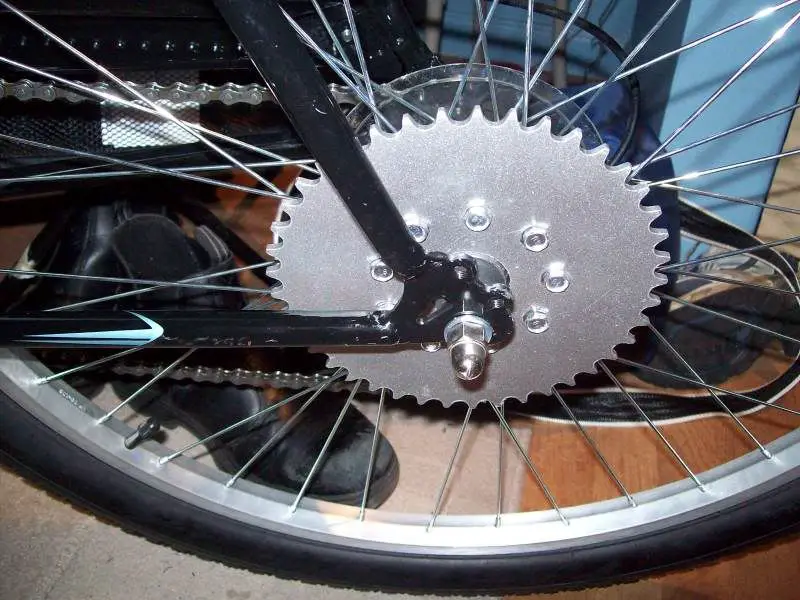

    Now, it took me forever to get the sprocket on, but kermit05 gave me a tip and bam! 5min later:
    [​IMG]

  2. cabbiex5

    cabbiex5 New Member

    Joined:
    Feb 12, 2009
    Messages:
    47
    Likes Received:
    0

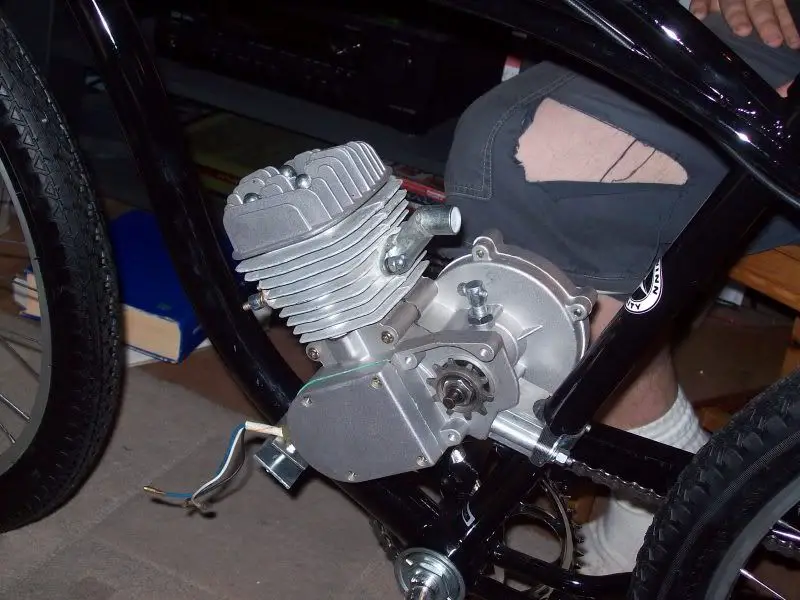

    Next day I did the motor with assistance from a friend who held it in place. dan and OzzyU812 tips on chat:
    [​IMG]

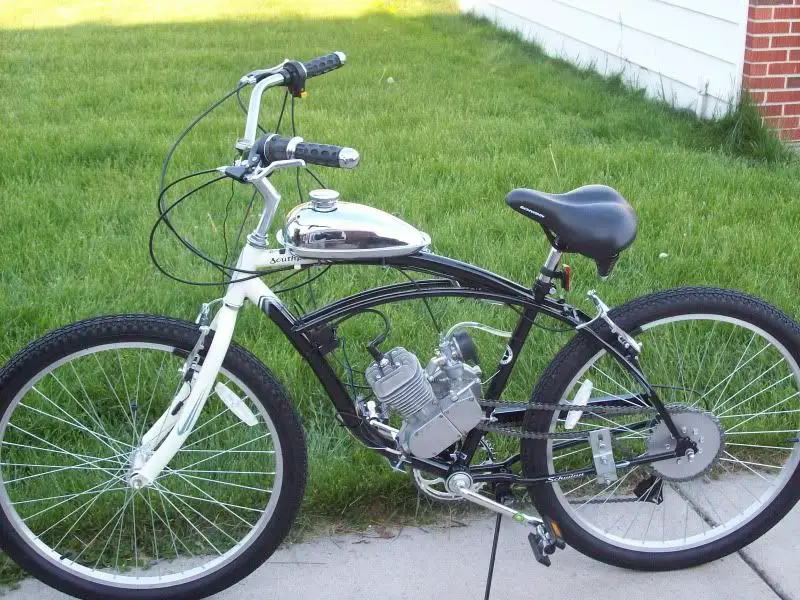

    The next day....
    [​IMG]

    I rode it about 1/2 mile down the street and everything was awesome....

    Notice there isnt a muffler on it. it wont attach cuz the oversize tube mounts are in the way... gunna buy a poo poo exhaust later.

    thanks to dan OzzyU812 kermit05 for all their help and every thread on this site

  3. OzzyU812

    OzzyU812 New Member

    Joined:
    May 15, 2008
    Messages:
    258
    Likes Received:
    0
    SWEET!

    But loud! LOL

  4. cabbiex5

    cabbiex5 New Member

    Joined:
    Feb 12, 2009
    Messages:
    47
    Likes Received:
    0
    yea i know, thinking about the poo poo pipe from bicycle-engines.com

    any ideas for a horn? needs to be heard from 200ft

    I also need a light setup, headlight taillight brake light and turn signals. thinking about a separate circuit with a battery, any ideas?

  5. kermit05

    kermit05 New Member

    Joined:
    Feb 3, 2009
    Messages:
    14
    Likes Received:
    0
    Good job cabbie! =)

  6. Finfan

    Finfan New Member

    Joined:
    Aug 29, 2008
    Messages:
    871
    Likes Received:
    1
    Don't run it without the muffler! You'll toast the engine!

    :-||

  7. cabbiex5

    cabbiex5 New Member

    Joined:
    Feb 12, 2009
    Messages:
    47
    Likes Received:
    0
    muffler is on it, i had to heat and bend it so it would fit. gunna upgrade to another one soon

  8. NEAT TIMES

    NEAT TIMES New Member

    Joined:
    May 28, 2008
    Messages:
    1,964
    Likes Received:
    0
    Welcome. If It Runs As Good As It Looks You Are In Fine Shape. Congrats, Nice Build. Ron

  9. drhofferber

    drhofferber New Member

    Joined:
    Jun 22, 2008
    Messages:
    307
    Likes Received:
    0
    this one might help...fit almost perfect and sounds great...36.00 bucks and thats with shipping...motor99motor on ebay...Dennis


    Attached Files:

    • gt10.jpg
      File size:
      130.9 KB
      Views:
      88
  10. cabbiex5

    cabbiex5 New Member

    Joined:
    Feb 12, 2009
    Messages:
    47
    Likes Received:
    0
    it doesnt get in the way of the frame?

  11. drhofferber

    drhofferber New Member

    Joined:
    Jun 22, 2008
    Messages:
    307
    Likes Received:
    0

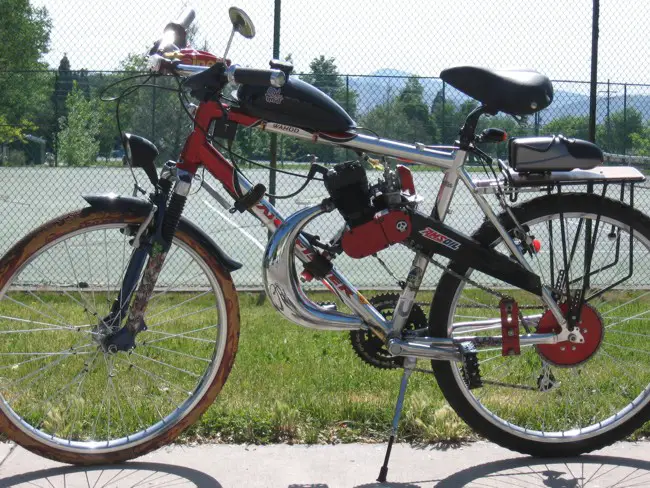

    no...I cut the flange that bolts to the engine exhaust port and wielded it to a 2 inch piece of pipe the same diameter...picked it up at lowes...black pipe...its heavier and supportive...positioned it...tacked it ...and wala...perfect...nice sound....i think there is always going to be a small problem because all frames are different and everyone puts their engines in different...i have ruined one muffler by heating it up and tweaking it...bad metal...my first build was a schwinn and i had to tweak it...i could never get it right...but this one was easy...clean...i think you'll have to work with the poopoo pipes too....the expansion pipe i put on my gary fisher fit right on with no tweaking and moves...ha...got it at spooky tooth...heres a pic...need any info let me know...Dennis


    Attached Files:

    • gf10.jpg
      File size:
      143.3 KB
      Views:
      54
  12. OzzyU812

    OzzyU812 New Member

    Joined:
    May 15, 2008
    Messages:
    258
    Likes Received:
    0

    That small of chamber made a difference?? Did kwik search for motor99motor no results.

  13. drhofferber

    drhofferber New Member

    Joined:
    Jun 22, 2008
    Messages:
    307
    Likes Received:
    0
    hey ozzie...type in mini pocket bike exhaust on ebay...they have a daul exhaust with your name on it...have fun and dont forget the vets today...Dennis

  14. OzzyU812

    OzzyU812 New Member

    Joined:
    May 15, 2008
    Messages:
    258
    Likes Received:
    0
    Thanks I was just curious about it. No welder at home :(

    Cab, did you get that fuel trouble fixed??
