Wiring My Bike, no instructions to go by 47cc

[Airbuzz]

Most kind Forum members, I am already in debt to you for your gracious help in the past, again if you would be so kind to render your assistance.

The kit is from Zone 8 and I don’t have any wiring instructions.

Can someone tell me which wires go where?

-A Blue and a Yellow from the throttle/kill switch.

-A Green and a Black from the ignition.

_& a Blue, a White and a Black from the Engine.

Which goes to what?

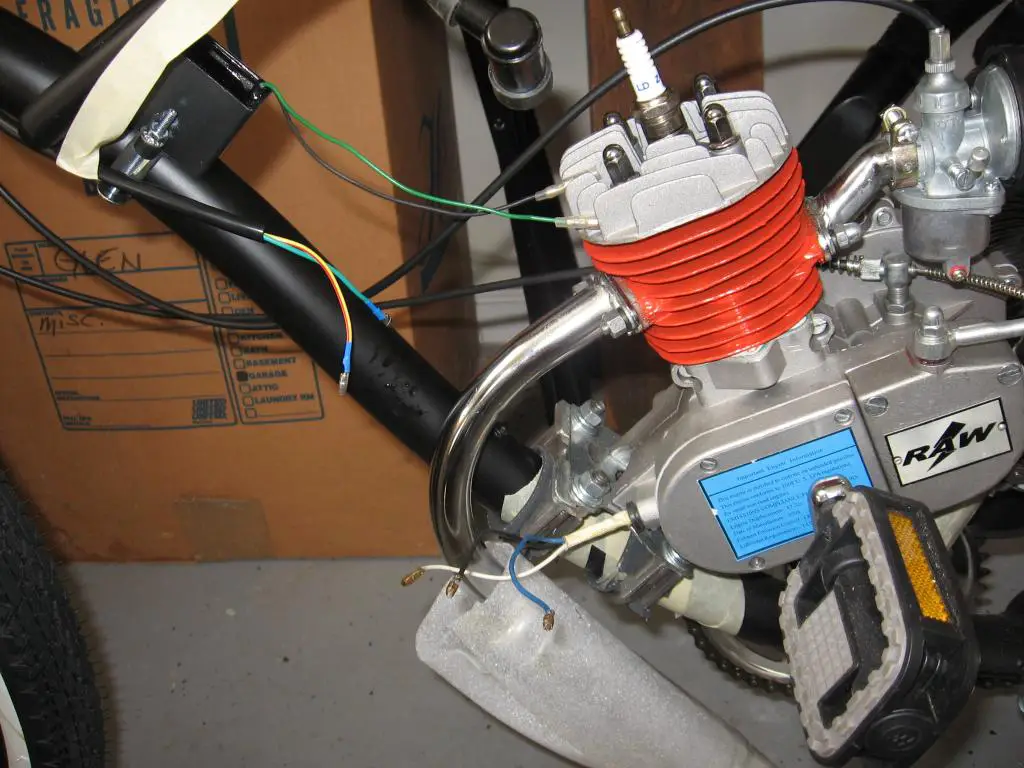

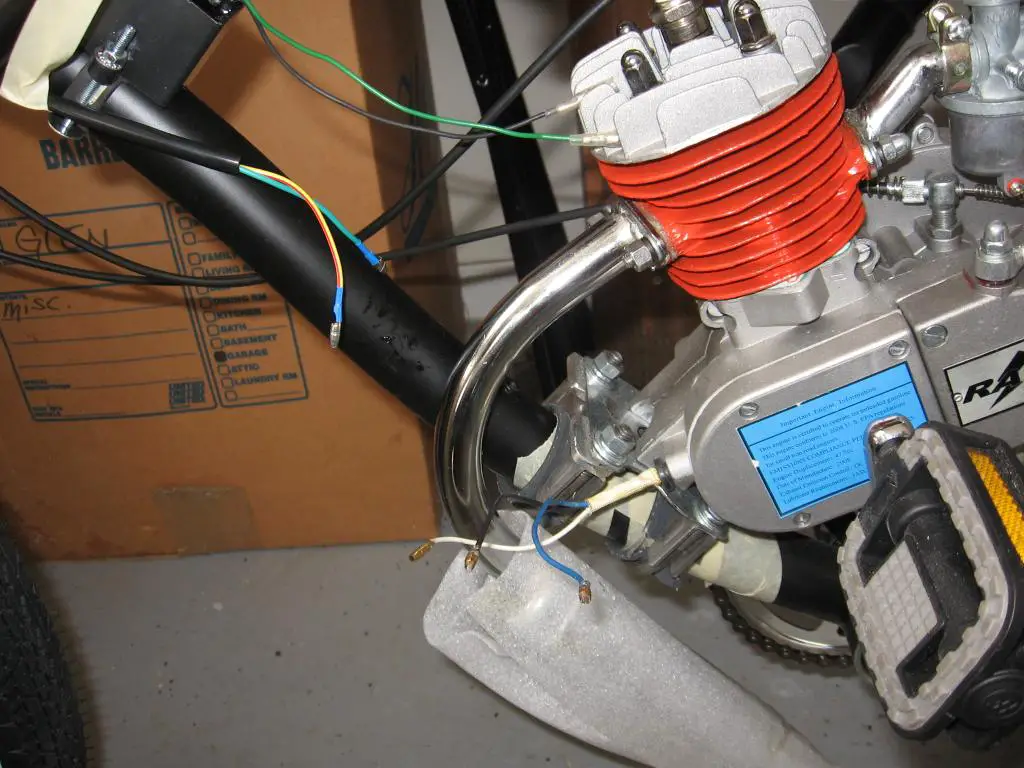

Please See pics.

Thanks.

[NunyaBidness]

From the motor, the blue goes to the green from the cdi and the black from the engine goes to the black from the cdi. The white from the engine, unless you are hooking the kill switch up should be capped so it doesn't short the engine. If you do attach the kill switch, the blue wire goes with the blue wires between the engine and the cdi, the yellow connects to the black wires. Most people don't connect the kill switch until the motor is running as it has been known to cause problems.

[OzzyU812]

This is the most accepted way.

[2door]

Hmmmmm,
That diagram looks very familiar... I swear I've seen it somewhere.
Tom

[OzzyU812]

Originally Posted by 2door

Hmmmmm,
That diagram looks very familiar... I swear I've seen it somewhere.
Tom

LOL
I borrowed it. Did you draw it Tom?

[Dan]

Howdy AB, welcome. These are 3 of the best guys I know but I don't get out much. (My rule of thumb is black to black then try again if it fails) Really, your in good hands and great advice. Great to see ya!

[Airbuzz]

Thank you all very much. I'll be wiring it up this weekend and firing it up for the first time.

I'll let you know how it goes.

Thanks.

Airbuzz

[Stevewb]

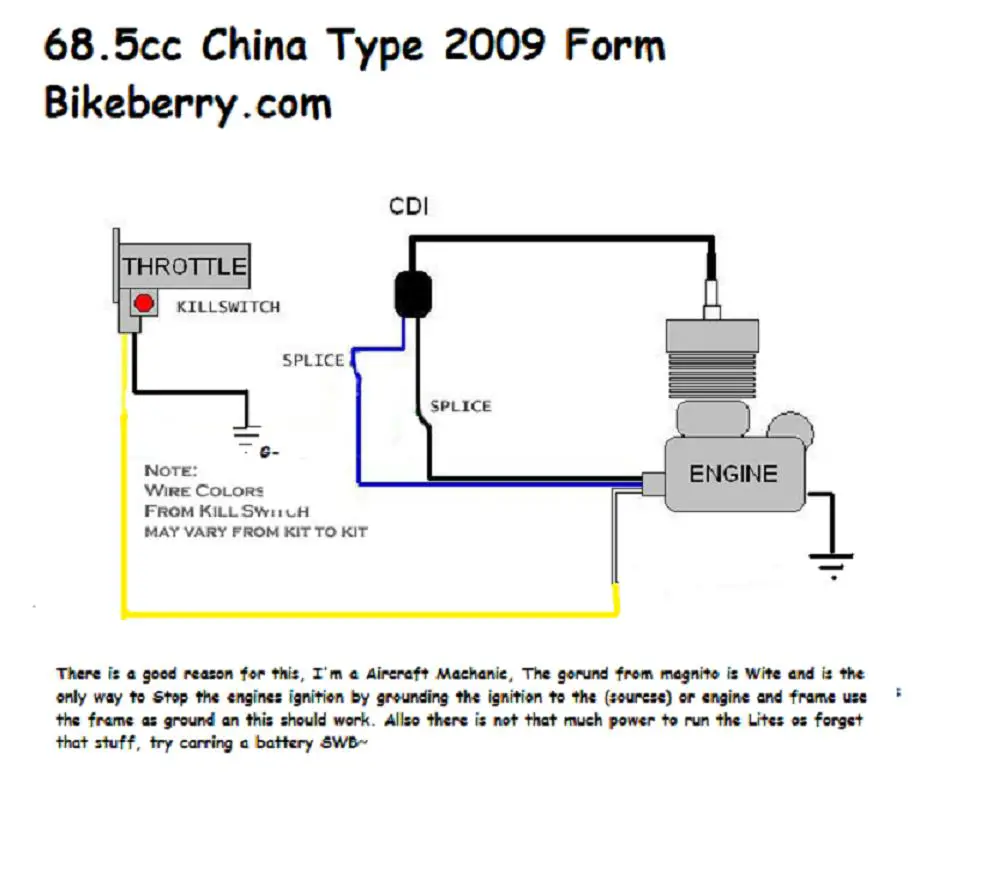

[ATTACH]Here is the wiring diagram that is the dog my cat. My name Stevo the Old but you can call me Hambone for short. Please feel free give me some if I'm wrong let me know. 11938[/ATTACH]
