Default FireBelly 4 Stroke "Hard Box" Transmission

We have been testing our own transmission design with what we believe to be "Great success".

It is chain/sprocket drive and utilizes a Max Torque centrifugal clutch. w/ current reduction and standard 44 tooth final drive it produces a top speed of 34 mph. Reduction can be changed w/ off the shelf parts as well as final drive sprockets. It is narrower than the Hoot and Grubee as a prototype and will be even narrower in production.

All metal in construction, w/ aluminum covers, it will prove to accent the look of vintage style bikes as well as new models.

It is set to go into production in the next couple of weeks w/ availability beginning (most likely) in late April. Transmissions will be available in a complete kit or seperately (for those who already own a kit w/ an inferior transmission) and will be available for models w/ 15mm, 5/8", or 3/4" shafts.

Retail price will depend entirely on production costs but it is our intention to keep quality and appearance high and price low! The kit will come w/ a "real" universal engine mount that will also look nice.

The current pics are of the prototype (built for functionality only) and the finished product will be cnc precision machined to a more rounded shape reminiscent of vintage single cylinder motorcycles.

I'll post pics of the finished product as soon as I can! I'm confident that it's appearance and funcionality will appeal to the asthetically minded m/b builder.

As always "Motorized Bicycles and Accessories Built for the Real World"
Attached Thumbnails
Click image for larger version

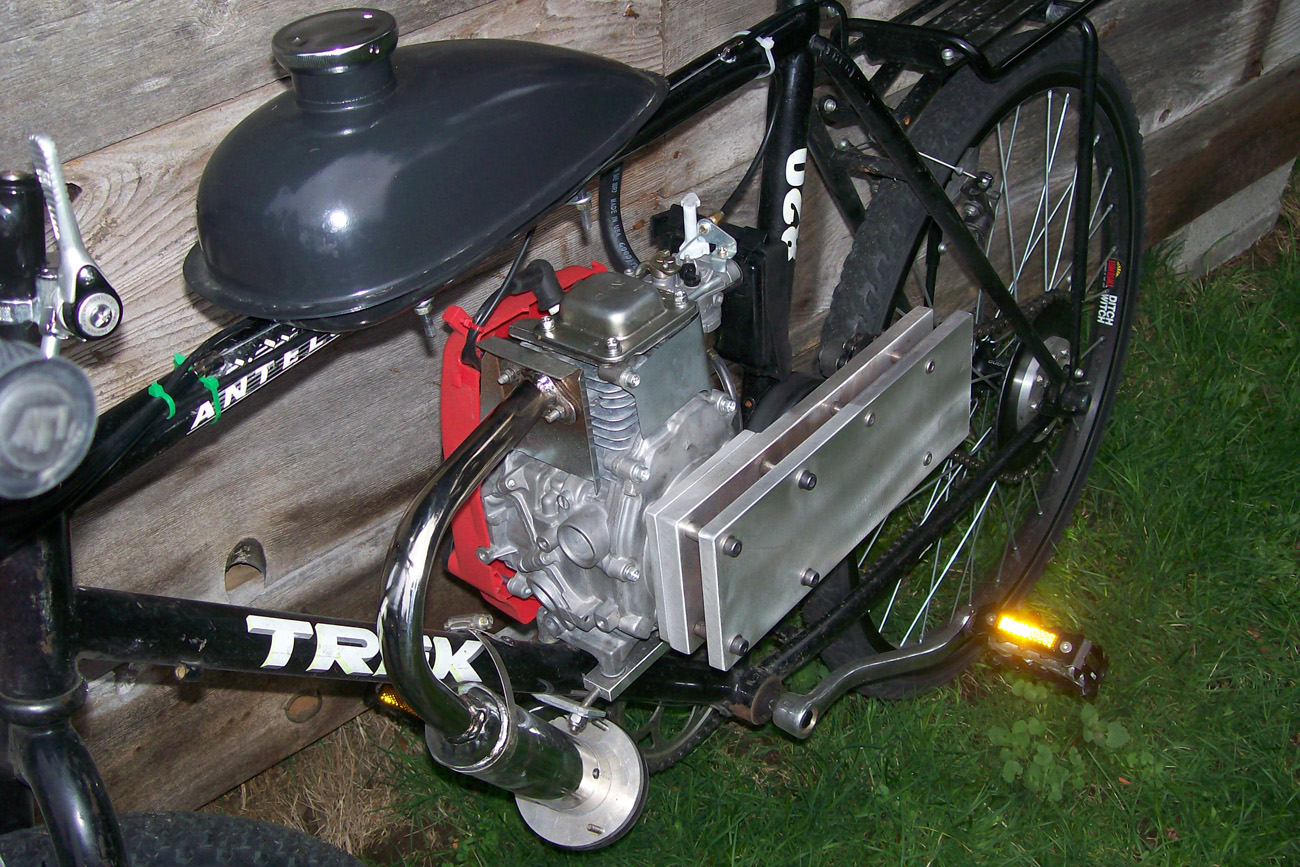

Name:	fbcproto2.jpg
Views:	1468
Size:	559.2 KB
ID:	7080   Click image for larger version

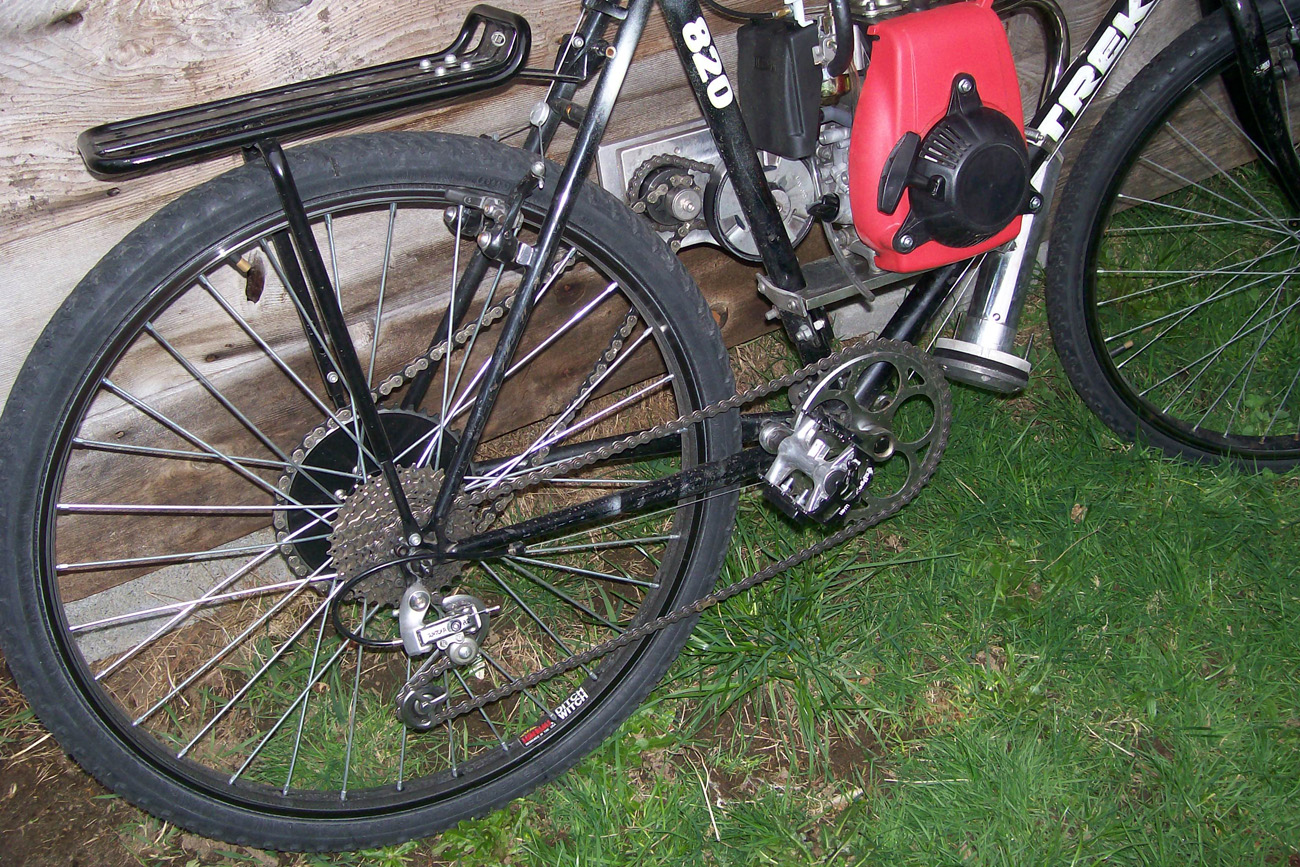

Name:	fbcproto3.jpg
Views:	1440
Size:	482.5 KB
ID:	7081   Click image for larger version

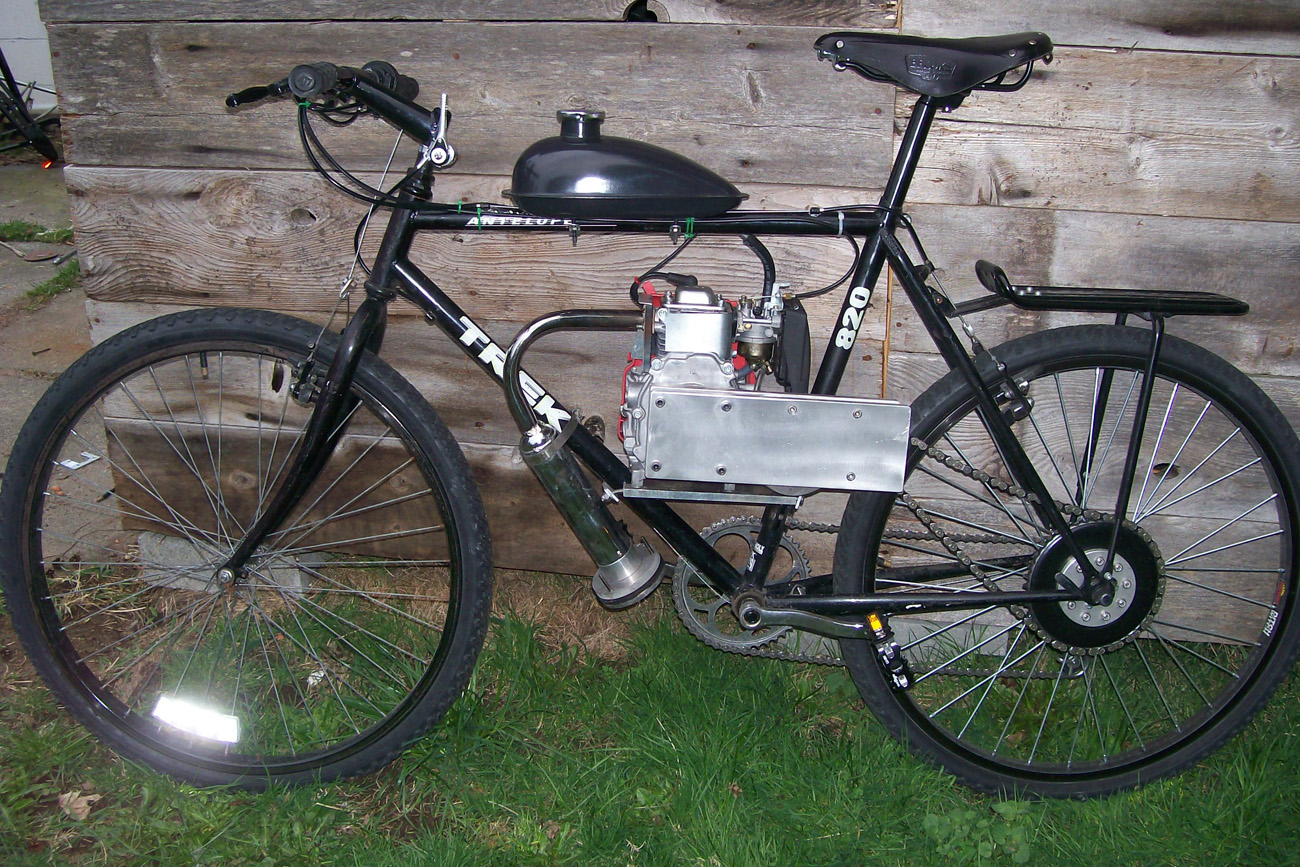

Name:	fbcproto4.jpg
Views:	954
Size:	648.3 KB
ID:	7082
__________________
FireBelly Cycles and MachineWorks (lol)
Motorized Bicycles, Parts, Tools and Accessories for the Real World!

Email Support@FireBellyCycles.com

www.FireBellyCycles.com

http://www.youtube.com/watch?v=-kNGVCnjJVs


Last edited by tyrslider; 04-02-2009 at 08:37 PM.
Reply With Quote
  #2
Old 04-04-2009, 10:20 PM
tyrslider's Avatar
tyrslider tyrslider is offline
Motorized Bicycle Elite Member

Join Date: Sep 2008
Location: RainCity
Posts: 958
Thanks: 0
Thanked 1 Time in 1 Post
Default Re: FireBelly 4 Stroke "Hard Box" Transmission

Open invite to anyone in the Seattle area to come ride the FireBelly 4 stroke. A few people rode it today and all were amazed! More to come! Mounted Speedo last night, top speed today was 34mph!
__________________
FireBelly Cycles and MachineWorks (lol)
Motorized Bicycles, Parts, Tools and Accessories for the Real World!

Email Support@FireBellyCycles.com

www.FireBellyCycles.com

http://www.youtube.com/watch?v=-kNGVCnjJVs


Last edited by tyrslider; 04-04-2009 at 10:32 PM.
Reply With Quote
  #3
Old 04-06-2009, 01:43 PM
Dan's Avatar
Dan Dan is offline
Staff

Join Date: May 2008
Location: Moosylvania
Posts: 10,851
Thanks: 168
Thanked 124 Times in 109 Posts
Default Re: FireBelly 4 Stroke "Hard Box" Transmission

Very cool Tyrslider. Bet that will do well in the market. Nice job on the mounting plate, too.

Could you explain your muffler?
__________________
=============================
Unkind is harder to type then kind

http://www.youtube.com/watch?v=y6Sxv-sUYtM


I want 2 ride my bicycle
Reply With Quote
  #4
Old 04-06-2009, 02:25 PM
Goat Herder's Avatar
Goat Herder Goat Herder is offline
Gutter Rider

Join Date: Apr 2008
Location: N.M.
Posts: 6,039
Thanks: 25
Thanked 52 Times in 48 Posts
Default Re: FireBelly 4 Stroke "Hard Box" Transmission

Interesting muffler mod? input please! Heres mine http://motorbicycling.com/f15/sbp-ja...ules-6862.html
__________________
Still gotta have a since of humor.

Last edited by Goat Herder; 04-10-2009 at 10:04 PM.
Reply With Quote
  #5
Old 04-09-2009, 01:37 PM
tyrslider's Avatar
tyrslider tyrslider is offline
Motorized Bicycle Elite Member

Join Date: Sep 2008
Location: RainCity
Posts: 958
Thanks: 0
Thanked 1 Time in 1 Post
Default Re: FireBelly 4 Stroke "Hard Box" Transmission

Just the tip from a tuneable supertrap m/c exhaust! Works well, sounds great!
__________________
FireBelly Cycles and MachineWorks (lol)
Motorized Bicycles, Parts, Tools and Accessories for the Real World!

Email Support@FireBellyCycles.com

www.FireBellyCycles.com

http://www.youtube.com/watch?v=-kNGVCnjJVs

Reply With Quote
  #6
Old 04-10-2009, 11:49 AM
Dan's Avatar
Dan Dan is offline
Staff

Join Date: May 2008
Location: Moosylvania
Posts: 10,851
Thanks: 168
Thanked 124 Times in 109 Posts
Default Re: FireBelly 4 Stroke "Hard Box" Transmission

Any updates Slider?
__________________
=============================
Unkind is harder to type then kind

http://www.youtube.com/watch?v=y6Sxv-sUYtM


I want 2 ride my bicycle
Reply With Quote
  #7
Old 04-17-2009, 09:56 AM
AndyT AndyT is offline
Motorized Bicycle Member

Join Date: Mar 2009
Location: Franklin, TN
Posts: 23
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: FireBelly 4 Stroke "Hard Box" Transmission

I love the details on your prototype. Nice work!
Reply With Quote
  #8
Old 04-19-2009, 12:27 AM
Fred Fred is offline
Motorized Bicycle Member

Join Date: Sep 2008
Posts: 24
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: FireBelly 4 Stroke "Hard Box" Transmission

I Like it a lot. Hope the production preps go well. I think you can make a lot of the US market happy having a product like that. I know I'm interested. Also like the xhaust looking to do something different in that area too on my bike, need to actually.
Reply With Quote
  #9
Old 04-21-2009, 11:49 PM
tyrslider's Avatar
tyrslider tyrslider is offline
Motorized Bicycle Elite Member

Join Date: Sep 2008
Location: RainCity
Posts: 958
Thanks: 0
Thanked 1 Time in 1 Post
Default Re: FireBelly 4 Stroke "Hard Box" Transmission

Hey, sorry guys! I've been neglecting this thread!

But not the transmission project!

So the redesign has been submitted. The tested dimensions and layout remain the same however the 1st reduction will now be sealed and bathe in oil. This will improve appearance, insure quieter operation and longer chain life. Weight is expected to be in the area of 7 lbs.

We believe that w/ the weight and drive train resistance down to a minimum and optimal gearing ratios that this is a top notch option for the 4 stroke motor kits. We also believe that appearance and craftsmanship are an integral part of the motorized bicycle experience. We have designed this transmission to complement the appearance of your vintage and modern rides alike. All of the machining and labor are and will continue to be performed in America; all parts and materials are sourced from American companies. Every effort is being made to keep cost down while operating w/ ethic and integrity. This will not be the cheapest option but we hope that the price to value ratio will provide you w/ the best transmission available. We are open to any questions comments or concerns.

FireBelly's new 4 stroke drive solution is going into production. Only a very limited # will be available for purchase initially.
Some of the features include:

CNC machined Aluminum; All hard parts!

Lighter Weight

Outboard Bearing Support for engine output shaft

Sealed Bearings

Quiet Operation/Minimal Maintenance; Closed and Sealed 1st reduction chain bathes in oil.

Many Gear Ratio Options!

Cool Clutch Operation for longer life.

Made and sourced locally in WA and the greater U S of A

We Think it is Simple and Ellegant!

I'll post pics in a couple weeks when we have them in hand.

Price is $350 for the transmission. Just a few, initially, will be available.

I will say that the high revs of the honda and the washing machine require a sealed oil bath on the primary chain which put the cost a little higher than anticipated. However this is a really nice precision piece of machinery that will be beautiful and bullet proof; designed for yrs of use w/ proper occasional maintenance.

I'm anticipating a 2 lb weight savings over the competition.

All moving parts are off the shelf replaceable w/ the exception of the shafts and the 1st reduction gear which has been milled down in thickness.

Max torque clutch should last a long, long time!

We expect to have them available in four weeks. We'll need to approve the new sealed design.

Thanks, Evan FBC
