Now Available : Custom Shifter Kit Sprockets

[Andyinchville1]

HI All,

Since I had been contacted by several people regarding the possibility of alternate chain rings for the SBP Shifter Kit, I decided to make a few today and though I'd post some pics for those of you out there who want to experiment with different gearing....

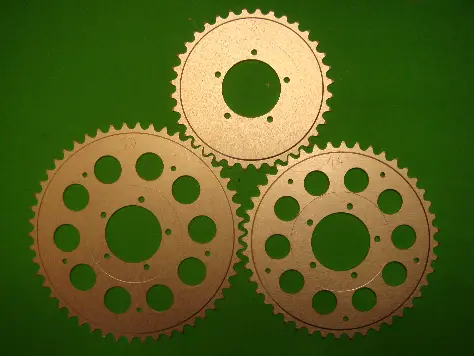

The pics show a 36T , a 44T and a 50T chain ring.

For weight conscious people, we will be putting lightening holes in the 36T sprocket for production models.

The pictures are of our hobbed chain rings.

I will be making red anodized CNC'd chain rings this weekend for my bike (I want to do some red chain rings since some of the parts on the bike for my next build are red and I wanted to color coordinate).

The CNC models may be a bit lighter since I will be able to make bigger cutouts (The hobbing machine can only make circles but I may experiment with "sausage" cutouts which the hobbing machine can also do).

The Chain ring weights are as follows (hobbed version):

Stock: 36T weighs 9.3 OZ Our Super Sprockets : 3.3 OZ (w/o lightening
holes)

Stock: 44T weighs 15.0 OZ Our Super Sprockets : 4.2 OZ

Our 50T Super Sprocket : 5.5 OZ

NOTE: We can make pretty much any size you could reasonably need. For pricing look to our myspace page at : myspace.com/kingssalesandservice

These chain rings are made using the same materials and care as our rear Super Sprockets.

Have fun!

Andrew

PS - I'll try to take better pictures next time....don't know why the flash didn't light up the sprocket details better.

Will Post Pics of the CNC'd version shortly.....

[stude13]

great looking work andy!

[Andyinchville1]

HI All,

Since I had been contacted by several people regarding the possibility of alternate chain rings for the SBP Shifter Kit, I decided to make a few today and though I'd post some pics for those of you out there who want to experiment with different gearing....

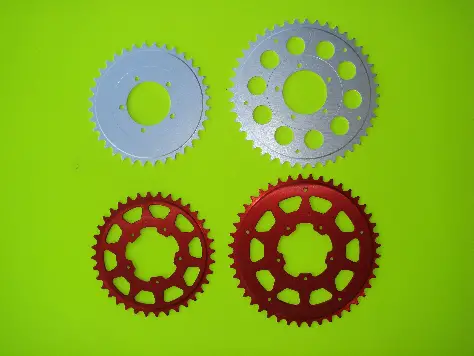

The pics show a 36T , a 44T and a 50T chain ring (the aluminum colored
chain rings).

For weight conscious people, we will be putting lightening holes in the 36T sprocket for production models.

I made red anodized CNC'd chain rings this weekend for my bike (I want to do some red chain rings since some of the parts on the bike for my next build are red and I wanted to color coordinate.....We can anodize the chain rings in the same 9 colors as our Super Sprockets and they are available in sizes to 70+ Teeth!

The Chain ring weights are as follows :

Stock: 36T weighs 9.3 OZ Our Chain Ring : 3.3 OZ (w/o lightening
holes...Production model will have lightening holes added)....CNC
Chain Ring weighs 2.6 OZ.

Stock: 44T weighs 15.0 OZ Our Chain Ring : 4.2 OZ, CNC version is
4.8 OZ.

Our 50T Chain Ring : 5.5 OZ (hobbed version did not make a CNC version).

NOTE: We can make pretty much any size you could reasonably need. For pricing look to our myspace page at : myspace.com/kingssalesandservice

These chain rings are made using the same materials and care as our rear Super Sprockets.

Have fun!

Andrew

[old motorbike]

Are these replacements for the front drive chain ring for SBP kit?
How many teeth on their stock one?
I'd like to gear mine up as the first 2 gears are too low.
