Two Speed Friction Drive

Egor · #1 10-23-2008, 02:23 AM

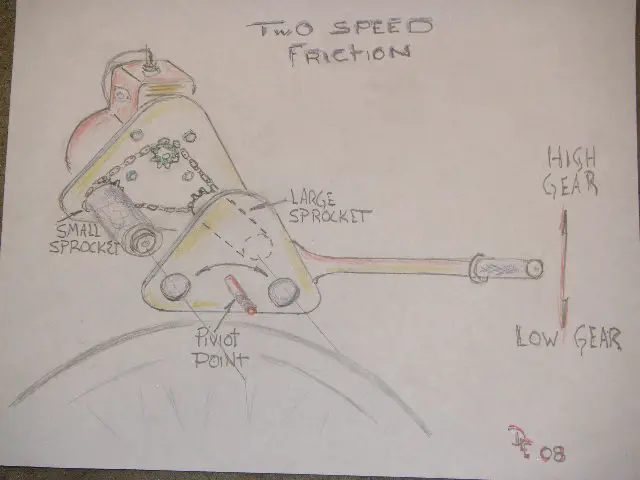

I have an idea for a Two speed friction drive I will post a drawing up and see if anyone wants to build one. If someone wants to they can build one, but please do not start making them for sale, the idea is mine you can use it just for your enjoyment. You can see how it works, the two rollers are running at two different speeds, you pick the one you need by moving the lever. It can be used with a clutch or a direct drive. You could use different size rollers for the speeds but I thought it would work better with larger rollers and determining their speed with the sprockets. The engine could be placed over the center and the drive on the outside, that would make it more compact. It would be fun to take off with a low speed and then shift to high and just cruse along at a quiet pace.
Have fun, Dave

5-7HEAVEN · #2 10-23-2008, 04:12 AM

Egor, I see your idea very clearly. I can visualize the engine mounted on a steel plate and central pivot 1/2" bolt which is perpendicular to the vertical mounting bracket. Under the engine plate are two Staton friction rollers suspended by 5/8" bearings and hangers. The rollers' threaded ends screw onto 2" stubs which mount 10-tooth sprockets. These sprockets align with the centrifugal clutch. The engine's 10T sprocket clutch chains to one friction roller, which then chains to the other spindle. Of course, the bearing's pillow blocks mount via elongated holes which allows chain adjustment. Spacers under the engine adjusts tension to the first friction roller. Springs provide tension onto the tire w/1.25" roller. A strong cable with locking lever controls the shift to the 1.5" friction roller.

I would have considered thid option a few months ago, since I was very interested in shifting for more engine rpm. Instead, I chose the simpler, easier but costlier way by using one engine per wheel, each with different size friction roller.
__________________
Honey, it's just a bicycle. and i REALLY need it to excercise, and to ride it to work.(hehe)

deacon · #3 10-23-2008, 07:56 AM

I liike the concept but why not a single spindle that has two sizes. One small at the end and longer near the motor, Then lift the motor and move it over to change gears. Seems to me moving the motor would be simpler than building something with more gears and chains. Then again what do I know but I do like the concept.

**Bikeguy Joe** · #4 10-23-2008, 08:17 AM

Or a tapered roller and as you want more overall ratio, slide the engine over gradually so the roller diameter increases.

**Bikeguy Joe** · #5 10-23-2008, 08:18 AM

That is a nice simple design Dave.

OSCAR383 · #6 10-23-2008, 09:35 AM

I Dig The Two Roller Design

NEAT TIMES · #7 10-23-2008, 03:27 PM

A Spring Loaded Chain Or Cogged Belt Idler Would Also Fit. One Over Center Spring, Like The Clutch Set Up On The Golden Eagle Could Control The Drive Tension FOR ROLLER OF CHOICE. A Neutral Detent Mechanism And You Have A Compact Setup.

Goat Herder · #8 10-23-2008, 04:09 PM

This looks very simple I like it cool thinking out of the box!!

I bet it will work great.Keep us posted

Egor · #9 10-23-2008, 07:33 PM

Deacon I was thinking of the idea that you are suggesting, and I think it would work but the motor would need to move quite a bit. I was thinking along the same line but you would just slide one roller over the other, so on the small one there would be two slots in it, then the larger one would be just moved in and over on the slots, and the engine would sit still. Have fun, Dave

Egor · #10 10-23-2008, 07:53 PM

Joe, I was thinking of the same line as you, but with a taper you would actually have more than one size of drive on the tire at the same time, so you would have one surface going slower than the other, you could use a very thin tire and that would work. The reason I used the chain, or could be a belt is that you can use a larger rollers and take advantage of the extra surface to drive the tire, IE smaller sprocket on the engine. It is possible to drive one of the rollers directly off the engine and couple the other with a chain or belt.
I don't think it would be necessary to have the bearings move to adjust tension, just put a roller on the slack side of the chain in an elongated slot to take up slack. For the speed selection I was thinking of a spring that would hold neutral (no rollers touching) and then push the lever to a hooked position for each speed, you could even use a tank shifter like the old Indians, just use a leverage joint in the middle. Have fun, Dave
