Maybe this will help?

**Bikeguy Joe** · #1 10-22-2008, 07:00 AM

Click, right click, copy and paste to "my pictures" for quick reference.

**Bikeguy Joe** · #2 10-22-2008, 04:58 PM

I would go a little easier with the studs going into the case on the china motors....loctite, loctite.

**Dave31** · #3 10-23-2008, 07:15 PM

Thanks Godfather

I think this will be very helpful for some

**Bikeguy Joe** · #4 10-23-2008, 07:18 PM

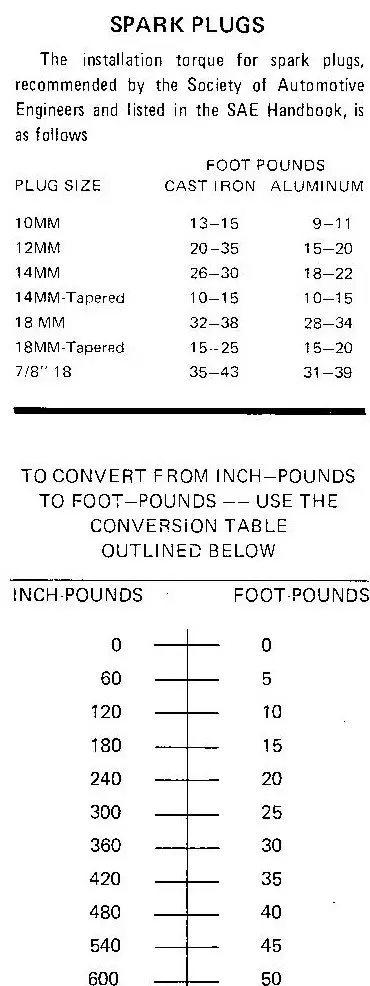

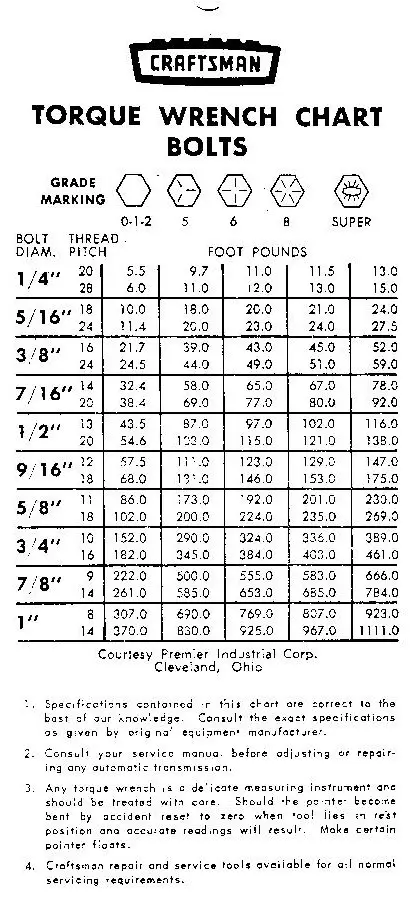

I was hoping it would be....I have seen a few lately asking for torque amounts and conversions....I got the card with my vintage Sears torque wrench.
