Thumbs up Chopper & Stretch Cruiser Extra Wide Triple Tree Modification

If anyone can share information on modifying the Stretch Cruiser or Chopper Bicycle triple trees to accommodate the 20", 24" or 26" 100mm rims with the 4.25" tires please share it here.

I've searched the forum for another members post about modifying the triple trees for Stretch Cruiser's & Chopper Bicycles, but can't find the post!

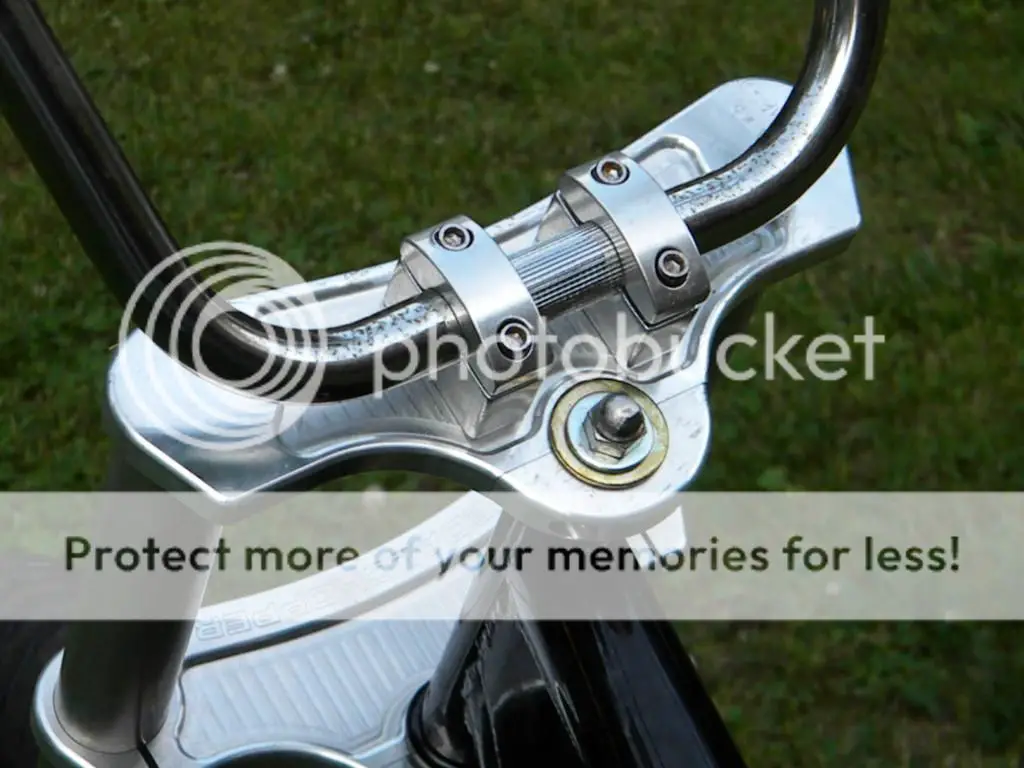

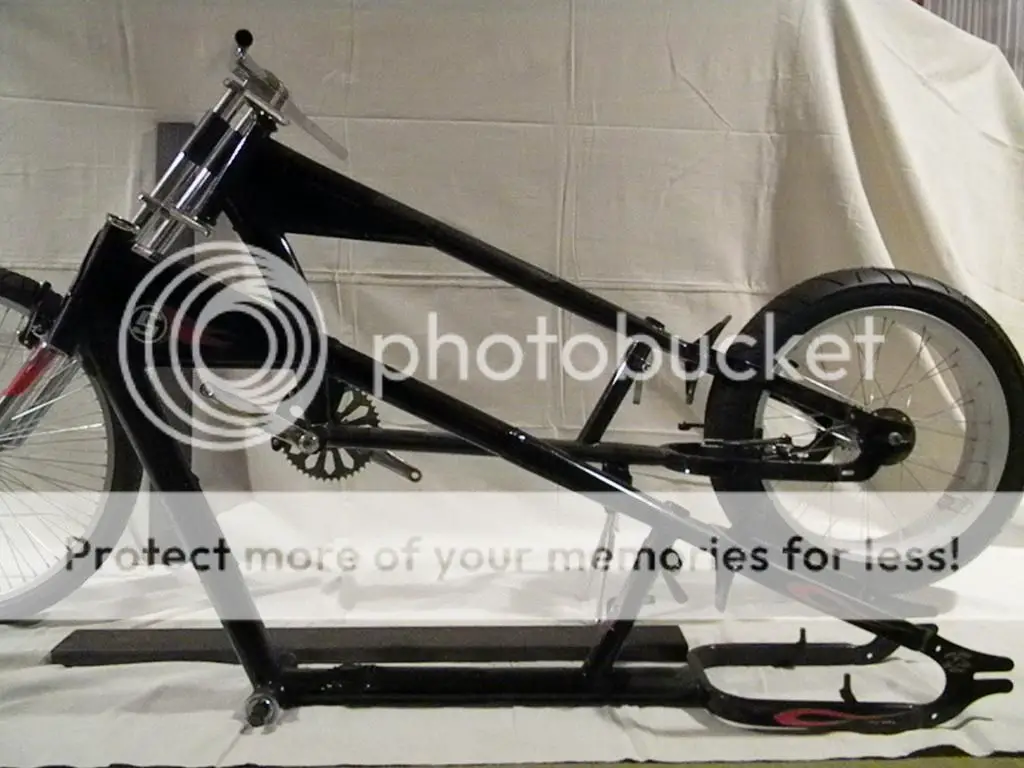

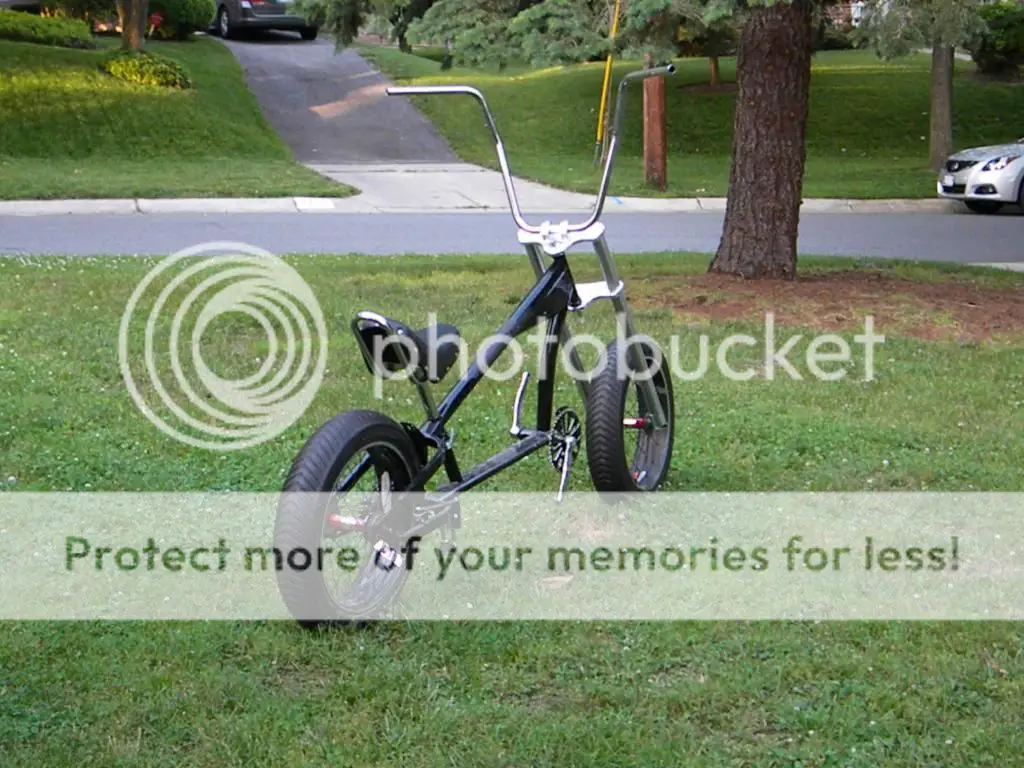

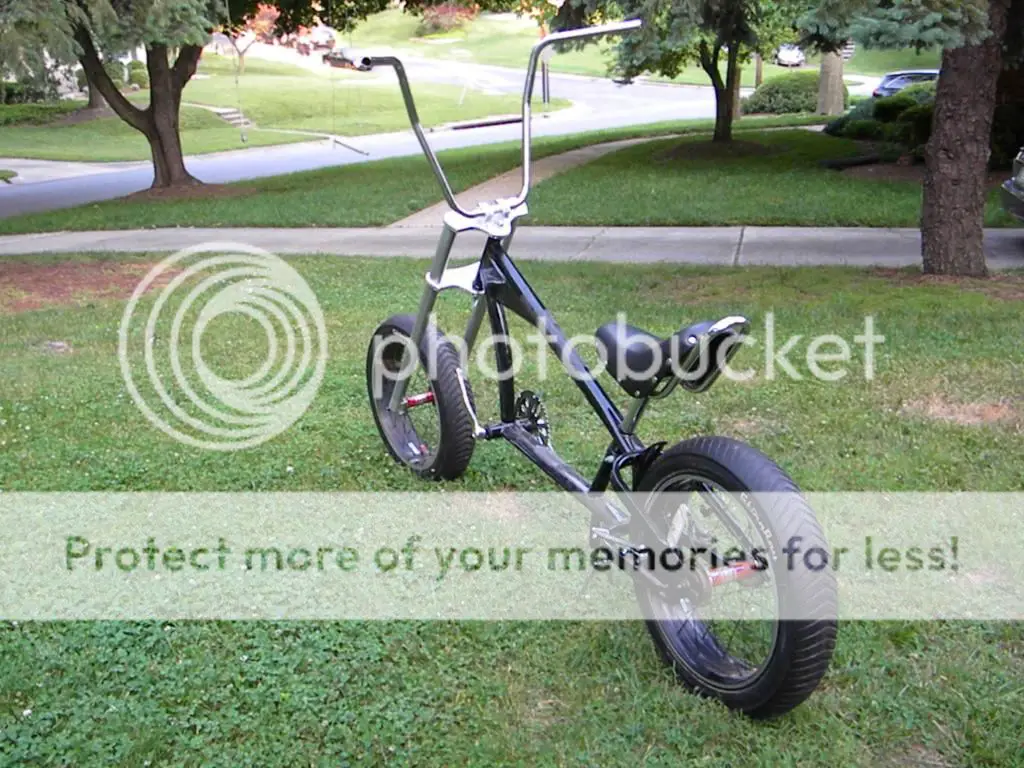

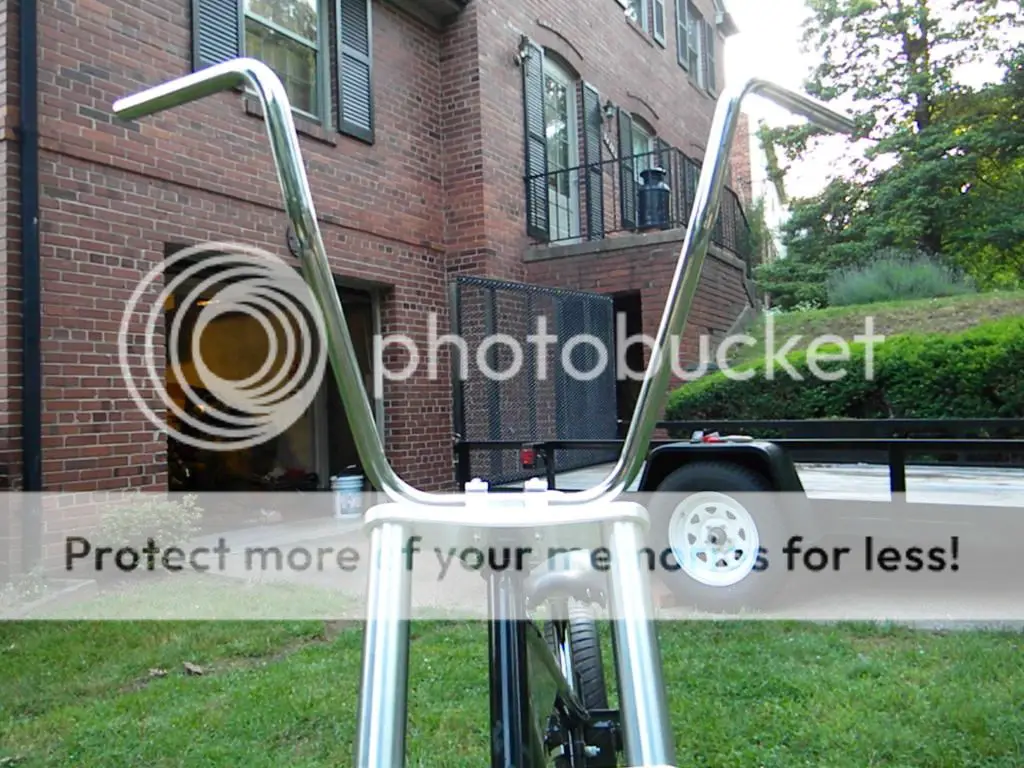

Below are some Schwinn OCC Stingray Chopper's with the triple tree modification's.

If you have any information for others or have other idea's / suggestions, as to how one could do it yourself, that is modifying the triple trees to accommodate the extra wide 4.25" tires, please share it here.

Note, this modification is an alternative to purchasing the more costly custom made cnc machined triple trees, which can cost as much as $300.00 USD !!!! OUCH !!!

C.H.
P.S.Thanks & Credit to Ollb83 & others who have shared their how to information for modifying triple trees.









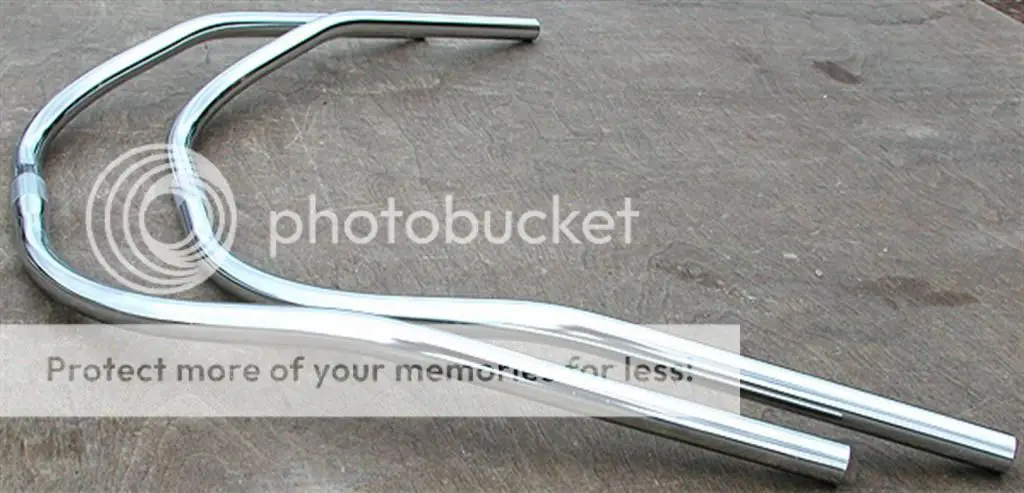

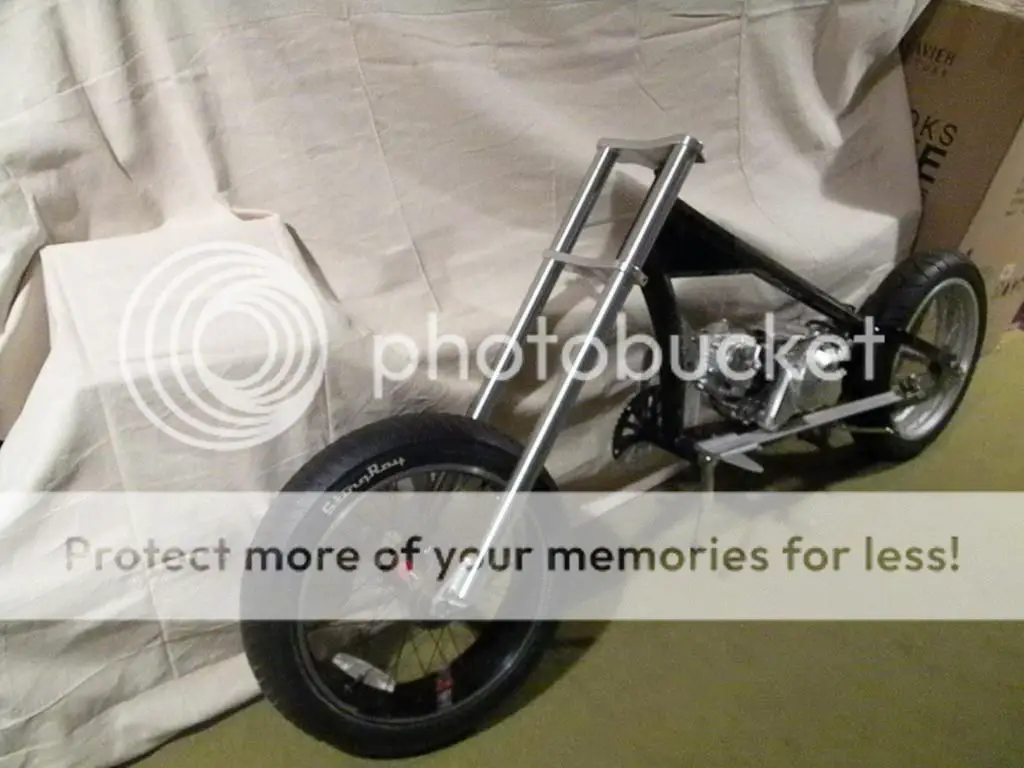

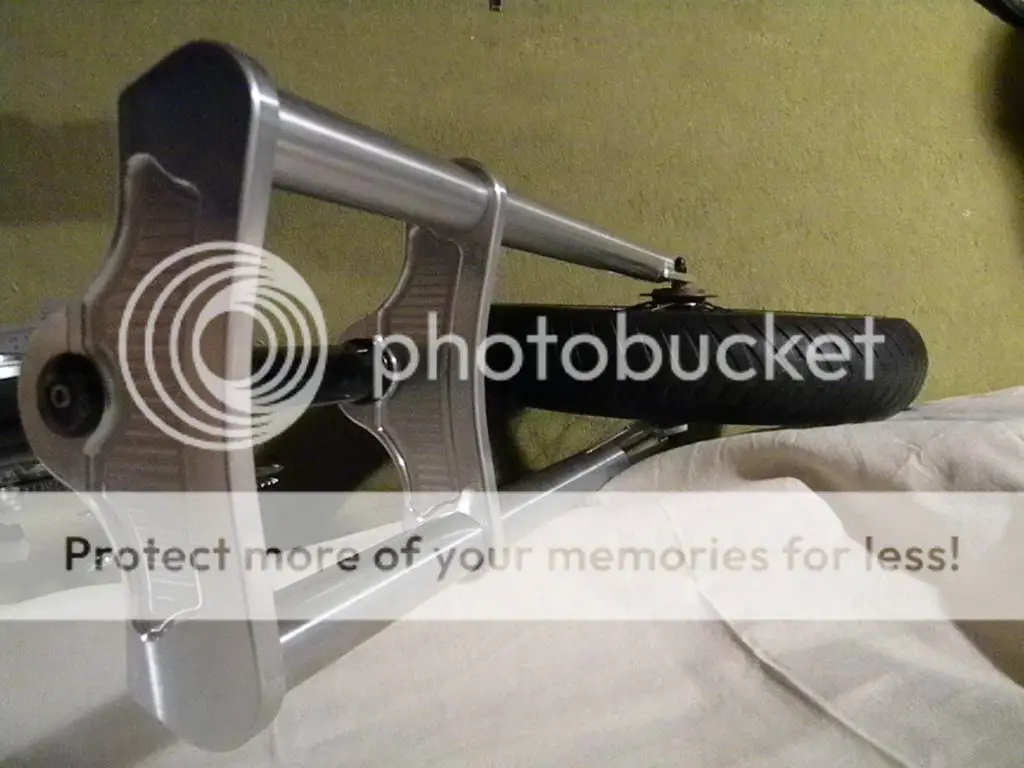

Here are the Custom Made Extra Wide Forks & Triple Trees which will accommodate all three (3) sizes of wheels in the 100mm rim size and 20", 24", 26" wheel / tire size's.
The above 100mm rims are available from Cycles U.S. Homepage - Cycles U.S. LLC/Choppers U.S. here's the Link, note you'll have to lace the spokes / hub to these rims!
Wheel/Tire/Tube/Hub/Rim : Rims Only - Cycles U.S. LLC/Choppers U.S.

These extra wide forks are from Europe and commonly used on basman bicycles these have a retail price of nearly $300.00 + $50-60 USD for the shipping from Europe. So yes nearly $400.00 dollars, ouch will you custom make yours or buy them ready made?
Oh almost forgot here's the measurements for these forks the measurements shown below:

Steering tube = 1-1/8"

Extra Wide Fork Black,

with Hub = 4-1/4" Wide For (100mm) Rims; 36 Holes; 3/8" Axle; 135mm Lock Nut to Lock Nut; 170mm Axle Length Overall

length legs: 660 mm =25.98425 inches.
width legs: 150 mm =5.905512 inches.
length steerer tube: 230 mm =9.055118 inches.
width axle: 165 mm =6.496063 inches.


__________________
P.S. Builders check this thread for in depth info for Horizontal 4-stroke Honda crf50 Pitbike / Dirtbike / Atv engines:

These engines work best used for motorizing the Stretch Cruisers & Chopper builds.

Last edited by Crazy Horse; 11-20-2011 at 08:54 AM. Reason: Typo
Reply With Quote
  #2
Old 11-19-2011, 10:31 AM
azbill's Avatar
azbill azbill is offline
Motorized Bicycle Elite Member

Join Date: May 2008
Location: Fountain Hills, Arizona
Posts: 3,347
Thanks: 71
Thanked 21 Times in 21 Posts
Default Re: Chopper & Stretch Cruiser Extra WideTriple Tree Modification

CH,,,
have you seen this thread ???
http://motorbicycling.com/f41/m-m-m-donuts-35326.html
__________________
Bill

Intelligence is learning from your own mistakes,
Wisdom is learning from the mistakes of others

EZ Motorbike Dealer - Fountain Hills, AZ
www.ezmotorbike.com
EZ Motorbike of Fountain Hills
azgrampa@gmail.com
Reply With Quote
  #3
Old 11-20-2011, 08:50 AM
Crazy Horse's Avatar
Crazy Horse Crazy Horse is offline
Dealer

Join Date: Feb 2009
Location: USA
Posts: 1,140
Thanks: 129
Thanked 67 Times in 55 Posts
Thumbs up Re: Chopper & Stretch Cruiser Extra WideTriple Tree Modification

Quote:
Originally Posted by azbill View Post
CH,,,
have you seen this thread ???
http://motorbicycling.com/f41/m-m-m-donuts-35326.html
Thanks Bill, I knew someone would share some info about these Fat Forks and or Triple Trees.

Here's the Link to Ficksers & Project 346 information:

http://www.project346.nl/db/WAS49a81...der_WEB_II.pdf

244 Build Up Kit

Forks

Peace C.H.
__________________
P.S. Builders check this thread for in depth info for Horizontal 4-stroke Honda crf50 Pitbike / Dirtbike / Atv engines:

These engines work best used for motorizing the Stretch Cruisers & Chopper builds.
Reply With Quote
  #4
Old 11-20-2011, 06:25 PM
DaveC's Avatar
DaveC DaveC is offline
Motorized Bicycle Elite Member

Join Date: Jul 2010
Location: Boise, ID
Posts: 889
Thanks: 1
Thanked 4 Times in 3 Posts
Default Re: Chopper & Stretch Cruiser Extra WideTriple Tree Modification

You can get aluminum plate of all kinds of sizes on eBay for a decent price. As long as you don't need a raked tripletree decent shop tools could make them. The hole sizes can be a problem unless you have a boring bar and a mill but I think they could be made to fit what ever fork tubes you want even if drilling the holes is the only option. I got a large set of drill bits from 1/2 to 1 1/8ths, though, and have no problem with attacking a problem like this on my own
Reply With Quote
  #5
Old 12-30-2012, 04:11 PM
chainmaker's Avatar
chainmaker chainmaker is offline
Motorized Bicycle Elite Member

Join Date: Jan 2010
Location: Ma USA
Posts: 2,438
Thanks: 78
Thanked 57 Times in 51 Posts
Default Re: Chopper & Stretch Cruiser Extra WideTriple Tree Modification

Im looking for some of the aluminum triple trees for the fork legs to replace the stampednsteel ones. Ive seen the pedal chopper kit but im just looking for the plates. Any help?
__________________
Motorbicycling.com - The Ultimate Users Guide
Reply With Quote
  #6
Old 12-31-2012, 07:08 PM
pedalchopper pedalchopper is offline
Motorized Bicycle Senior Member

Join Date: May 2010
Location: Ft Myers beach Florida
Posts: 92
Thanks: 13
Thanked 14 Times in 13 Posts
Default Re: Chopper & Stretch Cruiser Extra WideTriple Tree Modification

Crazy Horse

I will be offering them in about 2 weeks specifically for OCC schwinn to accomodate 4.25 wheel...

Probably $200.00 range but they will be 100% aluminum - billet yokes and brushed aluminum down comers. They will have disc tabs and I will also be offering an adaptor which will be screwed onto the freewheel threads of any OCC schwinn rear wheel and allow you to convert to a front / disc wheel.

I am also going to build to suit... Steering tubes upto 14 inches for now and fork length upto 31 inches.

put pedalchopper.com on your favorites... they should be available beginning by or before 1-15-2013 Jim
Reply With Quote
The Following User Says Thank You to pedalchopper For This Useful Post:
  #7
Old 01-01-2013, 09:04 AM
chainmaker's Avatar
chainmaker chainmaker is offline
Motorized Bicycle Elite Member

Join Date: Jan 2010
Location: Ma USA
Posts: 2,438
Thanks: 78
Thanked 57 Times in 51 Posts
Default Re: Chopper & Stretch Cruiser Extra WideTriple Tree Modification

Hey Jim
I sent you an email through your site a couple days ago. Im looking to buy a set of the yokes I dont need new fork legs though.
__________________
Motorbicycling.com - The Ultimate Users Guide

Last edited by chainmaker; 01-01-2013 at 09:48 AM.
Reply With Quote
  #8
Old 01-25-2013, 05:39 PM
Crazy Horse's Avatar
Crazy Horse Crazy Horse is offline
Dealer

Join Date: Feb 2009
Location: USA
Posts: 1,140
Thanks: 129
Thanked 67 Times in 55 Posts
Thumbs up Re: Chopper & Stretch Cruiser Extra WideTriple Tree Modification

Quote:
Originally Posted by pedalchopper View Post
Crazy Horse

I will be offering them in about 2 weeks specifically for OCC schwinn to accomodate 4.25 wheel...

Probably $200.00 range but they will be 100% aluminum - billet yokes and brushed aluminum down comers. They will have disc tabs and I will also be offering an adaptor which will be screwed onto the freewheel threads of any OCC schwinn rear wheel and allow you to convert to a front / disc wheel.

I am also going to build to suit... Steering tubes upto 14 inches for now and fork length upto 31 inches.

put pedalchopper.com on your favorites... they should be available beginning by or before 1-15-2013 Jim
Jim, looking forward to your new Extra Wide Front Fork & Triple Trees!

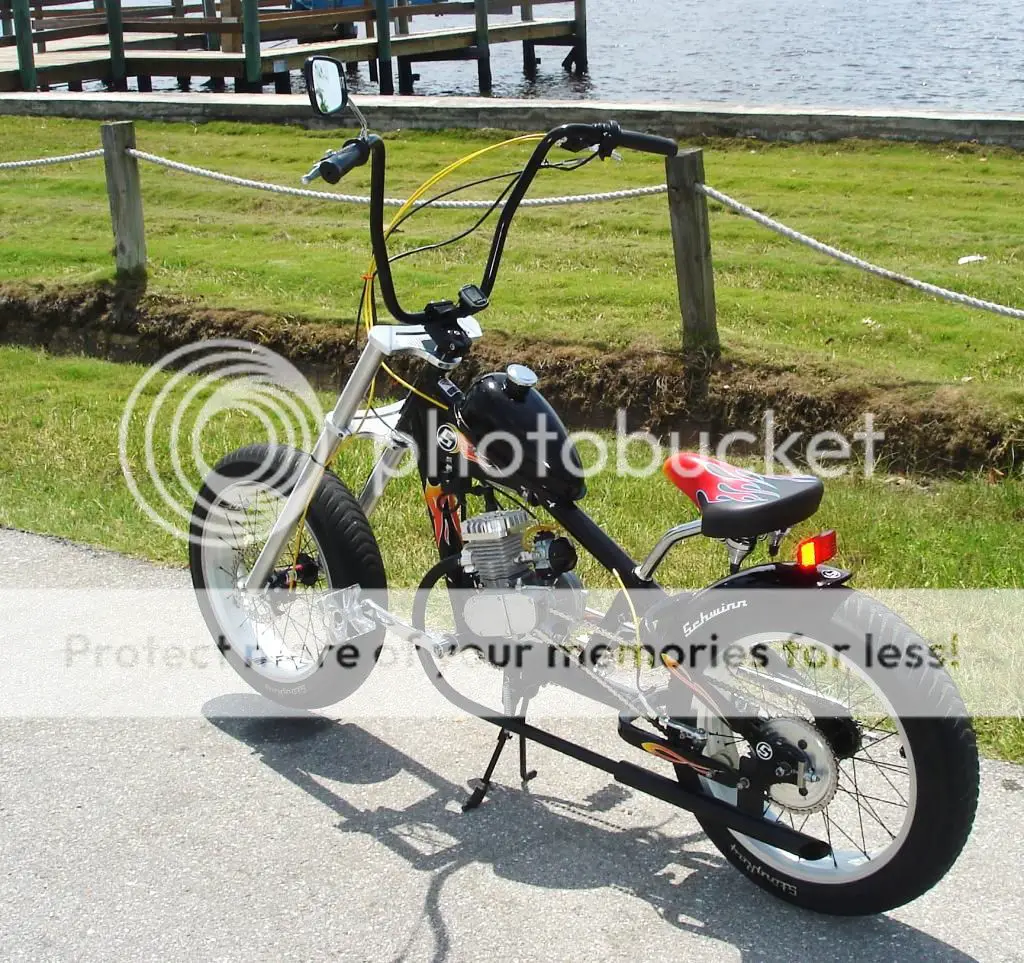

Extra wide fork with black sealed bearing hub to fit 80mm and 100mm wide rims.

WOW, American made products for our Super Fat Tire Builds.

Thanks Jim!


Go Fat Early:


C.H.
__________________
P.S. Builders check this thread for in depth info for Horizontal 4-stroke Honda crf50 Pitbike / Dirtbike / Atv engines:

These engines work best used for motorizing the Stretch Cruisers & Chopper builds.
Reply With Quote
The Following User Says Thank You to Crazy Horse For This Useful Post:
  #9
Old 01-26-2013, 12:35 PM
davidstipek's Avatar
davidstipek davidstipek is offline
Motorized Bicycle Newbie

Join Date: Jan 2013
Location: chiangmai, Thailand
Posts: 19
Thanks: 0
Thanked 1 Time in 1 Post
Default Re: Chopper & Stretch Cruiser Extra WideTriple Tree Modification

Crazy Horse

Why not use Honda, Yamaha, Kawasaki... Triple trees and forks??? It gives you oil damper suspension in front???? I used Hand on mine, have disc brake Bicycle on front and rear. Electric bikes have bicycle cable brake levers with switches for brake lights. they have a cool set of bar mounted switches right hand is High/Low beam. Left hand is on/off, turn signals and horn button. they all clamp to handle bars. Also M/C supply houses have a matching black base with red switch - Kill switch... look for 70-125cc scooters. I converted my hubs to use sealed bearing now I use M/C bolt goes thru complete fork and assembly from one side and lets you take nut off pull bolt nd drop compete wheel assembly even with disc brake. You can find forks with same size 3/8" bolt for axle as Bicycle. When you use sealed bearing be sure to use a spacer between the two inside hub (same as some M/C) save cocking bearings to inside and ruining a nice hub!

The reason I chose M/C Forks was for strength! and they are already proven road ready! All I needed was a cheap aluminum or chromed tube bending or collapsing while on road... away from home. I have a couple sets and even the kids 50-70#ers doing wheelys, jumping off curbs have had issues. They look good but not always perfect! Not worth crash and burning... and here they'll just drive over you, motorcycles on the road... have been here for years, Bicycles longer yet... but noone wants to remember them. They still use as three wheelers push and pull carts, as Tuk tuks for taxi's but get behind one in a Taxi and they Cuss Like a Sailor about them! I have tiped a Driver to be more curtious towards them at times. Put a good light or Motor on one and they give you plenty of room... no clue to what you are! haha!!

Again go to Junk yard... old M/C usually 25-35 USD here 100 Baht fits 5-7" x 1" headtube play with the bearings and races most are Ballbearing also... done deal!! If the frame of the bike is there pay for headtube and 2" sections of extruded pipe, just take a hacksraw with you and now bearing... no issue

David

Last edited by davidstipek; 01-26-2013 at 12:46 PM.
Reply With Quote
  #10
Old 01-26-2013, 12:56 PM
davidstipek's Avatar
davidstipek davidstipek is offline
Motorized Bicycle Newbie

Join Date: Jan 2013
Location: chiangmai, Thailand
Posts: 19
Thanks: 0
Thanked 1 Time in 1 Post
Default Re: Chopper & Stretch Cruiser Extra WideTriple Tree Modification

I have a set of steel brackets that let you convert standard front or rear fork to accept mounting International Standard Disc brake calipers. I will trade with Pair of Calipers, spin-on rotor adapters and rotors for a 24" Steel chromed rim (for a 4.25" or wider tire) and tire. I need one fat tire 4.25 or wider and rim to fit. If uses 36H spokes I not worrying about gauge of spoke holes, rim needs to be drilled for 36 spokes... do not need spokes or hub!

David

Last edited by davidstipek; 01-26-2013 at 01:00 PM.
Reply With Quote
