Talking Briggs and Stratton Bike

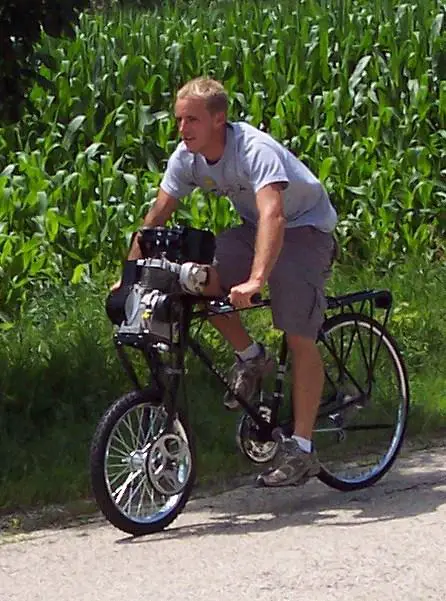

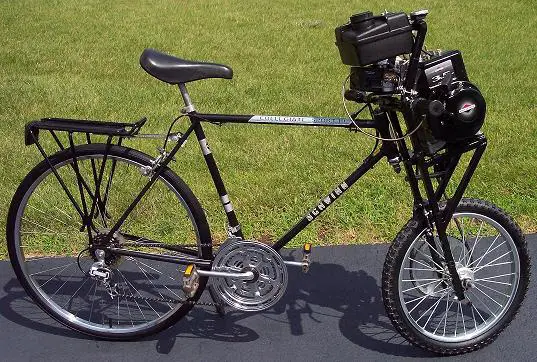

I have included a picture of the motor bicycle that I built using an old ten speed road bike. The front mount engine required no modification to the existing frame, just a new fork. All the parts from this are common hardware or off of a go-kart. It handles real well and is geared for a speed of 35mph. It could easily go faster, I just didn't trust riding that fast to work every day...it was scary enough blowing a tire at 30mph. The height of the handlebars is comfortable and I dont smell the exhaust when I ride. Any comments or questions welcome.
Attached Thumbnails
Click image for larger version

Name:	bike1.jpg
Views:	5728
Size:	81.3 KB
ID:	1488   Click image for larger version

Name:	bike2.jpg
Views:	3573
Size:	75.1 KB
ID:	1489

Last edited by stewart; 07-21-2008 at 07:19 PM. Reason: misspelled word
Reply With Quote
  #2
Old 07-21-2008, 08:17 PM
UncleKudzu's Avatar
UncleKudzu UncleKudzu is offline
Motorized Bicycle Elite Member

Join Date: May 2008
Location: Deep in the American South
Posts: 353
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: Briggs and Stratton Bike

now that's a different approach! nice looking work, too. is that a 20" front wheel?

there was a very early motorcycle that had a front wheel arrangement like that; wish i could remember the name of it.
Reply With Quote
  #3
Old 07-21-2008, 08:50 PM
Ilikeabikea's Avatar
Ilikeabikea Ilikeabikea is offline
Super Moderator

Join Date: Jan 2008
Location: Ptown, Texas
Posts: 2,749
Thanks: 0
Thanked 1 Time in 1 Post
Default Re: Briggs and Stratton Bike

Welcome to the forum. I've never seen a motorized bicycle set up like that before. I bet that will get up and go if you really wanted it to. Glad you joined us..........................
__________________
You can pick your friends and you can pick your nose, but you can't pick your friends nose...........




Reply With Quote
  #4
Old 07-21-2008, 09:36 PM
Dave31's Avatar
Dave31 Dave31 is offline
Super Moderator

Join Date: Mar 2008
Location: Tucson,Arizona
Posts: 11,120
Thanks: 170
Thanked 65 Times in 60 Posts
Default Re: Briggs and Stratton Bike

Welcome to the forum

Nice work
Reply With Quote
  #5
Old 07-21-2008, 10:09 PM
deacon's Avatar
deacon deacon is offline
minor bike philosopher

Join Date: Jan 2008
Location: north carolina
Posts: 8,082
Thanks: 0
Thanked 10 Times in 10 Posts
Default Re: Briggs and Stratton Bike

Now that's a bike. Welcome to the madness.

that's what I want to do next on a much smaller scale of course.
__________________
My posts have entertainment value only. A bike ain't yours till it has your blood on it. Then it owns you.
Reply With Quote
  #6
Old 07-22-2008, 08:55 AM
seabillco's Avatar
seabillco seabillco is offline
Motorized Bicycle Newbie

Join Date: Jul 2008
Location: Grants Pass, Oregon
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: Briggs and Stratton Bike

7-21-08
Hi, Stewart
That looks great! Very Nice Work!!!
May I ask, how did you attach the drive pulley to the front wheel?
Also, I think that's a BS 3.5HP engine, right? Do you know how much it weighs?
I'm using a Ryobi 31cc 2 stroke and it weighs 3.75 pounds with no fuel.
Finally, I'm guessing there's a centrifugal clutch on the crank end, right? Are you happy with that approach? That would be a very nice feature for stop and go stuff...
That is one of the coolest looking builds I've ever seen. If you have any more pictures, videos, etc. I'd sure love to see them.

Thanks for sharing!
Steve G.
Grants Pass, Oregon
Reply With Quote
  #7
Old 07-22-2008, 11:44 AM
Spunout's Avatar
Spunout Spunout is offline
MB Builder Extraordinaire

Join Date: Jul 2008
Location: coventry, RI
Posts: 476
Thanks: 0
Thanked 1 Time in 1 Post
Default Re: Briggs and Stratton Bike

that certainly is a unique take.
may i ask why, you opted for front-mounting?
Reply With Quote
  #8
Old 07-22-2008, 04:52 PM
stewart stewart is offline
Motorized Bicycle Newbie

Join Date: Jul 2008
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: Briggs and Stratton Bike

Yes the front wheel is a 20" wheel that is normally used on carts. I used this type for the stronger spokes over a bicycle wheel. I opted for a smaller radius wheel because it let me get away with a single stage reduction off the engine crankshaft. The bearings were welded shut and welded to the axle to create a live axle. From there I welded a go-kart sprocket to a universial hub to drive the axle. The sproket is pretty close, but not perfect since I didn't have the hub turned to match the id of the sproket.

The engine is quite heavy, probabally 20-25lbs. It has a beefy flywheel and has i think 160cc of displacement. The clutch is a centrifugal clutch straight off of a go kart and works great. Since I have the bike geared for a modest 35mph, with a 3.5hp I hardly even have to pedal before the engine works. For stop and go the clutch works, but will wear rather quickly because unless the engine as at high rpm the pads slip and wear. It is excellent however because I can idle the engine at stop lights just like a car.

I went for the front mount for a couple of reasons. First, I had to do no welding or any modifications to my bike frame. Secondly, I needed a strong place to mount the engine. The geometry of the existing frame made it difficult to mount such a heavy motor because the frame only has one layer of tubes running lengthwise. The fork I built has 2 layers, which ensures the motor doesn't twist at high throttle. I hope that makes sense, if not I can try to explain more.

I sure I could gear this motor to go crazy fast, but geared it low to keep my crusing speed near the legal limit of 30mph with the engine at full rpms. Crusing with the motor at too low rpms for a long time would fry my clutch. When on a level surface at 35mph my throttle is hardly even open
Reply With Quote
  #9
Old 09-09-2008, 02:43 PM
mgladden2's Avatar
mgladden2 mgladden2 is offline
Motorized Bicycle Member

Join Date: Aug 2008
Location: Las Cruces
Posts: 22
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: Briggs and Stratton Bike

am i the only one who shook his head and laughed when he saw this? both at the ingenuity, and the downright madness of motorized bicyclists.
Reply With Quote
  #10
Old 09-09-2008, 02:50 PM
Jemma Hawtrey's Avatar
Jemma Hawtrey Jemma Hawtrey is offline
Motorized Bicycle Elite Member

Join Date: Dec 2007
Location: Essex, UK
Posts: 288
Thanks: 0
Thanked 1 Time in 1 Post
Default Re: Briggs and Stratton Bike

I remember when I was a kid my father used to have an evil petrol mower with an engine that was the very devil to start... but once it got going..

Imagine my amazement when I see on youtube a bike with a similar design to yours running the identical engine as that battered and recalcitrant lawnmower.

In the case of that bike the builder had put in layshafts to take the drive but it brought back alot of memories.

I like the chain drive idea.. but that engine is pretty substantial. I do know of one front fork design with twin cylinders and the roller drive between them, but I dont think more than one survives..

Jemma xx
