Default NuVinci installation on a Micargi cruiser

I recently installed a Nuvinci and a SBP shifter kit on my Micargi "General" cruiser. There was a little bit of work involved in the hub installation, so I took some pictures and I'm describing the process here.

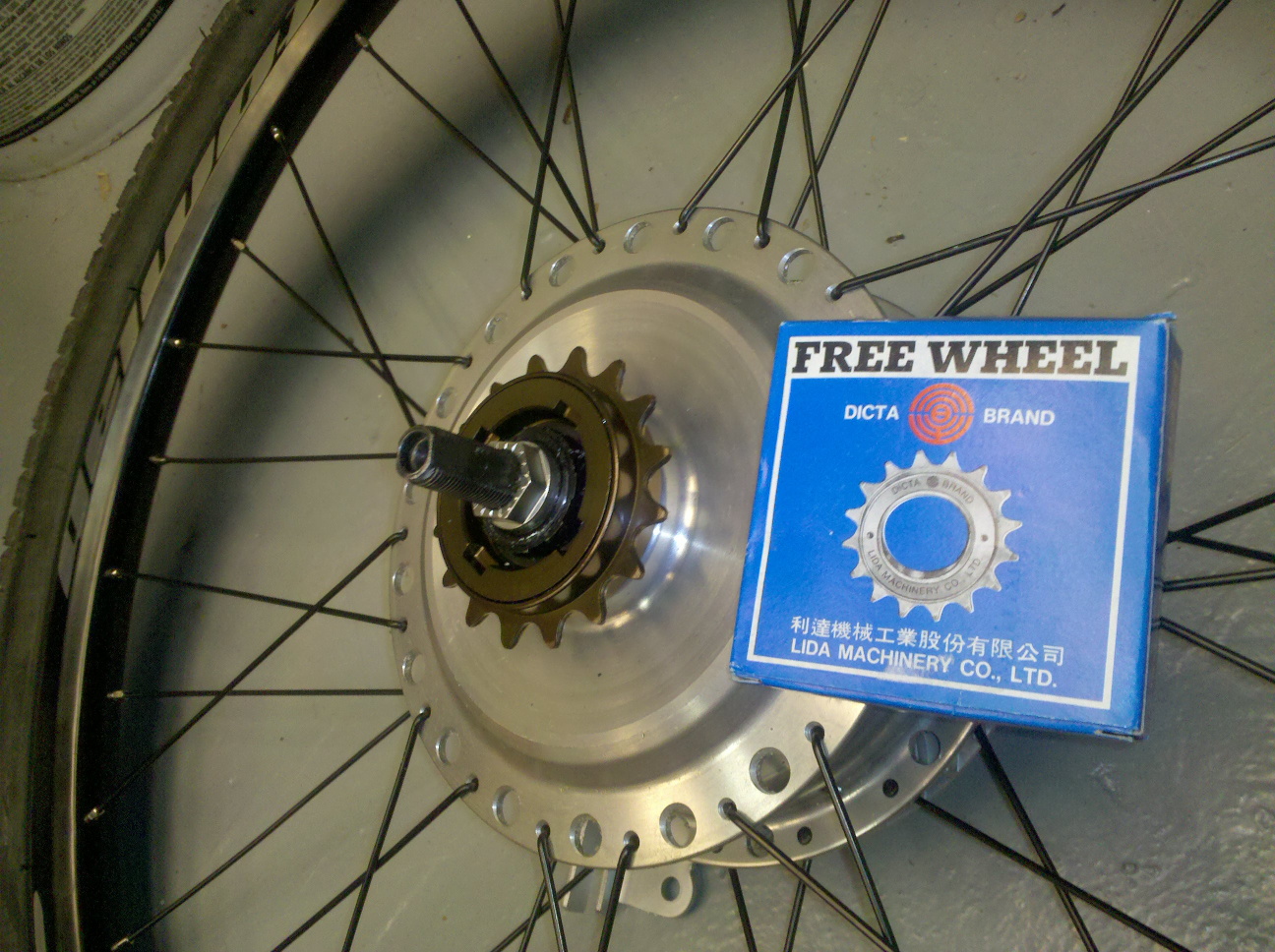

Step one - find the Nuvinci hub and a freewheel. You can find the whole wheel (already laced-up with spokes and everything) here: Amazon.com: Sun Rhyno Lite XL / NuVinci Nuvinci Gearless 26 x 1.75 36H Black/Black: Sports & Outdoors, but I found it to be cheaper to get the pieces individually. A couple of web sites have these hubs significantly cheaper than most: Tree Fort Bikes Online Bicycle Shop - Mountain & Road Bicycles | Repair & Tune-Up Sales in Ypsilanti, Michigan near Ann Arbor and Motorized Bicycles Detail Page. (There are probably other good websites, please chime in if you know of any). Then look for an english-threaded (not metric!) 16- or 18-tooth freewheel to put on the hub. I found my freewheel at a local bike shop, I'm using a 16-tooth. Then lace your hub into a wheel.
Attached Thumbnails
Click image for larger version

Name:	Step1a.jpg
Views:	195
Size:	491.7 KB
ID:	19337
Reply With Quote
  #2
Old 01-23-2010, 12:41 PM
Cannonfish's Avatar
Cannonfish Cannonfish is offline
Motorized Bicycle Elite Member

Join Date: Apr 2009
Location: Maryland
Posts: 104
Thanks: 0
Thanked 0 Times in 0 Posts
Default NuVinci installation on a Micargi cruiser

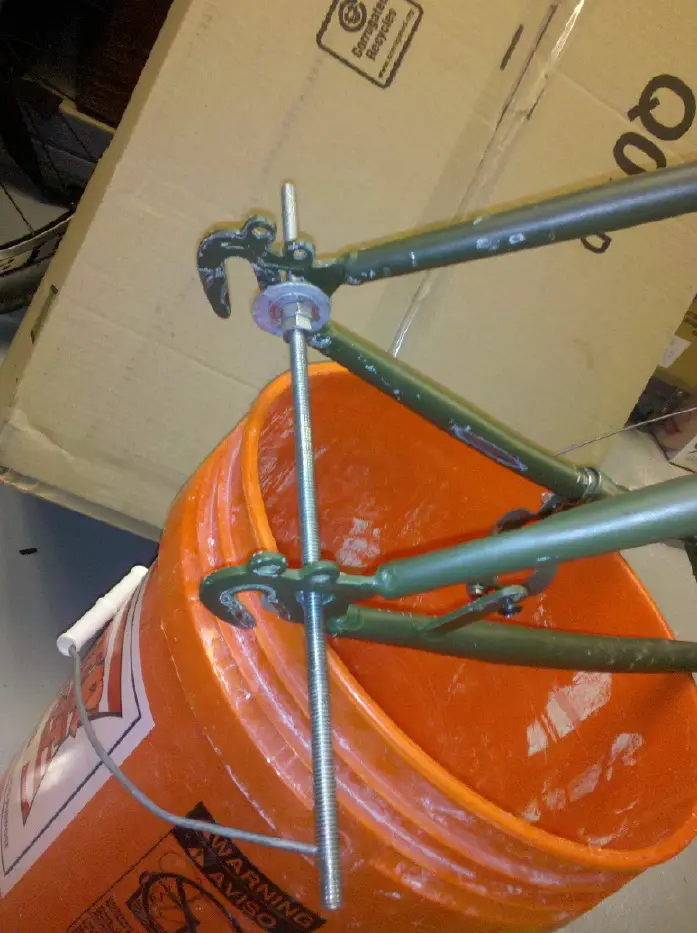

Step two - measure the rear triangles of your frame. My Micargi came with a rear dropout-to-dropout measurement of about 115mm. The Nuvinci hub is somewhere around 140mm wide (plus I added a rollerbrake, which made it even wider). It wouldn't fit no matter how hard I tried to cram it into my frame. One method of spreading the rear triangles is described in this website: Bicycle Frame Spacing. Since I already had an engine, shift kit, gas tank, etc installed on my frame, I didn't want to take the time to remove them in order to use this technique - instead I used a 12" piece of all-thread, two nuts, and some large washers. The picture shows the placement of the all-thread, and then I just turned the nuts, gradually opening up the frame. Note - only do this if you have a steel frame!! (see if a magnet will stick to your frame first). Aluminum frames apparently do not bend well.
Attached Thumbnails
Click image for larger version

Name:	Step2.jpg
Views:	96
Size:	274.5 KB
ID:	19338
Reply With Quote
  #3
Old 01-23-2010, 12:43 PM
Cannonfish's Avatar
Cannonfish Cannonfish is offline
Motorized Bicycle Elite Member

Join Date: Apr 2009
Location: Maryland
Posts: 104
Thanks: 0
Thanked 0 Times in 0 Posts
Default NuVinci installation on a Micargi cruiser

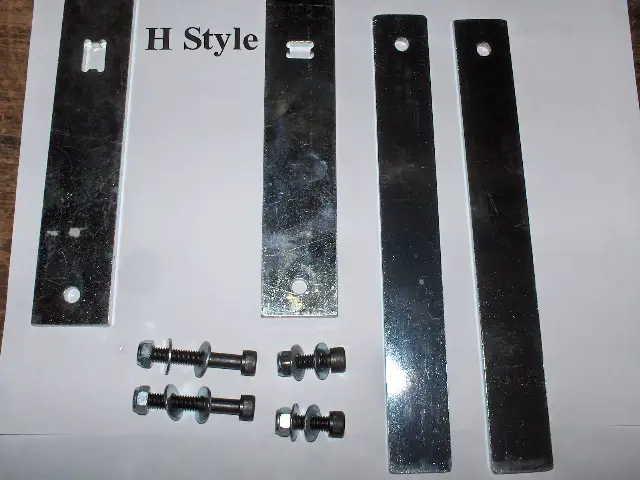

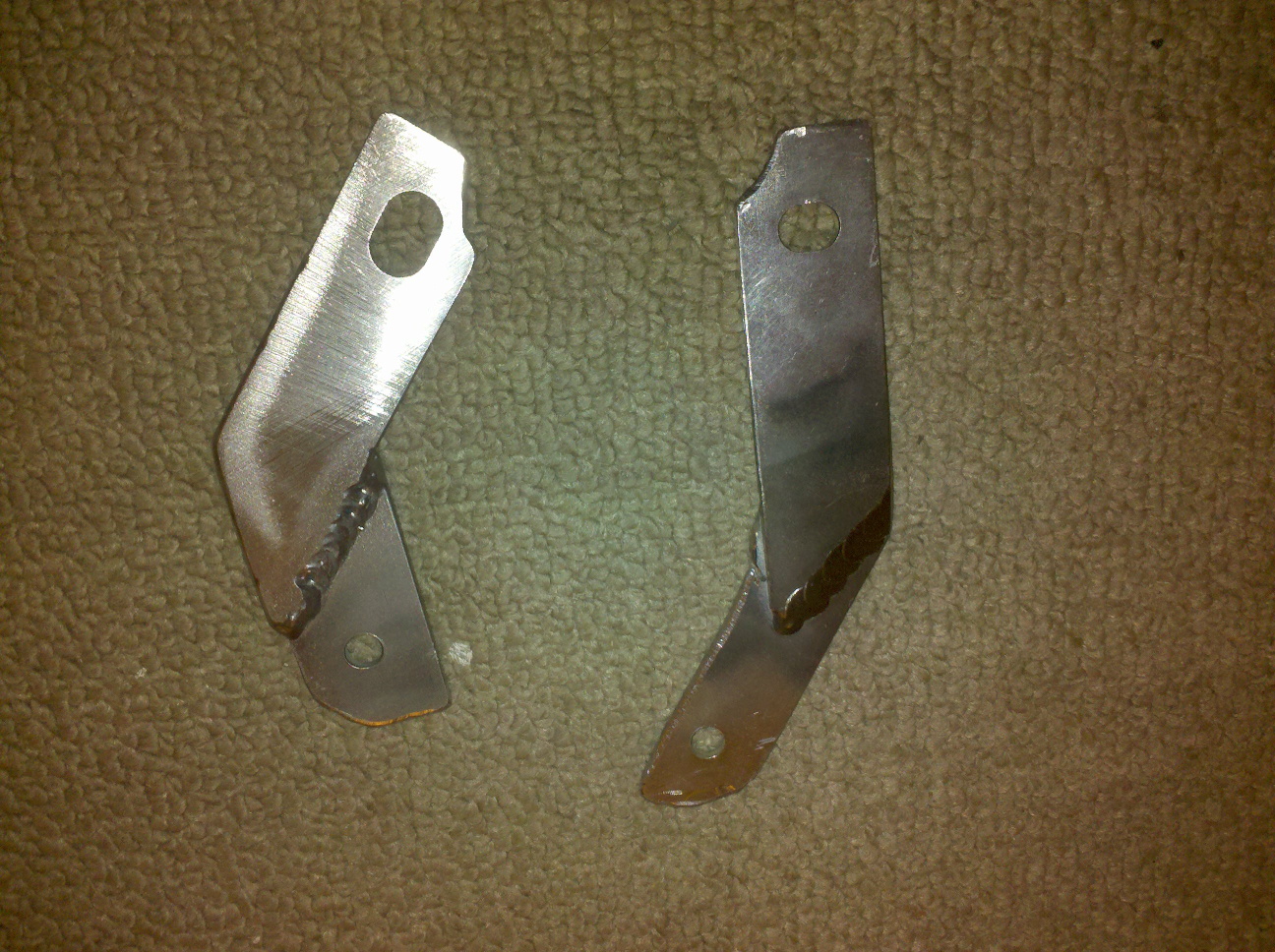

Step three - buy a pair of "torsion bars" from this website: Motorized Bicycles Detail Page, or else fabricate something similar (the first photo is from Staton's website). I've read several stories on other forums from people whose Nuvincis had torn up their rear dropouts. The Nuvinci definitely places a lot of torque on those drop-outs - relieve this stress by attaching one of these torsion bar on each side (basically an arm like on a coaster-brake). The pictures show how I cut and re-welded the bars to fit the "diagonal" drop-outs on the Micargi cruiser. If your drop-outs are horizontal (like the ones on a Felt bike for example), then you should be able to use Staton's torsion bars without much modification.
Attached Thumbnails
Click image for larger version

Name:	Step3a.jpg
Views:	72
Size:	93.3 KB
ID:	19339   Click image for larger version

Name:	Step3b.jpg
Views:	88
Size:	602.2 KB
ID:	19340   Click image for larger version

Name:	Step3c.jpg
Views:	224
Size:	596.9 KB
ID:	19341
Reply With Quote
  #4
Old 01-23-2010, 12:44 PM
Cannonfish's Avatar
Cannonfish Cannonfish is offline
Motorized Bicycle Elite Member

Join Date: Apr 2009
Location: Maryland
Posts: 104
Thanks: 0
Thanked 0 Times in 0 Posts
Default NuVinci installation on a Micargi cruiser

Step four - assembling and installing the hub shifter interface on the Nuvinci was challenging, mainly just because I'm not very good at following instructions. I couldn't get the hub interface (where the control cables hook up to the hub) connected properly, and I ended up breaking it in the process. So I tried every website I could think of for replacement pieces with no luck, until I eventually called Fallbrook Technologies directly and spoke with a rep named Mia - I explained what I had done, and she just mailed the new pieces to me, no charge! What a cool lady. Anyway, take the time to read the instructions before you get too "energetic" with your installation. If you do break something, use this parts catalog (http://www.fallbrooktech.com/docs/Parts_CatalogV5.pdf) and just call them directly to order.
Reply With Quote
  #5
Old 01-23-2010, 12:45 PM
Cannonfish's Avatar
Cannonfish Cannonfish is offline
Motorized Bicycle Elite Member

Join Date: Apr 2009
Location: Maryland
Posts: 104
Thanks: 0
Thanked 0 Times in 0 Posts
Default NuVinci installation on a Micargi cruiser

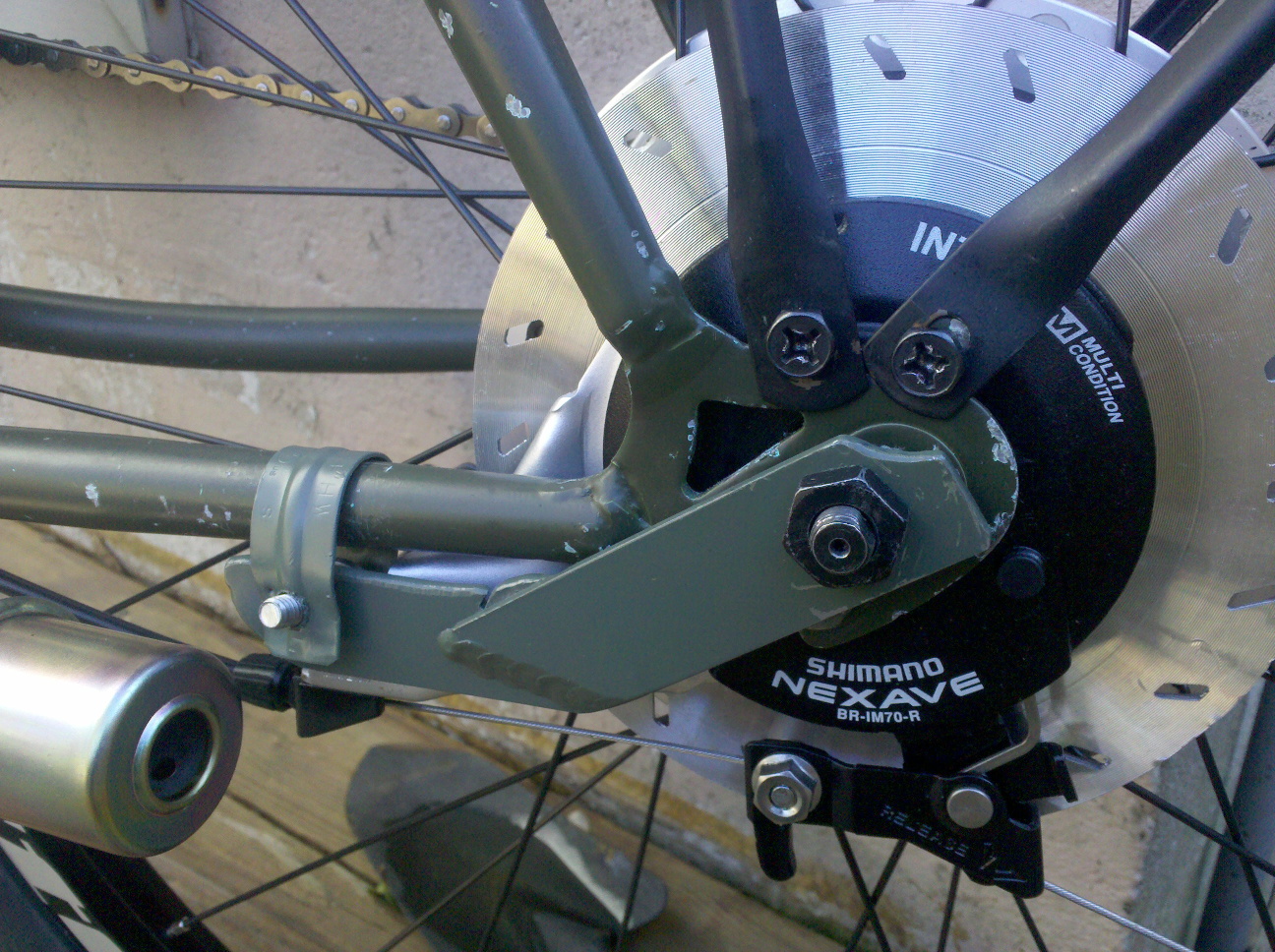

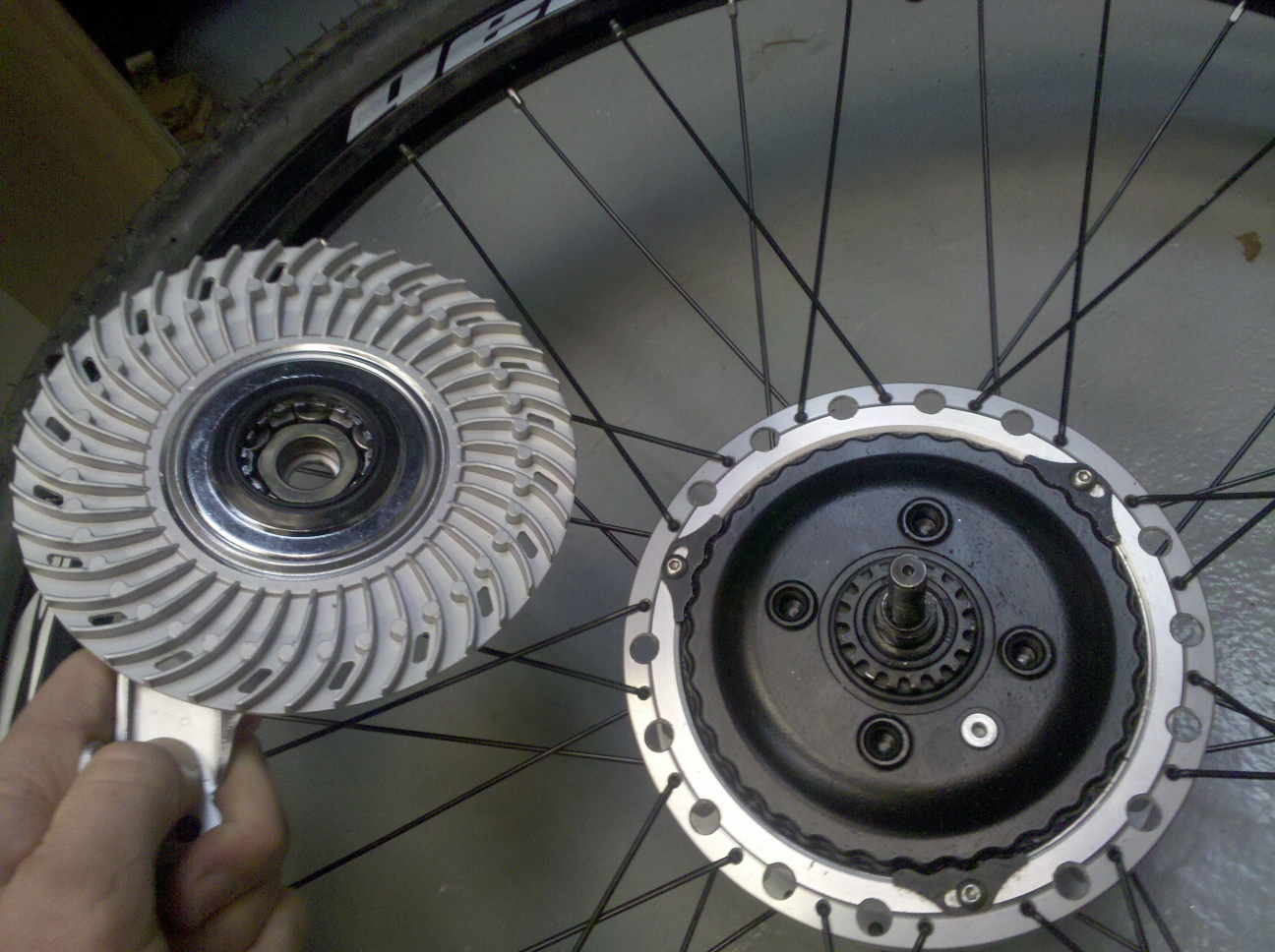

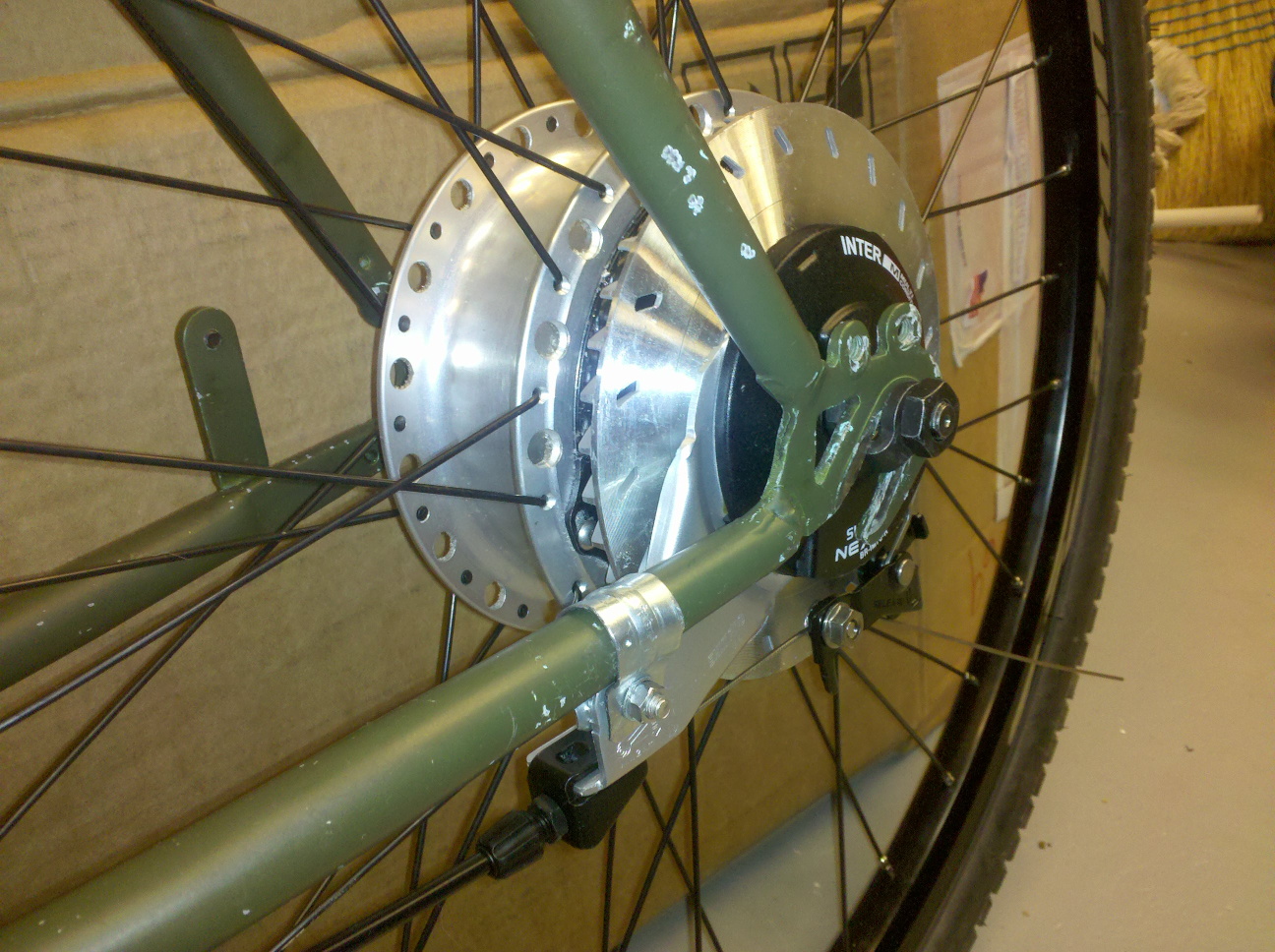

Step five - if your bike already has mounts for either disc-brakes or caliper-brakes, then you'll still be able to use them (the Nuvinci comes with a standard six-hole disc brake adapter, and of course caliper brakes don't care what type of hub you are using). If you have a cheap-o Micargi like mine, and you don't have either disc-brake mounts or caliper-brake mounts on your frame - then buy a roller-brake. These come in two levels from Shimano: the BR-IM41-R and the BR-IM70-R. The 70-R has bigger cooling fins and supposedly better stopping power, although it is about twice as expensive as the 41-R. Roller-brakes seem to be the bastard step-children of the brake world (no one talks about them), but I've found the 70-R to work really well. I have it connected using a dual brake lever, along with a mechanical (not hydraulic!) disc brake on the front wheel. Look at the pictures - note that this roller-brake is actually built by Shimano for their "Nexus" internal-geared hubs, but it fits perfectly on the left-side splines of the Nuvinci hub.

What a great idea they had, to make this hub compatible with just about every style of rear brake possible (except coaster of course).
Attached Thumbnails
Click image for larger version

Name:	Step5a.jpg
Views:	212
Size:	516.1 KB
ID:	19342   Click image for larger version

Name:	Step5b.jpg
Views:	212
Size:	495.0 KB
ID:	19343
Reply With Quote
  #6
Old 01-23-2010, 12:47 PM
Cannonfish's Avatar
Cannonfish Cannonfish is offline
Motorized Bicycle Elite Member

Join Date: Apr 2009
Location: Maryland
Posts: 104
Thanks: 0
Thanked 0 Times in 0 Posts
Default NuVinci installation on a Micargi cruiser

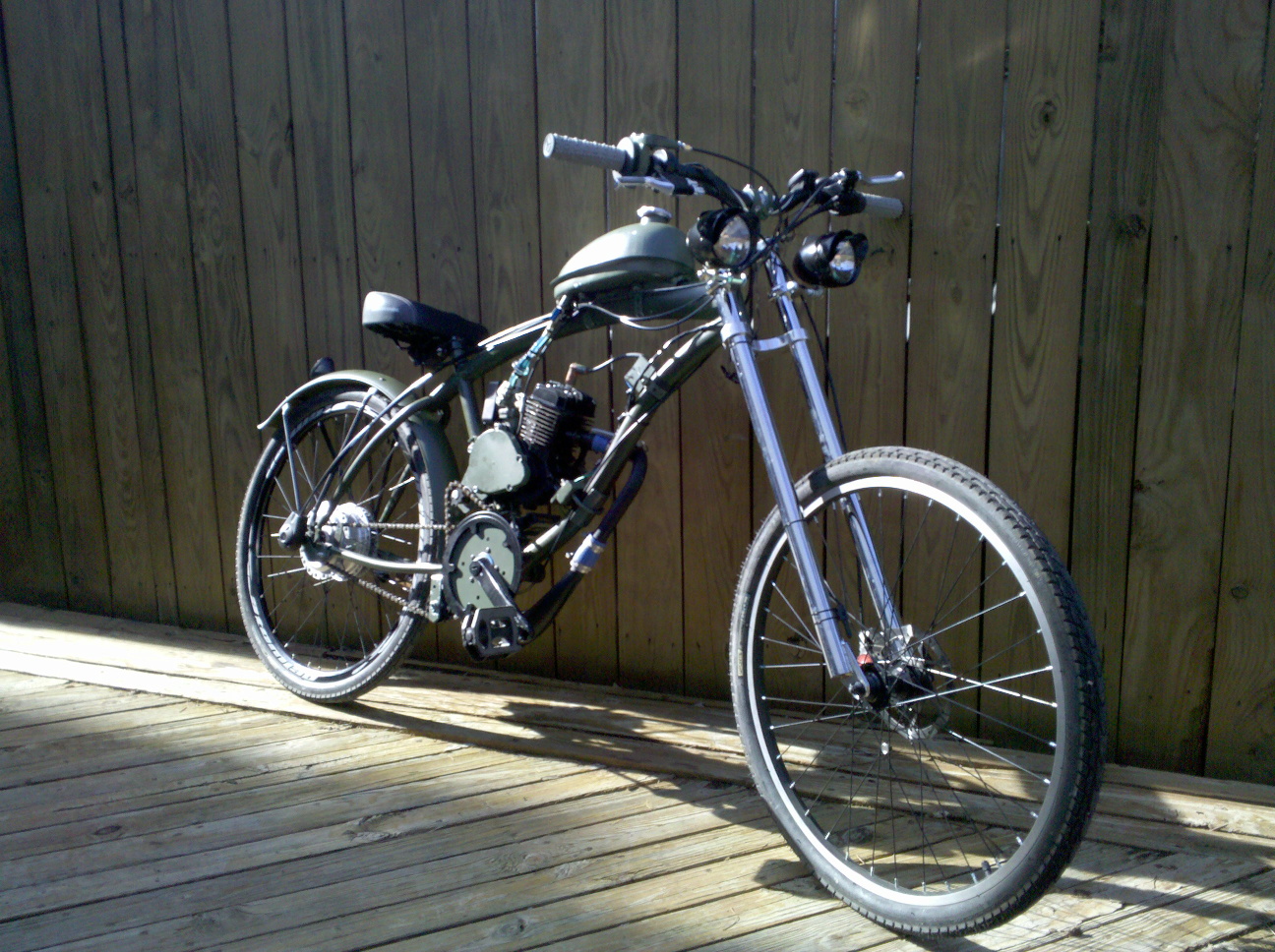

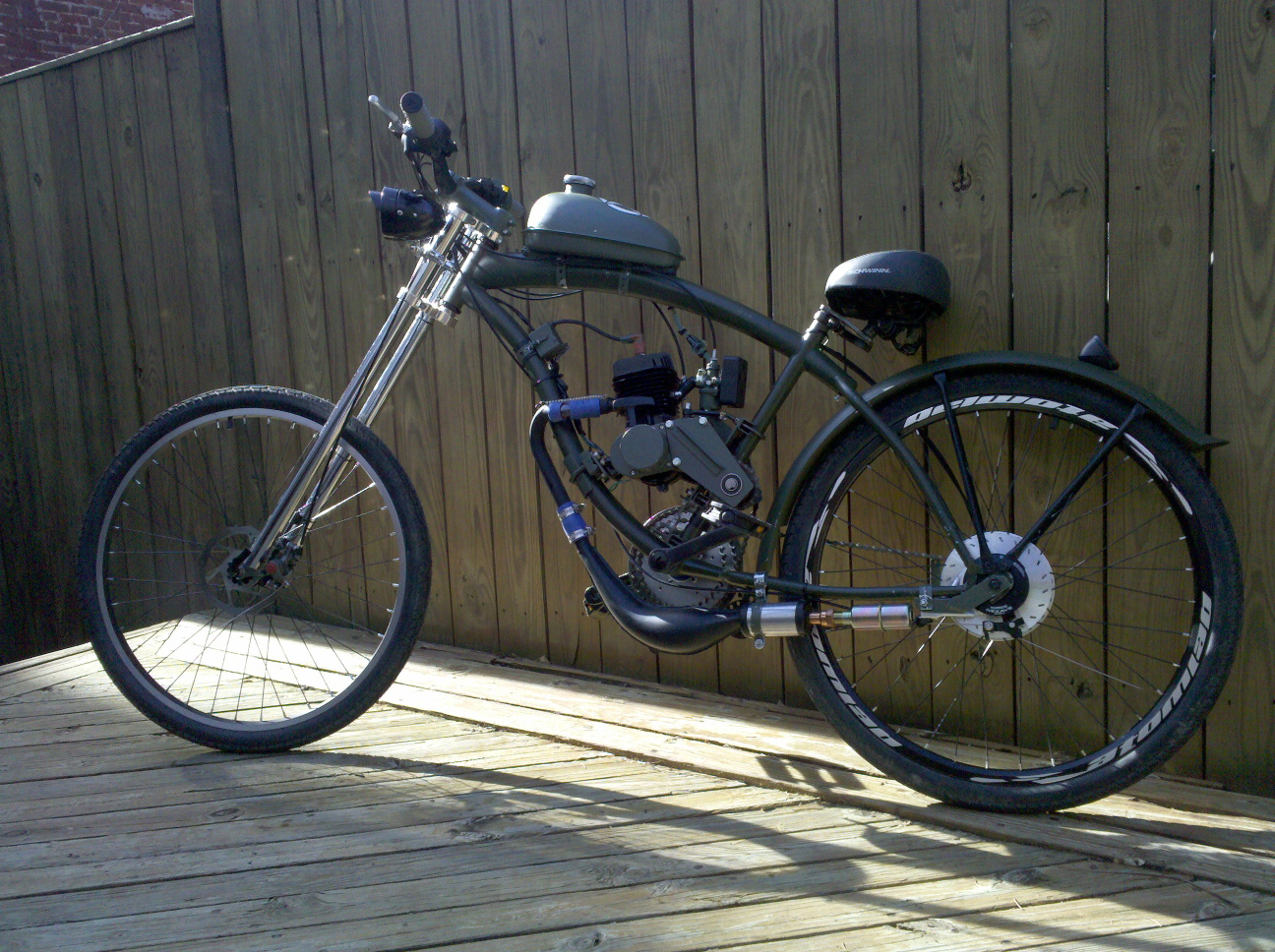

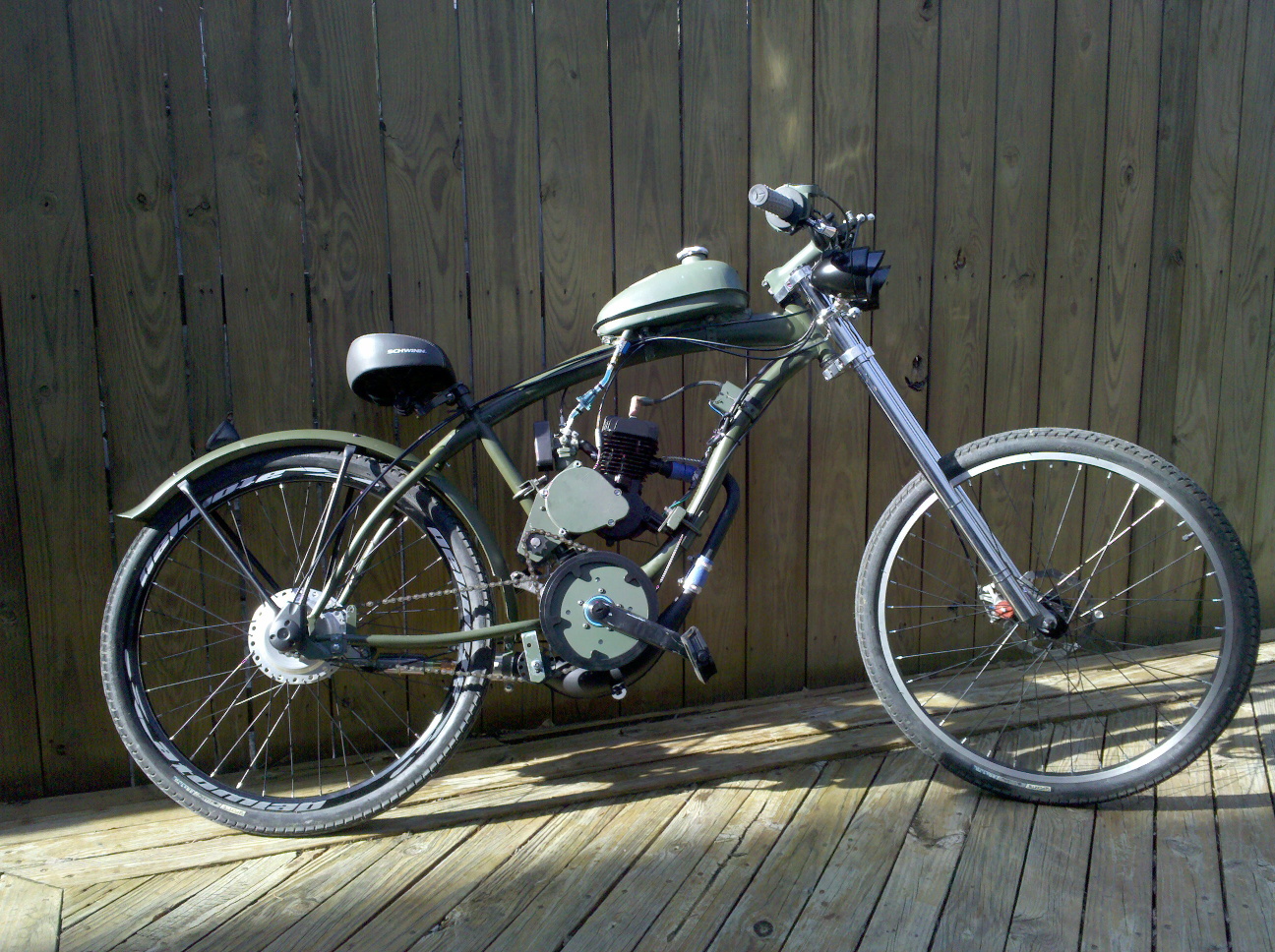

Step six - get a SBP shifter kit (can't think of any other reason to justify spending all that cash on a Nuvinci). The pictures below are of my finished installation. Good luck!!
Attached Thumbnails
Click image for larger version

Name:	Step6a.jpg
Views:	562
Size:	654.9 KB
ID:	19344   Click image for larger version

Name:	Step6b.jpg
Views:	249
Size:	594.7 KB
ID:	19345   Click image for larger version

Name:	Step6c.jpg
Views:	233
Size:	629.7 KB
ID:	19346
Reply With Quote
  #7
Old 01-23-2010, 03:22 PM
azbill's Avatar
azbill azbill is offline
Motorized Bicycle Elite Member

Join Date: May 2008
Location: Fountain Hills, Arizona
Posts: 3,330
Thanks: 48
Thanked 21 Times in 21 Posts
Default Re: NuVinci installation on a Micargi cruiser

nice thread
answers a lot of questions people might have
__________________
Bill

Intelligence is learning from your own mistakes,
Wisdom is learning from the mistakes of others

EZ Motorbike Dealer - Fountain Hills, AZ
www.ezmotorbike.com
EZ Motorbike of Fountain Hills
azgrampa@gmail.com
Reply With Quote
  #8
Old 03-07-2010, 11:20 AM
thirstybike thirstybike is offline
Motorized Bicycle Member

Join Date: Jan 2010
Location: Augusta, Ga
Posts: 20
Thanks: 1
Thanked 0 Times in 0 Posts
Default Re: NuVinci installation on a Micargi cruiser

I hope this isn't a dumb question but does the peddle crank set drive the Nuvinci as well? And if so are you using the same size freewheel and does the peddle cadence keep up with the engine at any speed?
