How to wire Chinese 2-Stroke bicycle engine

2 stroke motorized bicycle engine kits need careful installation and setup, find out how from our professionals here!


Reply

Thread Tools Display Modes
  #1
Old 01-17-2008, 08:03 AM
paul's Avatar
paul paul is offline
Administrator

Join Date: Dec 2007
Location: St. Croix US Virgin Islands
Posts: 6,525
Thanks: 20
Thanked 168 Times in 126 Posts
Default How to wire Chinese 2-Stroke bicycle engine

my directions were kinda vague so this is how i did it

cdi has a black wire (ground) and a blue/green wire (pos)
engine has a black wire (ground) blue/green wire(pos) and a white wire which is positive for lights ect. 6volt
kill switch has 2 wires red and black

1. connect the blue/green wire from engine to blue/green on cdi and your red wire from the kill switch all togather.

2. connect your black wire from the engine to the black wire on the cdi and the black wire from the kill switch all together.

3. insulate all the wires.

$. the white wire is for a 6v accessory such as a light. if you do not use the white wire make sure you cap and insulate it for if it touches the frame it could short out whole system.

hope this helps
Reply With Quote
The Following User Says Thank You to paul For This Useful Post:
  #2
Old 02-07-2008, 11:31 AM
deacon's Avatar
deacon deacon is offline
minor bike philosopher

Join Date: Jan 2008
Location: north carolina
Posts: 8,082
Thanks: 0
Thanked 10 Times in 10 Posts
Default Re: How to wire Chinese 2-Stroke

I wired my kill switch directly back to the engine. Just wrapped it around a bolt. I like yours better I didn't know it that ground would do it so thanks next time I need to rewire I'll change it.
__________________
My posts have entertainment value only. A bike ain't yours till it has your blood on it. Then it owns you.
Reply With Quote
  #3
Old 03-19-2008, 09:42 AM
ran49's Avatar
ran49 ran49 is offline
Motorized Bicycle Elite Member

Join Date: Mar 2008
Location: So.In.
Posts: 186
Thanks: 0
Thanked 2 Times in 1 Post
Default Re: How to wire Chinese 2-Stroke bicycle engine

Getting ready to wire in the kill switch.I see above it is suggested to:
1. connect the blue/green wire from engine to blue/green on cdi and your red wire from the kill switch all together.

2. connect your black wire from the engine to the black wire on the cdi and the black wire from the kill switch all together.

3. insulate all the wires.

How does this work to kill the engine when you still have an unbroken circuit
between cdi and engine?Forgive me if this is a stupid question. thanks,Ron
Reply With Quote
  #4
Old 03-19-2008, 10:21 AM
deacon's Avatar
deacon deacon is offline
minor bike philosopher

Join Date: Jan 2008
Location: north carolina
Posts: 8,082
Thanks: 0
Thanked 10 Times in 10 Posts
Default Re: How to wire Chinese 2-Stroke bicycle engine

When you press the kill switch you complete the circuit before it goes to the cdi. there for it never gets there with the kill switch closed.
__________________
My posts have entertainment value only. A bike ain't yours till it has your blood on it. Then it owns you.
Reply With Quote
  #5
Old 03-19-2008, 10:25 AM
paul's Avatar
paul paul is offline
Administrator

Join Date: Dec 2007
Location: St. Croix US Virgin Islands
Posts: 6,525
Thanks: 20
Thanked 168 Times in 126 Posts
Default Re: How to wire Chinese 2-Stroke bicycle engine

i beleive all the kill does is ground out your circuit so the engine is killed
Reply With Quote
  #6
Old 02-09-2011, 03:21 PM
Pianosold Pianosold is offline
Motorized Bicycle Newbie

Join Date: Feb 2011
Location: UK
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: How to wire Chinese 2-Stroke bicycle engine

Been trying to get the answer to this for ages but Chinese vendor keeps re-sending the same instructions that don't help!!

My kit only has two wires from the engine: Black and White. The CDI has Black and Blue and the K/S has Black and Yellow.

All the instructions I've seen have three wires from the engine - White being redundant unless you wire a lamp.

Any help as to which goes where would be great before I send this thing to Jesus.

Rob

Last edited by Pianosold; 02-09-2011 at 03:41 PM.
Reply With Quote
  #7
Old 02-09-2011, 03:28 PM
2door's Avatar
2door 2door is offline
Super Moderator

Join Date: Sep 2008
Location: Littleton, Colorado
Posts: 12,740
Thanks: 1
Thanked 586 Times in 467 Posts
Default Re: How to wire Chinese 2-Stroke bicycle engine

Quote:
Originally Posted by Pianosold View Post
Been trying to get the answer to this for ages but Chinese vendor keeps re-sending the same instructions that don't help!!

My kit only has two wires from the engine: Black and White. The CDI has Black and Blue and the K/S has Black and Yellow.

Any help much appreciated before I send this thing to Jesus.

Rob
What engine do you have? 2 cycle? 4 cycle? Brand name?
If it is a Chinese 2 stroke, the most common, something's wrong. Either the blue wire wasn't installed or it is coiled up inside the magneto cover.
Get back to us with more information so we can help you.

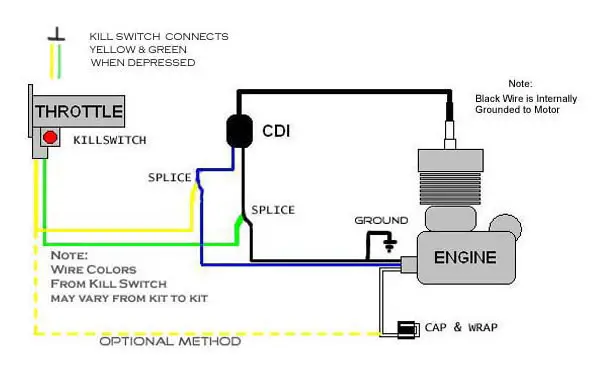

I've attached a wiring diagram for the 2 cycle engine but it won't help if the blue wire is not there or if you have a 4 stroke engine.
Tom
Attached Thumbnails
Click image for larger version

Name:	Wiring Diagram, 4.jpg
Views:	1013
Size:	55.1 KB
ID:	33318
__________________
Age and Treachery Will Always Triumph
Over Youth and Skill & "Charlie Don't Ride"
Reply With Quote
  #8
Old 02-09-2011, 04:52 PM
Pianosold Pianosold is offline
Motorized Bicycle Newbie

Join Date: Feb 2011
Location: UK
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: How to wire Chinese 2-Stroke bicycle engine

Thanks for this Tom. Don't know maker - it's YMX Zone (China) off Ebay. The engine is 2 stroke and I can't find any evidence of a blue wire having been installed under the mag cover.

Will sign in again 2morrow night (now 22.51!) but thanks again.

Rob
