Default 3 speed jack shaft

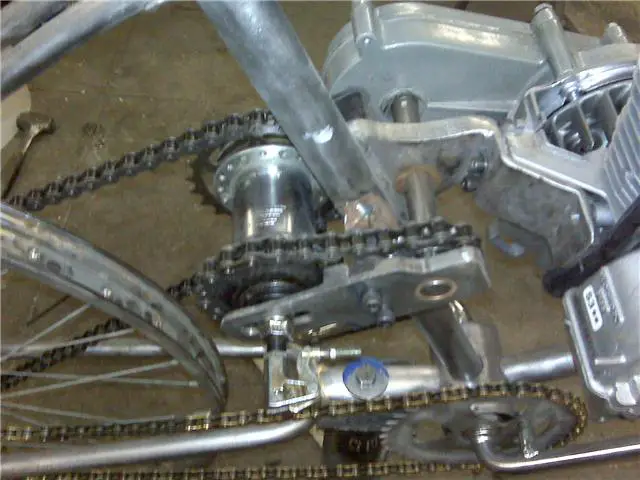

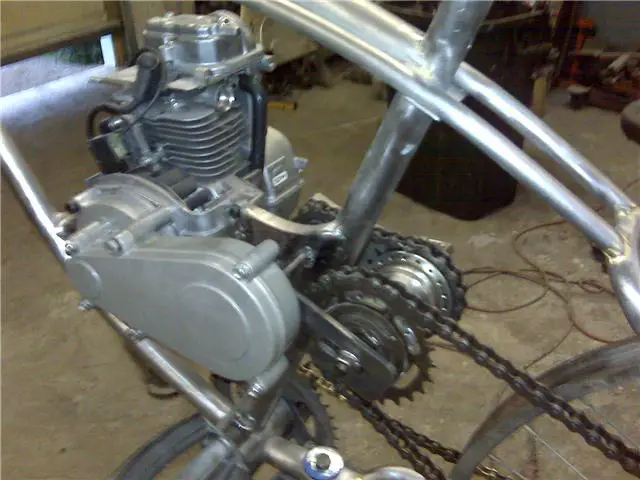

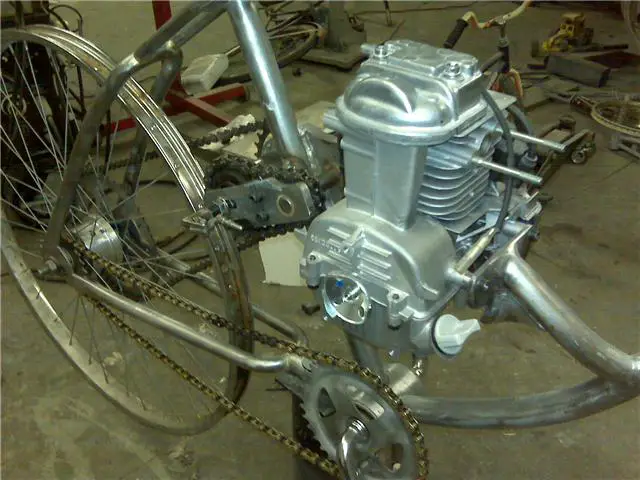

heres the drive for my 4 stroke build,
Attached Thumbnails
Click image for larger version

Name:	shifter.jpg
Views:	4625
Size:	47.4 KB
ID:	13586   Click image for larger version

Name:	shifter1.jpg
Views:	2553
Size:	56.1 KB
ID:	13587   Click image for larger version

Name:	shifter2.jpg
Views:	5131
Size:	47.3 KB
ID:	13588
Reply With Quote
  #2
Old 09-24-2009, 07:06 PM
diceman2004's Avatar
diceman2004 diceman2004 is offline
Motorized Bicycle Elite Member

Join Date: Aug 2009
Location: Kitchener , Ontario
Posts: 568
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: 3 speed jack shaft

pretty cool setup , have you done a 3 speed hub before , i,ll be keeping an eye on this one , curious to see how well the hub can take the abuse . how do you start the motor on this one ? ( your drive side of the 3 speed hub probably still coasts ) . is it gonna have a pull start ?

or is your next post gonna say ( homer simpson ) dohhhhh !!!!
Reply With Quote
  #3
Old 09-25-2009, 12:14 AM
markeatmark's Avatar
markeatmark markeatmark is offline
Motorized Bicycle Elite Member

Join Date: Jun 2009
Location: jacksonville NC
Posts: 182
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: 3 speed jack shaft

that is cool. looks like a lot of fine workmanship
Reply With Quote
  #4
Old 09-25-2009, 12:28 AM
bairdco's Avatar
bairdco bairdco is offline
a guy who makes cool bikes

Join Date: Aug 2009
Location: living the dream in southern california
Posts: 5,929
Thanks: 7
Thanked 131 Times in 101 Posts
Default Re: 3 speed jack shaft

is that a rollfast/ jc higgens frame with the middle tube removed?

Last edited by bairdco; 09-25-2009 at 12:29 AM. Reason: can't spell
Reply With Quote
  #5
Old 09-25-2009, 04:37 AM
spad4me's Avatar
spad4me spad4me is offline
Motorized Bicycle Elite Member

Join Date: Jan 2008
Location: Arizona Bullhead
Posts: 472
Thanks: 0
Thanked 2 Times in 1 Post
Default Re: 3 speed jack shaft

The double transmission set up is nice.
Dis you use something like this for the engine mounted one.
X7, FS529 New Cat-eye Pocketbike CVT transmission.
__________________
Motorized bicyclist
Reply With Quote
  #6
Old 09-25-2009, 06:12 AM
camlifter's Avatar
camlifter camlifter is offline
Motorized Bicycle Elite Member

Join Date: May 2009
Location: acme labs marion ohio
Posts: 1,034
Thanks: 0
Thanked 1 Time in 1 Post
Default Re: 3 speed jack shaft

the motor is pull start, the frame is a columbia from the 60's, the gear box is for a pocket bike. i think it should hold up well, the motor puts out much less tq than a person can put to the hub. it's just something i wanted to try, no free wheel crank, and the out put shaft of the gear box is now supported by 2 additional bearings, that should take care of the flexing problem of the hoot type gear box's, this one is a chain drive box.
Reply With Quote
  #7
Old 09-25-2009, 05:30 PM
bandito bandito is offline
.

Join Date: May 2009
Location: colorado
Posts: 783
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: 3 speed jack shaft

CAM the chain that drives the wheel, Why didnt you go straight to the shaft with a drive gear? It seems it would be simpler and less moving parts plus less loss of power. What was your thinking on this? Im thinking you did this for strength and to cure the shifting of parts maybe as you said, was this the sole reason?
Reply With Quote
  #8
Old 09-25-2009, 07:34 PM
camlifter's Avatar
camlifter camlifter is offline
Motorized Bicycle Elite Member

Join Date: May 2009
Location: acme labs marion ohio
Posts: 1,034
Thanks: 0
Thanked 1 Time in 1 Post
Default Re: 3 speed jack shaft

Quote:
Originally Posted by bandito View Post
CAM the chain that drives the wheel, Why didnt you go straight to the shaft with a drive gear? It seems it would be simpler and less moving parts plus less loss of power. What was your thinking on this? Im thinking you did this for strength and to cure the shifting of parts maybe as you said, was this the sole reason?
not sure what you mean. if i used gears from the gear box to the 3 speed hub that would reverse the direction. i'm using the 3 speed hub to get more reduction than the 3 to 1 box offers plus getting 3 speeds and no need for a free wheeling crank set. i should have it ready for a test drive in a few days.
Reply With Quote
  #9
Old 09-26-2009, 12:14 PM
Dan's Avatar
Dan Dan is offline
Staff

Join Date: May 2008
Location: Moosylvania
Posts: 11,099
Thanks: 177
Thanked 138 Times in 123 Posts
Default Re: 3 speed jack shaft

FANTISTICO CAM! Looking forward to more pics and updates. Really, very cleaver. I was just going to ask how you were going to address chain stretch but on 3rd view of your pics,.. wow, good job

(I wanted to do some thing like that but with clutches that engage at different RPM and freewheels. Would work like an automatic tranny)
__________________
=============================
Unkind is harder to type then kind

http://www.youtube.com/watch?v=y6Sxv-sUYtM


I want 2 ride my bicycle
Reply With Quote
  #10
Old 09-26-2009, 05:45 PM
bandito bandito is offline
.

Join Date: May 2009
Location: colorado
Posts: 783
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: 3 speed jack shaft

OK cam let me be a little more precise, in pic 1 it clearly shows what Im asking. The shaft coming out of the gear box is only about 4 inches away from the drive chain that drives the wheel. Just curious as to why you didnt go to that shaft directly with the drive chain that drives the wheel. Pic 3 shows this very well also........nice fabrication and clean install.
